UFTA32W FT-A32W PANASONIC Fiber (thru-beam, wide beam type, 5 x 69 x 20mm, side sensing, bending radius R1, ..
UFTA32W
FT-A32W
FT-A32W
PANASONIC
Fiber (thru-beam, wide beam type, 5 x 69 x 20mm, side sensing, bending radius R1, 2m, IP40)
Optical fiber barrier, superflexible, wide detection beam: 32 mm. width span; detection range 3600 mm, bend radius 1mm (R1), length. 2m cables (cuttable), IP40, temp. range -40º/+55ºC
FT-A32W_Thru-beam type Fiber_Wide Beam Fiber_Wide Beam Fiber
Fiber - PANASONIC > WIDE BEAM type optical fibers - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | FT-A32W |
| Part Number | FT-A32W |
| Product | Thru-beam type Fiber |
| Details | Wide Beam Fiber |
| Product name | Wide Beam Fiber |
| Item | Specifications |
|---|---|
| Product Number | FT-A32W |
| Part Number | FT-A32W |
| Sensing mode | Thru-beam type |
| Fiber type | Wide beam |

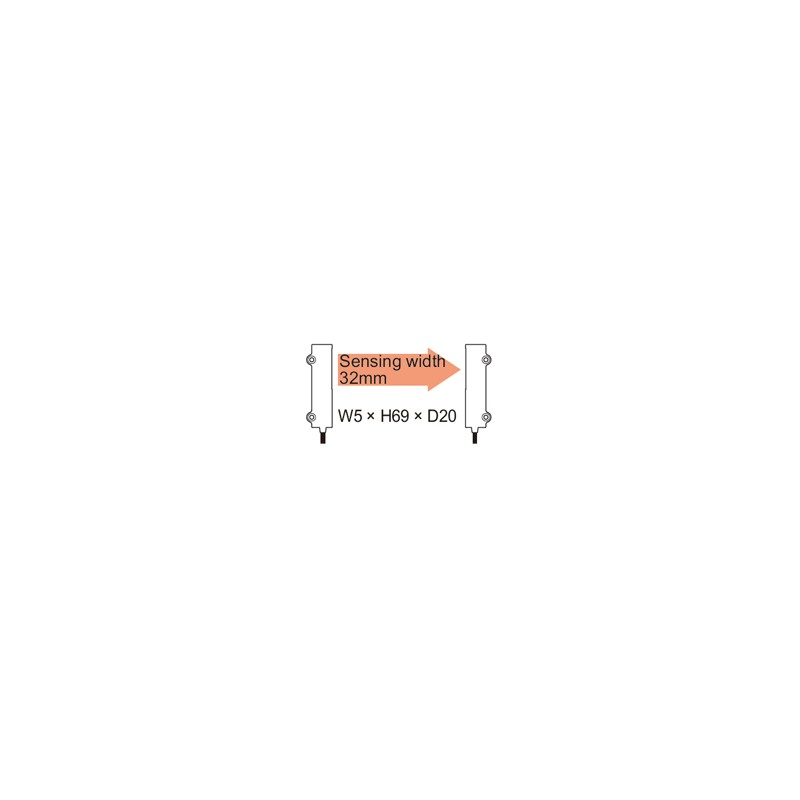

| Fiber head dia. | Sensing width 32 mm |
| Fiber head length | W5 x H69 x D20 mm |
| With sleeve | No |
| Beam direction | Wide-area |
| Beam axis dia./ Spot diameter | 3.2 x 32 mm |
| Fiber cable length | 2 m |
| Allowable bending radius | R1 mm |
| Free-cut | Available |
| Semi-custom | Fiber length change |
| Mounting lens | Not available |
| Mounting protective tube | Not available |
| Application | General-purpose |
| Environmental resistance : Protection | IP40 |
| Environmental resistance : Ambient temperature MAX | 55 degrees |
| Environmental resistance : Ambient temperature MIN | -40 degrees |
| Sensing range（STD） | 3,600 mm 141.732 in (FX-500 series) |
| Sensing range（HYPR） | 3,600 mm 141.732 in (FX-500 series) |
| Sensing range（U-LG） | 3,600 mm 141.732 in (FX-500 series) |
| Sensing range（LONG） | 3,600 mm 141.732 in (FX-500 series) |
| Sensing range（FAST） | 3,600 mm 141.732 in (FX-500 series) |
| Sensing range（H-SP） | 3,000 mm 118.110 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Datasheet 1: FTA32W - FT-A32W | FT-A32W | 4 Mbytes |
|
