UFTAL05 FT-AL05 PANASONIC Fiber (thru-beam, array type, 5 x 15 x 15mm, side sensing, bending radius R2, 2m, ..
UFTAL05
FT-AL05
FT-AL05
PANASONIC
Fiber (thru-beam, array type, 5 x 15 x 15mm, side sensing, bending radius R2, 2m, IP40)
Barrier fiber optics, in array (5.5 mm. width), detection range. 2300 mm., bend radius 2mm (R2), length. 2m cables (cuttable), IP40, temp. range -55º/+80ºC
FT-AL05_Thru-beam type Fiber_Wide Beam Fiber_Wide Beam Fiber
Fiber - PANASONIC > WIDE BEAM type optical fibers - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | FT-AL05 |
| Part Number | FT-AL05 |
| Product | Thru-beam type Fiber |
| Details | Wide Beam Fiber |
| Product name | Wide Beam Fiber |
| Item | Specifications |
|---|---|
| Product Number | FT-AL05 |
| Part Number | FT-AL05 |
| Sensing mode | Thru-beam type |
| Fiber type | Array |

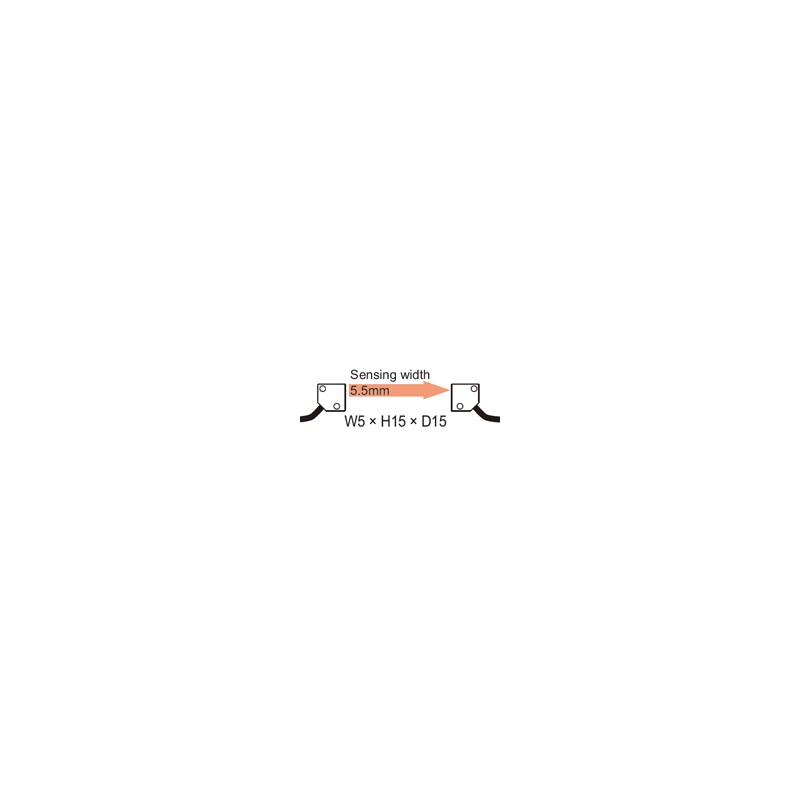

| Fiber head dia. | Sensing width 5.5 mm |
| Fiber head length | W5 x H15 x D15 mm |
| With sleeve | No |
| Beam direction | Wide-area |
| Beam axis dia./ Spot diameter | 0.25 x 5.5 mm |
| Fiber cable length | 2 m |
| Allowable bending radius | R2 mm |
| Free-cut | Available |
| Semi-custom | Fiber length change |
| Mounting lens | Not available |
| Mounting protective tube | Not available |
| Application | General-purpose |
| Environmental resistance : Protection | IP40 |
| Environmental resistance : Ambient temperature MAX | 80 degrees |
| Environmental resistance : Ambient temperature MIN | -55 degrees |
| Sensing range（STD） | 860 mm 33.858 in (FX-500 series) |
| Sensing range（HYPR） | 2,300 mm 90.551 in (FX-500 series) |
| Sensing range（U-LG） | 1,550 mm 61.024 in (FX-500 series) |
| Sensing range（LONG） | 1,500 mm 59.055 in (FX-500 series) |
| Sensing range（FAST） | 500 mm 19.685 in (FX-500 series) |
| Sensing range（H-SP） | 170 mm 6.693 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Datasheet 1: FTAL05 - FT-AL05 | FT-AL05 | 4 Mbytes |
|
