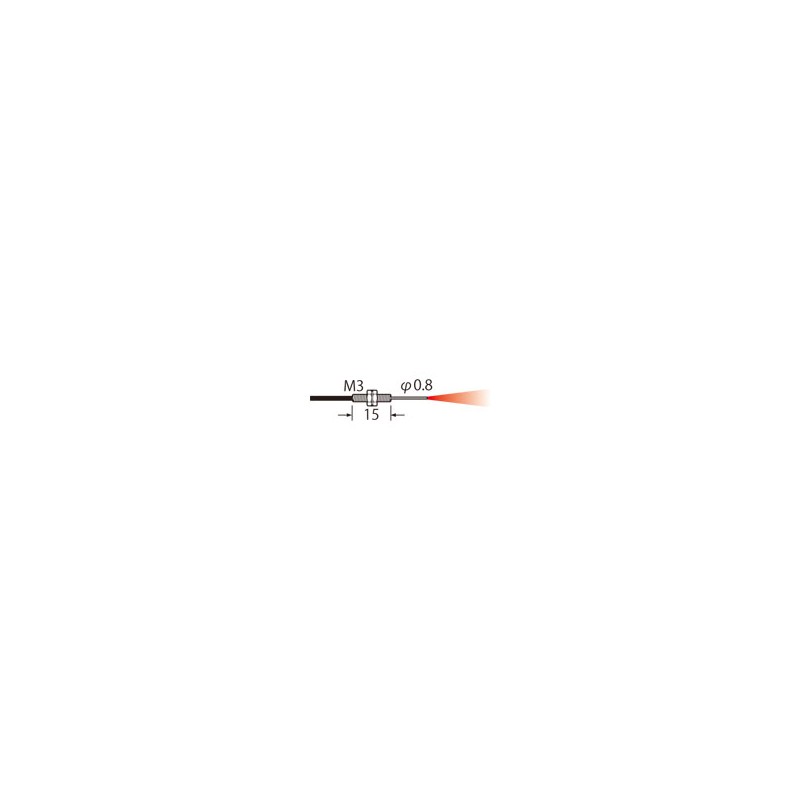

UFDEG30S FD-EG30S PANASONIC Fiber (reflective, coaxial, sleeve 15mm, ø 0.8mm, M3, 1m, IP40)
UFDEG30S
FD-EG30S
PANASONIC
Fiber (reflective, coaxial, sleeve 15mm, ø 0.8mm, M3, 1m, IP40)
Reflex fiber optics. direct, M3, high precision, concentrated beam (small spot), with sleeve (cannula, ø0.8x15mm), curved radius. 4mm (R4), detection range. 170mm (FX500), long. 1m, IP40, temp. range -40/+70ºC
FD-EG30S_Reflective type Fiber_Sleeve Fiber_Sleeve type Fiber
Fiber - PANASONIC > TUBE type optical fibers - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | FD-EG30S |
| Part Number | FD-EG30S |
| Product | Reflective type Fiber |
| Details | Sleeve type Fiber |
| Product name | Sleeve Fiber |
| Item | Specifications |
|---|---|
| Product Number | FD-EG30S |
| Part Number | FD-EG30S |
| Sensing mode | Reflective type |
| Fiber type | Sleeve type Ultra-small diameter |
| Fiber head dia. | M3 |
| Fiber head length | 15 mm |
| With sleeve | Yes |
| Sleeve dia. | dia. 0.8 mm |
| Sleeve length | 15 mm |
| Beam direction | Top-view |
| Fiber cable length | 1 m |
| Allowable bending radius | R4 mm |
| Free-cut | Not available |
| Mounting lens | Not available |
| Mounting protective tube | Not available |
| Application | General-purpose |
| Environmental resistance : Protection | IP40 |
| Environmental resistance : Ambient temperature MAX | 70 degrees |
| Environmental resistance : Ambient temperature MIN | -40 degrees |
| Sensing range（STD） | 50 mm 1.969 in (FX-500 series) |
| Sensing range（HYPR） | 170 mm 6.693 in (FX-500 series) |
| Sensing range（U-LG） | 110 mm 4.331 in (FX-500 series) |
| Sensing range（LONG） | 80 mm 3.150 in (FX-500 series) |
| Sensing range（FAST） | 30 mm 1.181 in (FX-500 series) |
| Sensing range（H-SP） | 9 mm 0.354 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Datasheet 1: FDEG30S - FD-EG30S | 4 Mbytes |
|
