UFDV30 FD-V30 PANASONIC Fiber (reflective, cylindrical, ø 3mm, side-view, bending radius R2, 2m, IP30)
UFDV30
FD-V30
FD-V30
PANASONIC
Fiber (reflective, cylindrical, ø 3mm, side-view, bending radius R2, 2m, IP30)
Fiber optic Flexible direct reflection, cylindrical, ø 3mm, side sensing, bend radius R2, 2m, IP30
FD-V30_Reflective type Fiber_Sleeve Fiber_Sleeve type Fiber
Fiber - PANASONIC > TUBE type optical fibers - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | FD-V30 |
| Part Number | FD-V30 |
| Product | Reflective type Fiber |
| Details | Sleeve type Fiber |
| Product name | Sleeve Fiber |
| Item | Specifications |
|---|---|
| Product Number | FD-V30 |
| Part Number | FD-V30 |
| Sensing mode | Reflective type |
| Fiber type | Sleeve type |

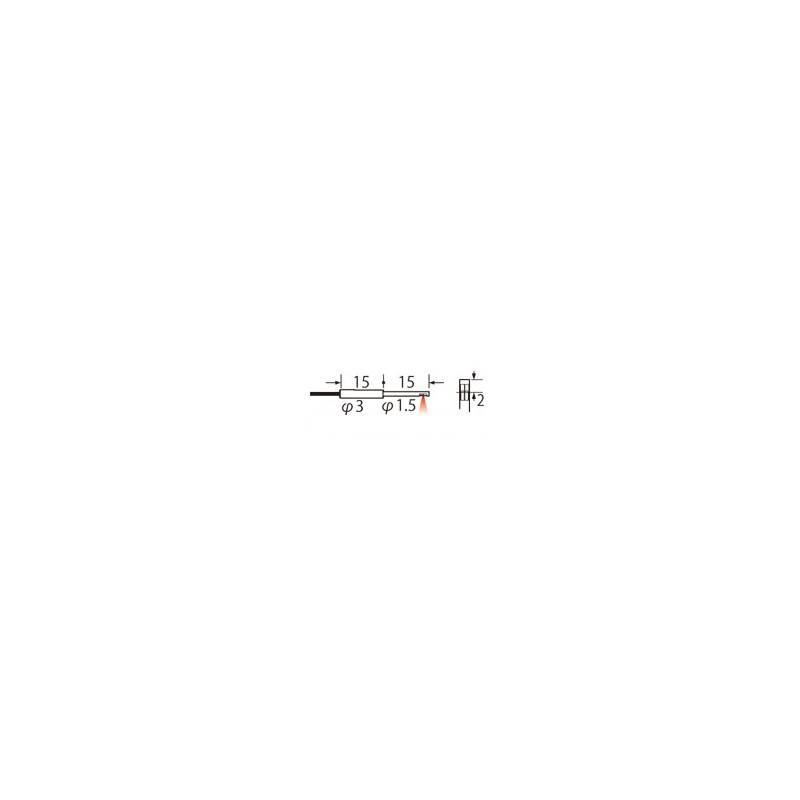

| Fiber head dia. | dia. 3 mm |
| Fiber head length | 15 mm |
| With sleeve | Yes |
| Sleeve dia. | dia. 1.5 mm |
| Sleeve length | 15 mm |
| Beam direction | Side-view |
| Fiber cable length | 2 m |
| Allowable bending radius | R2 mm |
| Free-cut | Available |
| Mounting lens | Not available |
| Mounting protective tube | Not available |
| Application | General-purpose |
| Environmental resistance : Protection | IP30 |
| Environmental resistance : Ambient temperature MAX | 80 degrees |
| Environmental resistance : Ambient temperature MIN | -55 degrees |
| Sensing range（STD） | 65 mm 2.559 in (FX-500 series) |
| Sensing range（HYPR） | 240 mm 9.449 in (FX-500 series) |
| Sensing range（U-LG） | 130 mm 5.118 in (FX-500 series) |
| Sensing range（LONG） | 120 mm 4.724 in (FX-500 series) |
| Sensing range（FAST） | 35 mm 1.378 in (FX-500 series) |
| Sensing range（H-SP） | 14 mm 0.551 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Datasheet 1: FDV30 - FD-V30 | FD-V30 | 4 Mbytes |
|
