FDH30KZ1VS FD-H30-KZ1V-S PANASONIC Fiber, Diffuse reflective, vacuum-resistant 300°C, bending radius R18, 1m
FDH30KZ1VS
FD-H30-KZ1V-S
PANASONIC
Fiber, Diffuse reflective, vacuum-resistant 300°C, bending radius R18, 1m
Fiber - PANASONIC > VACUUM-RESISTANT type optical fibers - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Product Number | FD-H30-KZ1V-S |
| Part Number | FD-H30-KZ1V-S |
| Product | Reflective type Fiber |
| Details | Vacuum-resistant Fiber |
| Product name | Vacuum-resistant Fiber |
| Item | Specifications |
|---|---|
| Product Number | FD-H30-KZ1V-S |
| Part Number | FD-H30-KZ1V-S |
| Sensing mode | Reflective type |
| Fiber type | Flat type |

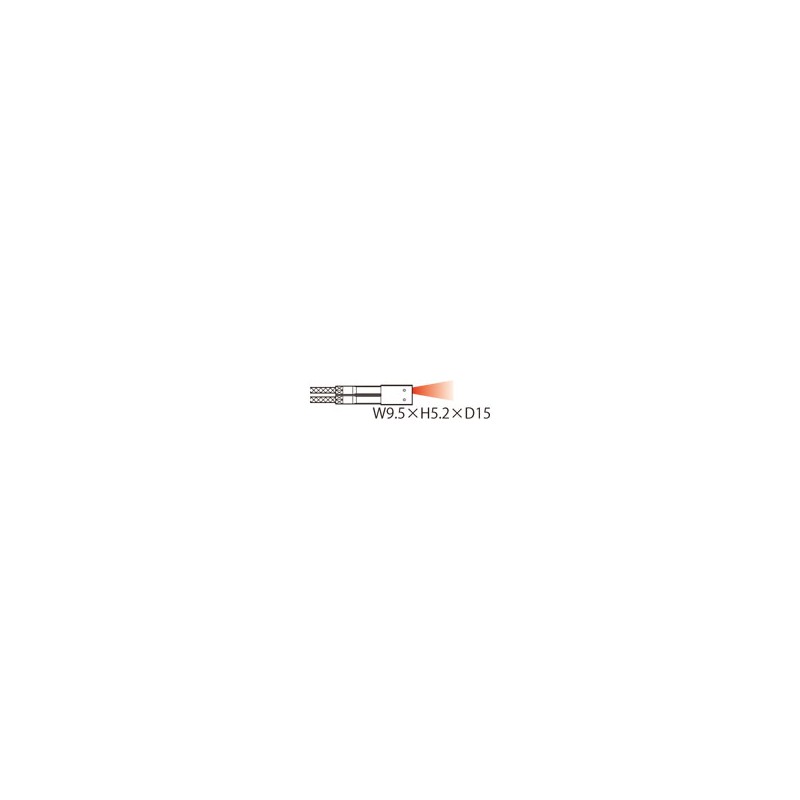

| Fiber head length | W9.5 x H5.2 x D15 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Fiber cable length | 1 m |
| Allowable bending radius | R18 mm |
| Free-cut | Not available |
| Semi-custom | Fiber length change |
| Mounting lens | Not available |
| Mounting protective tube | Not available |
| Application | Vacuum-resistant |
| Environmental resistance : Ambient temperature MAX | 300 degrees |
| Environmental resistance : Ambient temperature MIN | -30 degrees |
| Sensing range（STD） | 20 to 200 mm 0.787 to 7.874 in (FX-500 series) |
| Sensing range（HYPR） | 5 to 500 mm 0.197 to 19.685 in (FX-500 series) |
| Sensing range（U-LG） | 10 to 340 mm 0.394 to 13.386 in (FX-500 series) |
| Sensing range（LONG） | 15 to 270 mm 0.591 to 10.630 in (FX-500 series) |
| Sensing range（FAST） | 20 to 120 mm 0.787 to 4.724 in (FX-500 series) |
| Sensing range（H-SP） | 20 to 45 mm 0.787 to 1.772 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| Datasheet 1: FDH30KZ1VS - FDH30KZ1VS | FD-H30-KZ1V-S | 4 Mbytes |
 |
| Download general catalog |
|
