UFDH30L32VS FDH30L32VS FD-H30-L32V-S PANASONIC Fiber, Diffuse reflective, vacuum-resistant 300°C, bending ra..
UFDH30L32VS
FDH30L32VS
FD-H30-L32V-S
PANASONIC
Fiber, Diffuse reflective, vacuum-resistant 300°C, bending radius R18, 3m
Fiber Optics Direct Reflection, Vacuum, Detection Glass Substrate
Fiber - PANASONIC > VACUUM-RESISTANT type optical fibers - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | FD-H30-L32V-S |
| Part Number | FD-H30-L32V-S |
| Product | Convergent Reflective type Fiber |
| Details | Vacuum-resistant Fiber |
| Product name | Vacuum-resistant Fiber |
| Item | Specifications |
|---|---|
| Product Number | FD-H30-L32V-S |
| Part Number | FD-H30-L32V-S |
| Sensing mode | Convergent Reflective type |
| Fiber type | Glass substrate detection |

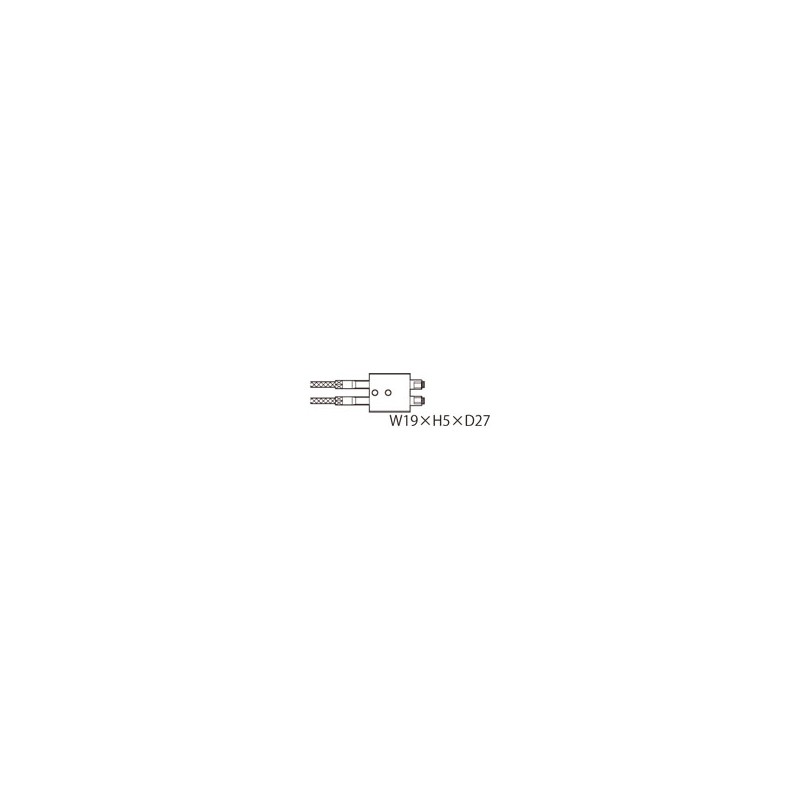

| Fiber head length | W19 x H5 x D27 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Fiber cable length | 3 m |
| Allowable bending radius | R18 mm |
| Free-cut | Not available |
| Semi-custom | Fiber length change |
| Mounting lens | Not available |
| Mounting protective tube | Not available |
| Application | Vacuum-resistant |
| Environmental resistance : Ambient temperature MAX | 300 degrees |
| Environmental resistance : Ambient temperature MIN | -30 degrees |
| Sensing range（STD） | 0 to 8 mm 0 to 0.315 in (FX-500 series) |
| Sensing range（HYPR） | 0 to 18 mm 0 to 0.709 in (FX-500 series) |
| Sensing range（U-LG） | 0 to 12 mm 0 to 0.472 in (FX-500 series) |
| Sensing range（LONG） | 0 to 10 mm 0 to 0.394 in (FX-500 series) |
| Sensing range（FAST） | 0 to 5.5 mm 0.217 in (FX-500 series) |
| Sensing range（H-SP） | 1.5 to 3 mm 0.059 to 0.118 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Datasheet 1: FDH30L32VS - FDH30L32VS | FD-H30-L32V-S | 4 Mbytes |
|
