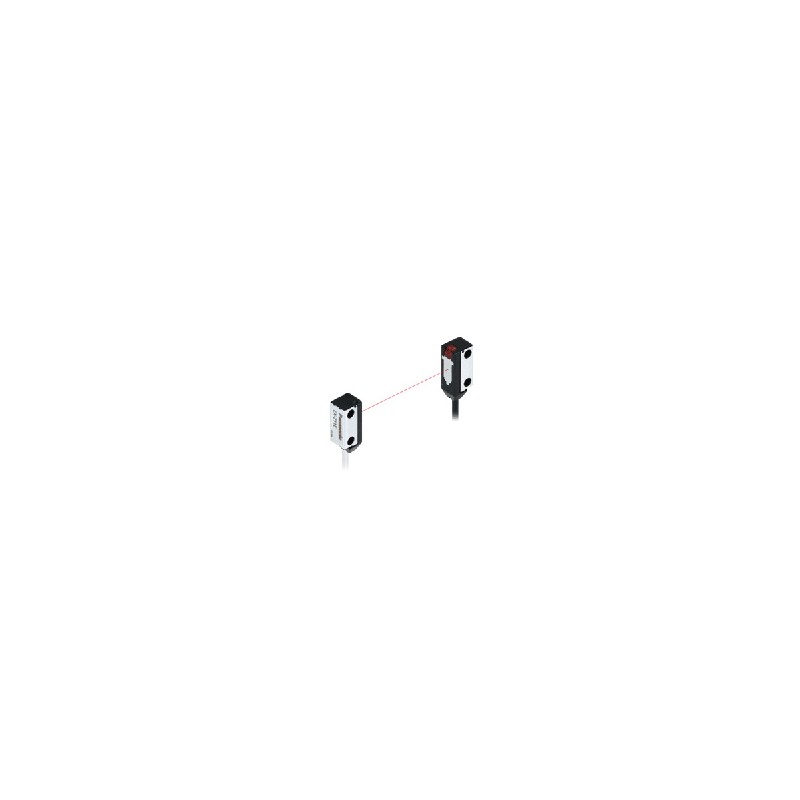

UEXZ11A EX-Z11A PANASONIC Thru beam, 50mm, Side sensing, Light-ON, NPN, cable 2m
UEXZ11A
EX-Z11A
PANASONIC
Thru beam, 50mm, Side sensing, Light-ON, NPN, cable 2m
Ultra-miniature and ultra-compact photoelectric sensor. Barrier, 50mm reach, side detection, light operation, NPN, 2m cable, dimensions 6.5 x 12 x 5.5
EX-Z11A_Ultra-minute Photoelectric Sensor_Ultra-minute Photoelectric Sensor EX-Z_Thru-beam [Side sensing]
Miniature Photoelectric Sensors - PANASONIC > EX10 Ultra-slim type photoelectric sensor - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | EX-Z11A |
| Part Number | EX-Z11A |
| Product | Ultra-minute Photoelectric Sensor |
| Details | Thru-beam [Side sensing] |
| Product name | Ultra-minute Photoelectric Sensor EX-Z |
| Item | Specifications |
|---|---|
| Product Number | EX-Z11A |
| Part Number | EX-Z11A |
| Applicable regulations and certifications | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), UL/c-UL Certification |
| Output operation | Light-ON |
| Sensing range | 50 mm 1.969 in |
| Min. sensing object | ø0.3 mm ø0.012 in opaque object (Completely beam interrupted object)(Setting distance between emitter and receiver: 50 mm 1.969 in) |
| Repeatability(perpendicular to sensing axis) | 0.02 mm 0.001 in or less |
| Supply voltage | 12 to 24 V DC ±10 % Ripple P-P 10 % or less |
| Current consumption | Emitter: 10 mA or less Receiver: 10 mA or less |
| Output | NPN open-collector transistor - Maximum sink current: 20 mA - Applied voltage: 30 V DC or less (between output and 0 V) - Residual voltage: 1.5 V or less (at 20 mA sink current) |
| Output:Short-circuit protection | Incorporated |
| Response time | 0.5 ms or less |
| Operation indicator | Orange LED (Lights up when the sensing output is ON) |
| Stability indicator | Green LED (Lights up under the stable light received condition or the stable dark condition) |
| Protection | IP67 (IEC) |
| Ambient temperature | -10 to +55 ℃ 14 to +131 ℉ (No dew condensation or icing allowed), Storage: -30 to +70 ℃ -22 to +158 ℉ |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance | Incandescent light: 5,000 ℓx at the light-receiving face |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Insulation resistance | 20 MΩ or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Vibration resistance | 10 to 500 Hz frequency, 3 mm 0.118 in amplitude in X, Y and Z directions for two hours each |
| Shock resistance | 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions for three times each |
| Emitting element | Red LED (Peak emission wavelength: 650 nm 0.026 mil, modulated) |
| Grounding | Floating |
| Material | Enclosure: PBT Lens: Polycarbonate Metallic part: Stainless steel (SUS304)(SUS301 for rear side of front sensing type) |
| Cable | 0.1 mm2 3-core (emitter: 2-core) cabtyre cable, 2 m 6.562 ft long Note:The bending-resistant cable type has a 0.1 mm2 3-core (thru-beam type emitter: 2-core) bending-resistant cabtyre cable, 2 m 6.562 ft long. |
| Cable extension | Extension up to total 50 m 164 ft is possible with 0.3 mm2, or more, cable (both emitter and receiver) . |
| Weight | Net weight (each emitter and receiver) : 15 g approx. Gross weight: 35 g approx. |
| Accessory | M2 mounting screws: 1 set (front sensing type: 6 mm 0.236 in in length; side sensing type: 10 mm 0.394 in in length) |
| Remark | Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃ 73 ℉. |
