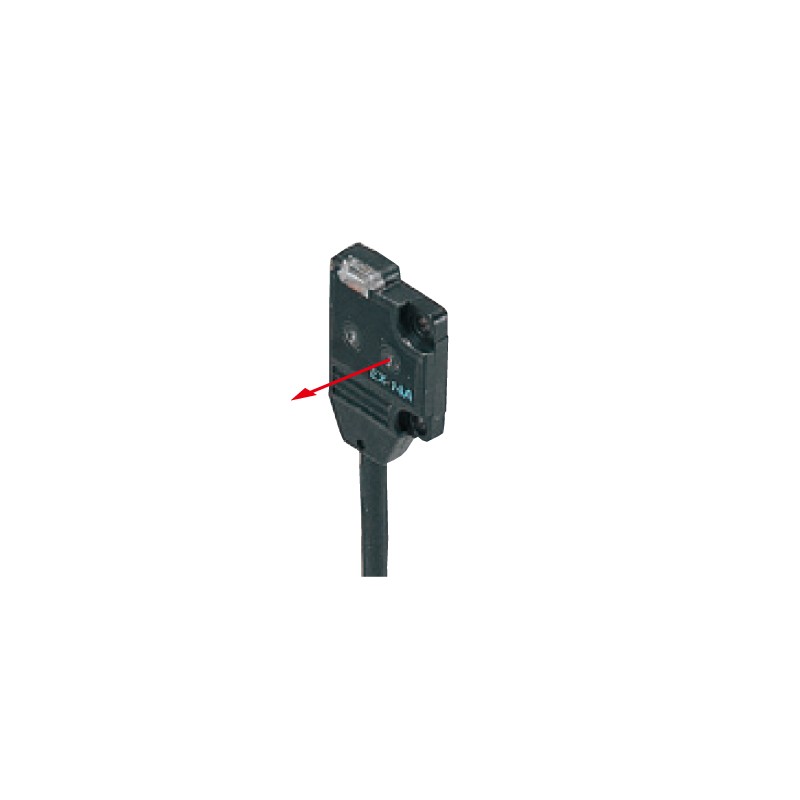

PANASONIC UEX14AR EX-14A-R - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

UEX14AR EX-14A-R PANASONIC Diffus reflective type, 25mm, Light-ON, NPN, flexible cable 2m,

Reference: UEX14AR

Code: EX-14A-R

Manufacturer: PANASONIC

Description:

Diffus reflective type, 25mm, Light-ON, NPN, flexible cable 2m,
Ultra-miniature photoelectric sensor, diffuse reflection, front detection, range 2 to 25mm, light operation, NPN, flexible cable 2m, dimensions 13 x 16 x 3.5mm.
EX-14A-R_Ultra-slim Photoelectric Sensor_Ultra-slim Photoelectric Sensor EX-10_Convergent reflective (Diffused beam type) [Front sensing]

Categories:

  • PANASONIC > Miniature Photoelectric Sensors - PANASONIC > EX10 Ultra-slim type photoelectric sensor - PANASONIC

Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 89,21 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Product NumberEX-14A-R
Part NumberEX-14A-R
ProductUltra-slim Photoelectric Sensor
DetailsConvergent reflective (Diffused beam type) [Front sensing]
Product nameUltra-slim Photoelectric Sensor EX-10

ItemSpecifications
Product NumberEX-14A-R
Part NumberEX-14A-R
Regulatory compliance・EMC Directive ： EN 60947-5-2
・RoHS Directive
・ISO 13849-1 (Category 1, PLc) (Note)
(Note) : Conformed from December 2021 production.
CertificationUL certification
Sensing range2 to 25 mm 0.079 to 0.984 in (Conv. point: 10 mm 0.394 in)
(Note) The sensing range and the hysteresis are specified for white non-glossy paper (50 × 50 mm 1.969 × 1.969 in) as the object.
Min. sensing objectø0.1 mm ø0.004 in copper wire (Completely beam interrupted object) (Setting distance: 10 mm 0.394 in)
Hysteresis15 % or less of operation distance
(Note) The sensing range and the hysteresis are specified for white non-glossy paper (50 × 50 mm 1.969 × 1.969 in) as the object.
Repeatability(perpendicular to sensing axis)0.1 mm 0.004 in or less
Supply voltage12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Current consumption13 mA or less
OutputNPN open-collector transistor
- Maximum sink current: 50 mA
- Applied voltage: 30 V DC or less (between output and 0 V)
- Residual voltage: 2 V or less (at 50 mA sink current),1 V or less (at 16 mA sink current)


Output:Utilization categoryDC-12 or DC-13
Output:Short-circuit protectionIncorporated
Response time0.5 ms or less
Operation indicatorOrange LED (lights up when the output is ON)
Incident beam indicator-
Stability indicatorGreen LED (lights up under stable light received condition or stable dark condition)
Pollution degree3 (Industrial environment)
ProtectionIP67 (IEC)
Ambient temperature-25 to +55 ℃ -13 to +131 ℉ (No dew condensation or icing allowed), Storage: -30 to +70 ℃ -22 to +158 ℉
Ambient humidity35 to 85 % RH, Storage: 35 to 85 % RH
Ambient illuminanceIncandescent light: 3,000 lx or less at the light-receiving face
Voltage withstandability1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration resistance10 to 500 Hz frequency, 3 mm 0.118 in double amplitude (20 G max.) in X, Y and Z directions for two hours each
Shock resistance500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting elementRed LED (Peak emission wavelength: 680 nm 0.027 mil, modulated)
MaterialEnclosure: Polyarylate
Lens: Polyarylate
Cable0.1 mm2 3-core (emitter: 2-core) flexible cabtyre cable, 2 m 6.562 ft long (Note：The bending-resistant cable type (model Nos. having suffix "-R") has a 0.1 mm2 3-core (thru-beam type emitter: 2-core) bending-resistant cabtyre cable, 2 m 6.562 ft long.)
Cable extensionExtension up to total 50 m 164.042 ft is possible with 0.3 mm2, or more, cable.
(Note) : For safety applications, do not exceed 30 m 98.425 ft.
WeightNet weight: 20 g approx
Gross weight: 40 g approx
AccessoryMounting screws: 1 set
