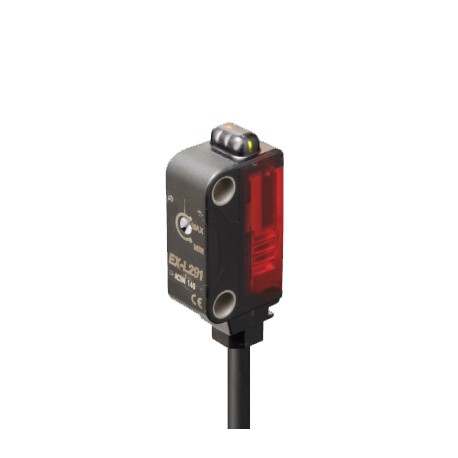

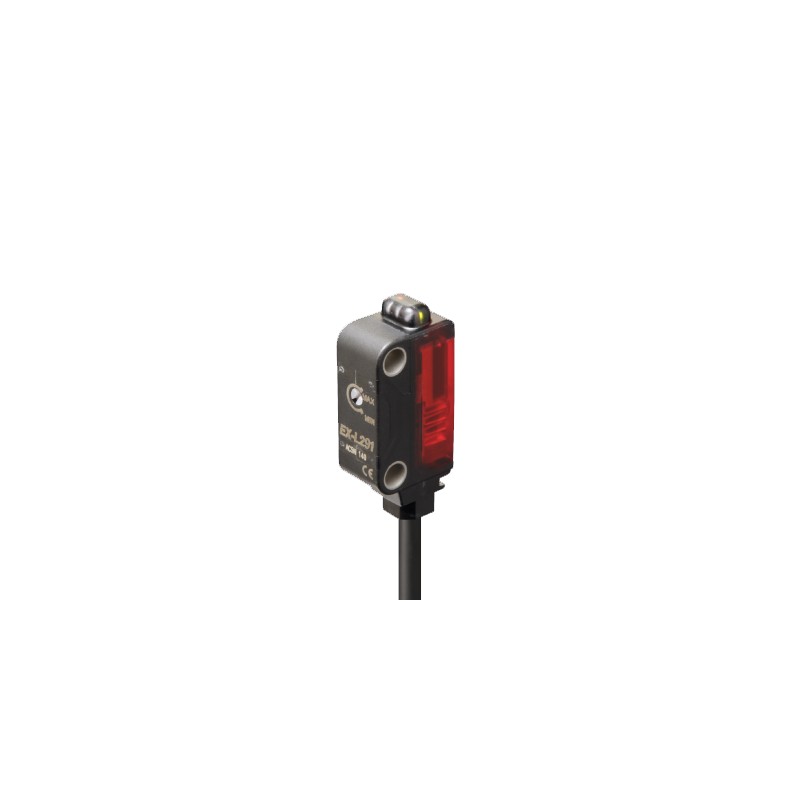

EX-L291-C5 PANASONIC Laser retro-reflective, long sensing range (4m), NPN, cable 5m, with sensitivity adjust..
EX-L291-C5
PANASONIC
Laser retro-reflective, long sensing range (4m), NPN, cable 5m, with sensitivity adjuster
Digital laser - PANASONIC > EX-L200 digital laser - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Product Number | EX-L291-C5 |
| Part Number | EX-L291-C5 |
| Product | Amplifier Built-in Ultra-compact Laser Sensor |
| Details | Retroreflective type |
| Product name | Amplifier Built-in Ultra-compact Laser Sensor EX-L200 |
| Item | Specifications |
|---|---|
| Product Number | EX-L291-C5 |
| Part Number | EX-L291-C5 |
| CE marking directive compliance | EMC Directive, RoHS Directive |
| Sensing range | 4 m13.123 ft (Note)The sensing range is specified for white non-glossy papar (100 x 100 mm3.937 x 3.937 in) as the object. |
| Emission spot size (Typical) | Approx. 6 × 4 mm0.236 × 0.157 in(vertical x horizontal) (at a sensing distance of 1 m) (Note) In the case sensing distance is 4 m 13.123 ft, the emission spot size is H 18 x W 10 mmH 0.709 x W 0.394 in(visual reference value). |
| Sensing object | Opaque translucent object of ø25 mmø0.984 inor more |
| Minimum sensing object (Typical) | - |
| Hysteresis | 20 % or less of operation distance |
| Repeatability | Perpendicular to sensing axis: 0.2 mm0.0080 inor less |
| Repeatability (Typical)(perpendicular to sensing axis) | - |
| Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Current consumption | 15 mA or less |
| Output | NPN open-collector transistor - Maximum sink current: 50 mA - Applied voltage: 26.4 V DC or less (between output and 0 V) - Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current) |
| Output:Output operation | Light-ON / Dark-ON selectable by the output operation switching input |
| Output:Short-circuit protection | Incorporated (short-circuit protection / inverse polarity protection) |
| Response time | 0.5 ms or less |
| Automatic Interference prevention function | Incorporated (Two sensors can be mounted close together.) |
| Sensitivity adjuster | Continuously variable adjuster |
| Protection | IP67 (IEC) |
| Ambient temperature | -10 to +55 ℃+14 to +131 ℉(No dew condensation or no icing condition), Storage: -30 to +70 ℃-22 to +158 ℉ |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance | Incandescent light: 3,000 lx or less at the light-receiving face |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Insulation resistance | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Vibration resistance | 10 to 500 Hz frequency, 1.5 mm0.059 indouble amplitude (10 G max.) in X, Y and Z directions for two hours each |
| Shock resistance | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
| Emitting element | Red semiconductor laser Class 1 (IEC / JIS/ FDA) (Note：This product complies with 21 CFR 1040.10 and 1040.11 Laser Notice No. 50, dated June 24, 2007, issued by CDRH (Center for Devices and Radiological Health) under the FDA (Food and Drug Administration) (Maximum output: 390 μW, Peak emission wavelength: 655 nm0.026 mil) |
| Material | Enclosure: Polybutylene terephthalate, Front cover: Acylic, Lens: Glass, Indicator part: Polyarylate |
| Cable | 0.15 mm24-core (emitter of a thru-beam type: 2-core) cabtyre cable, 2 m6.562 ftlong |
| Cable extension | Extension up to total 50 m164.042 ftis possible with 0.3 mm2, or more, cable. |
| Accessory | RF-330 (Reflector): 1 pc. MS-EXL2-3 (Mounting plate): 1 pc. |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| Datasheet 1: EXL291C5 - EX-L291-C5 | EX-L291-C5 | 3 Mbytes |
 |
