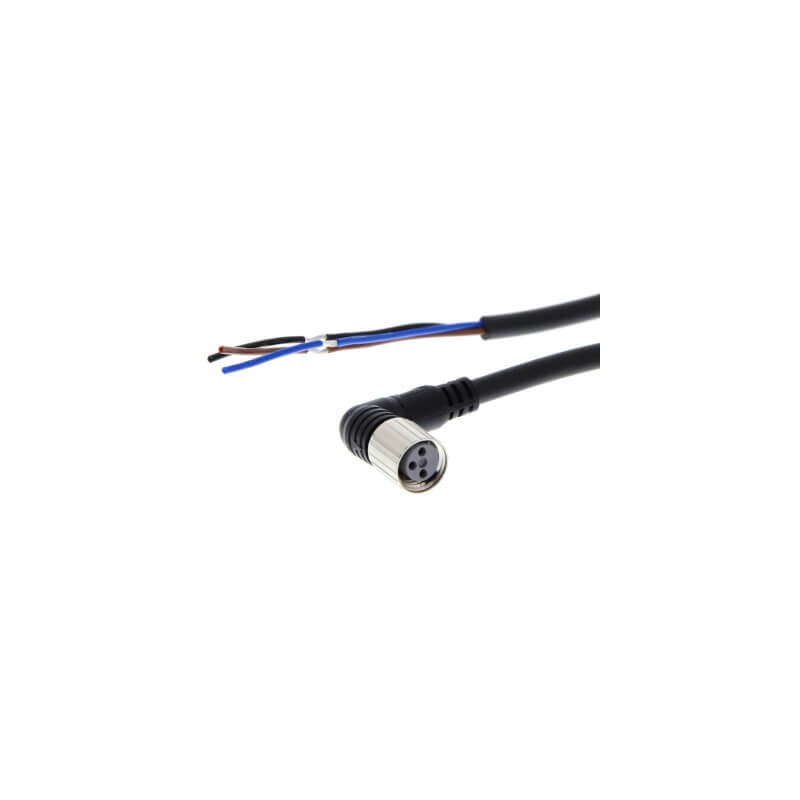

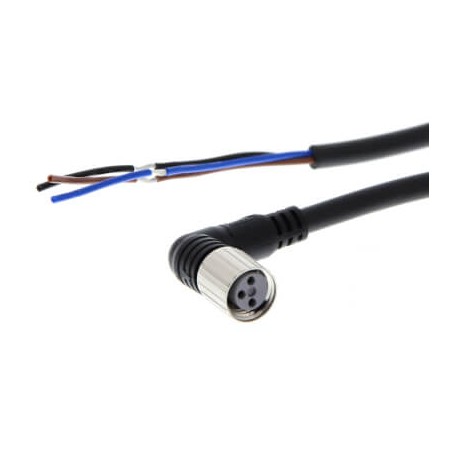

XS3F-M322-302-R XS3F0190H XS3FM322302R OMRON Cable right Angle 3 wire 2m M8 Standard
XS3F-M322-302-R
XS3F0190H
XS3FM322302R
OMRON
5
Cable right Angle 3 wire 2m M8 Standard
With 3-wire angled cable 2m M8 Standard
Sensor cable, M8 right-angle socket (female), 3-poles, PVC robot cable, IP67, 2 m
Sensors > Sensor-actuator patch cord
Proximity Sensors > Accessories Proximity Sensors
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Specifications
| Usage | Cable with connector |
| Connector 1 | M8 right-angle socket |
| Connector 2 | Open ends |
| Number of pin contact | 3 |
| Cable specifications | PVC |
| Cable length | 2 m |
| Features | Robotic |
| Color | Black |
| Color cover | Black |
| Material nut | Brass |
| With LED indicator |
| Feature Name | Feature Value |
|---|---|
| Type of electrical connection, field-sided (EF005525) | M8 |
| Cable type (EF000081) | Multi-core |
| Colour cable sheath (EF008249) | Black |
| Degree of protection (IP) (EF005474) | IP67 |
| Type of plug-in contact, field sided (EF006269) | Female (bus) |
| Positioning cable feed, field-sided (EF005928) | Right-angled |
| Material of contact surface (EF004020) | Nickel/gold |
| Material contact body (EF008248) | Other |
| Positioning cable feed, box-sided (EF005927) | Other |
| Material of cable sheath (EF004136) | Polyvinyl chloride (PVC) |
| Type of electrical connection, box-sided (EF005524) | Free conductor end |
| Screened (EF000881) | No |
| Halogen free (EF000025) | No |
| Vulcanize (EF004115) | No |
| With LED indication (EF005950) | No |
| Continuity resistance (EF003992) | 40 mOhm |
| Rated voltage (EF000228) | 125 V |
| Cable length (EF000536) | 2 m |
| Rated current In (EF008250) | 1 A |
| Number of poles (EF001391) | 3 |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -25 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| XS3F-M322-302-R XS3FM322302R XS3F0190H ES_XS3F-M421-405-A.pdf | 7 Mbytes |
|
