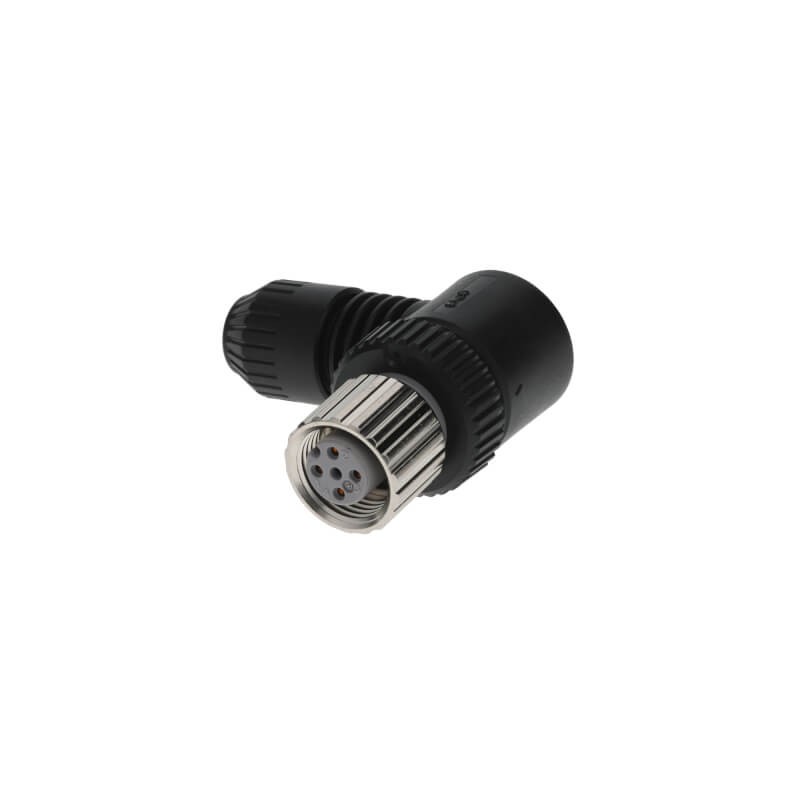

XS2C-D5S2 XS2C0026B XS2CD5S2 OMRON M12 cordless right Angle Female 5-wire Screw Cable 6mm
XS2C-D5S2
XS2C0026B
XS2CD5S2
OMRON
M12 cordless right Angle Female 5-wire Screw Cable 6mm
Field assembly connector, M12 right-angle socket (female), 5-poles, A coded, screw connection, for cable diameters 5-6 mm
Connectors > Circular connector for field assembly (industrial connector)
Proximity Sensors > Accessories Proximity Sensors
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Coating housing (EF001601) | None |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Pollution degree (EF006786) | 2 |
| Contact type (EF001587) | Bus |
| Material of contact surface (EF004020) | Gold |
| Type of housing (EF006980) | Angled |
| Over voltage category (EF006785) | I |
| Degree of protection (IP), mounted (EF007466) | IP67 |
| Type of electric connection (EF003961) | Screw connection |
| Type of locking (EF000208) | Swivel |
| Material thread ring (EF012304) | Other |
| Housing material (EF001596) | Plastic |
| Screened (EF000881) | No |
| With status indication (EF001602) | No |
| With protective conductor (EF007468) | No |
| Rated voltage (EF000228) | 250 V |
| Thread size M (EF004759) | 12 |
| Rated current In (EF008250) | 4 A |
| Diameter connector (EF007496) | 20 mm |
| Min. number of insertion cycles (EF012212) | 200 |
| Number of power contacts (EF012216) | 5 |
| Number of data contacts (EF012232) | 5 |
| Number of control contacts (EF012217) | 5 |
| For cable outer diameter (EF009475) | 5 mm |
| Connectable conductor cross section solid-core (EF007337) | 0.18 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.18 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.18 mm² |
| Ambient temperature (EF002386) | -25 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
