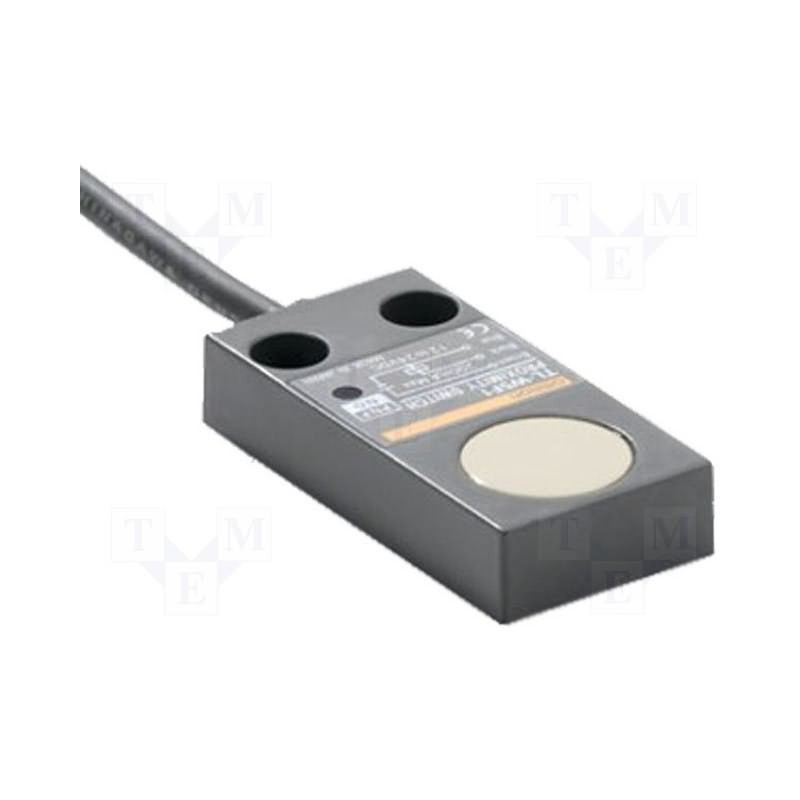

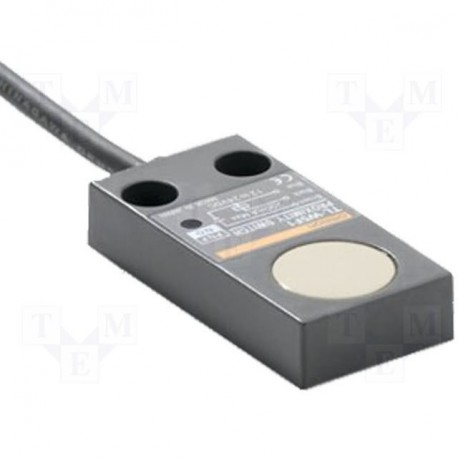

TL-W5F2 TLW 1007A TLW5F2 OMRON Plane cc 3h Enr 5mm PNP NC
TL-W5F2
TLW 1007A
TLW5F2
OMRON
Plane cc 3h Enr 5mm PNP NC
Proximity sensor, inductive, shielded, 5 mm, DC, 3-wire, PNP-NC, 2 m cable
Sensors > Inductive proximity switch
Proximity Sensors > TL-T/W
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Specifications
| Size | 25 x 10 x 52 mm |
| Mounting type | Flush |
| Sensing distance | 5 mm |
| Output type | PNP |
| Operation mode | NC |
| Connection method | Cable |
| Material housing | Aluminium |
| Cable specifications | PVC |
| Cable length | 2 m |
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Voltage type (EF000187) | DC |
| Construction type housing (EF004008) | Cuboid |
| Degree of protection (NEMA) (EF011959) | Other |
| Coating housing (EF001601) | Other |
| Mechanical mounting condition for sensor (EF004041) | Concise |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Type of interface for safety communication (EF003956) | None |
| Type of actuation (EF006949) | Metallic Target |
| Type of switch function (EF003963) | Breaker contact |
| Type of electric connection (EF003961) | Cable |
| Type of interface (EF006977) | None |
| SIL according to IEC 61508 (EF009889) | None |
| Housing material (EF001596) | Metal |
| Type of switching output (EF003962) | PNP |
| Interference resistance to magnetic fields (EF008275) | Immune against magnetic DC-field |
| Explosion safety category for gas (EF003997) | None |
| Cascadable (EF000507) | No |
| With monitoring function downstream switching devices (EF004052) | No |
| Compression-resistant (EF007106) | No |
| Suitable for safety functions (EF001597) | No |
| Number of protected contact energized outputs (EF003952) | 0 |
| Number of semiconductor outputs with signalling function (EF003945) | 1 |
| Number of protected semiconductor outputs (EF003951) | 0 |
| Width sensor (EF007094) | 31 mm |
| Height of sensor (EF007283) | 10 mm |
| Switching distance (EF003647) | 5 mm |
| Length of sensor (EF007334) | 50 mm |
| Switching frequency (EF003587) | 300 Hz |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Supply voltage (EF004127) | 10 V |
| Rated control supply voltage DC (EF003980) | 12 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| TL-W5F2 TLW5F2 TLW 1007A EN_TL-W5F2.pdf | 1 Mbytes |
|
| TL-W5F2 TLW5F2 TLW 1007A e221_tl_w_standard_flat_inductive_proximity_sensors_datasheet_en.pdf | 506 Kbytes |
|
