S8V-CP0824
S8V 1005E
S8VCP0824
OMRON
1

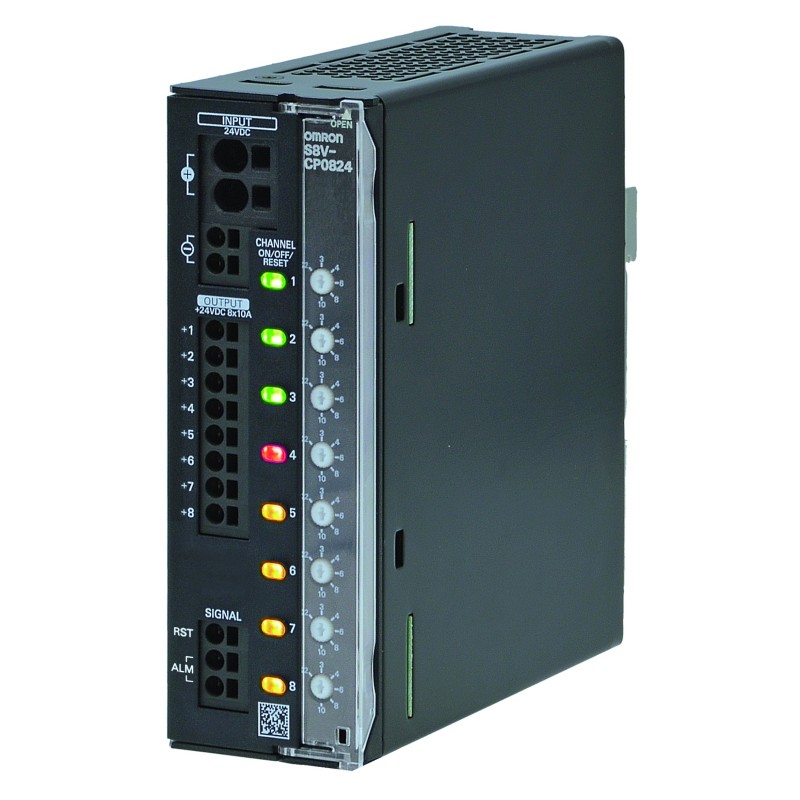

Electronic circuit breaker, 8 channels, max. 10 A per channel, 24 VDC
Low-voltage industrial components > Accessories/spare parts for low-voltage switch technology
Power supplies > S8V Circuit Breakers
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Notall combinations are possible. Refer to List of Models in OrderingInformation, below.

| Code | Number of Outputs |
|---|---|
| 04 | 4 outputs |
| 08 | 8 outputs |
| Code | Rated input voltage |
|---|---|
| 24 | 24 VDC |
| Code | UL Class 2 output certified |
|---|---|
| S | Yes |
| No | No |
| Number of Outputs | UL Class 2 output | Order code |
|---|---|---|
| 4 outputs | No | S8V-CP0424 |
| Yes | S8V-CP0424S | |
| 8 outputs | No | S8V-CP0824 |
| Item | Model Number ofOutputs UL Class 2 output | S8V-CP0424 | S8V-CP0424S | S8V-CP0824 | |
|---|---|---|---|---|---|
| 4 | 4 | 8 | |||
| No | Yes | No | |||
| I/O characteristics | Rated inputvoltage (Input voltage allowable range) | 24 VDC (20 to 30 VDC) | 24 VDC (20 to 28.8 VDC) | 24 VDC (20 to 30 VDC) | |
| Allowableinput current 2 For power input terminals, use 35 A max. per pole. | 40 A | 15.2 A | 70 A | ||
| Max. ratedoutput current (per output) | 10 A | 3.8 A | 10 A | ||
| Internalvoltage drop 2 A voltage drop will occur in the S8V-CP. Considerthe voltage drop at the output. | 200 mV max. | 150 mV max. | 200 mV max. | ||
| Output leakagecurrent | 10 mA max. | ||||
| Power consumption 2 Whenselecting the power supply, be sure to include the internal powerconsumption of the S8V-CP and not just the power consumption ofthe load. | When all outputs are connected | 10 W max. (at 10 A) | 3.1 W max. (at 3.8 A) | 20 W max. (at 10 A) | |
| When all output branches are tripped | 0.84 W typ. | 0.82 W typ. | 1.32 W typ. | ||
| Start-uptime 2 Outputs start in order from +VO1 to +VO8. +VO1 starts afterthe initialization time. Start-up delay time of each output is automaticallydecided depending on the load. If the start-up delay time is over5 s, the next output is forcibly started. | Initialization time | 250 ms typical | |||
| Start-up delay time | 50 ms to 5 s | ||||
| Functions 2 Referto Cat. No. T226-E1 for details. | Currenttripping function 2 Refer to Cat. No. T226-E1for details. | Rated output current | 2 A, 3 A, 4 A, 6 A, 8 A, 10 A | 3.8 A | 2 A, 3 A, 4 A, 6 A, 8 A, 10 A |
| Cutoff current | 2.5 A, 3.5 A, 4.5 A, 6.5 A, 8.5 A, 10.5 A | 3.8 A | 2.5 A, 3.5 A, 4.5 A, 6.5 A, 8.5 A, 10.5 A | ||
| Over voltagetripping function 2 Refer to Cat. No. T226-E1for details. | No | Yes | No | ||
| Push button(ON/OFF/RESET) with indicator | Yes (LED colors: Red/Green/Yellow) | ||||
| Reset signalinput (RST) | Yes (High level: 15 to 30 VDC,Low level: 0 to 5 VDC) | ||||
| Alarm signaloutput (ALM1/ALM2) | Yes (MOS FET relay output 30 VDCmax., 50 mA max.) | ||||
| Insulation | Dielectricstrength | 1.0 kVAC for 1 min (between allterminals and DIN rail mounting parts), current cutoff 20 mA | |||
| Insulationresistance | 100 MΩ min. (between all terminalsand DIN rail mounting parts) at 500 VDC | ||||
| Environment | Ambient operatingtemperature | –25 to 70°C (Derating is requiredaccording to the temperature.) (with no condensation or icing) | |||
| Storage temperature | –40 to 85°C (with no condensationor icing) | ||||
| Ambient operatinghumidity | 5% to 96% (storage humidity: 5%to 96%) | ||||
| Vibrationresistance | 10 to 55 Hz, maximum 5 G, 0.42mm half amplitude for 2 h each in X, Y, and Z directions | ||||
| Shock resistance | 294 m/s2, 3 times each in ±X,±Y, ±Z directions | ||||
| Reliability | MTBF 2 MTBFis calculated according to JEITA RCR-9102. | 13,5000 hrs typ. | 60,000 hrs typ. | 13,5000 hrs typ. | |
| Life expectancy 2 Referto Cat. No. T226-E1 for details. | 10 years min. | ||||
| Construction | Weight | 160 g max. | 170 g max. | 420 g max. | |
| Cooling fan | No | ||||
| Degree ofprotection | IP20 by EN/IEC 60529 | ||||
| Standards | EMI | Conforms to EN 61000-6-3 | |||
| EMS | Conforms to EN 61000-6-2 | ||||
| Safety standards | UL 508 (CSA22.2 No.14-10) Listing Pol2 UL 2367 Recognition (Max. 100W per output, per Class 2 limitations) Pol2 2 UL Class 2 output applies for the S8V-CP0424S model only. CE (EN 61000-6-2, EN 61000-6-3) | ||||
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
