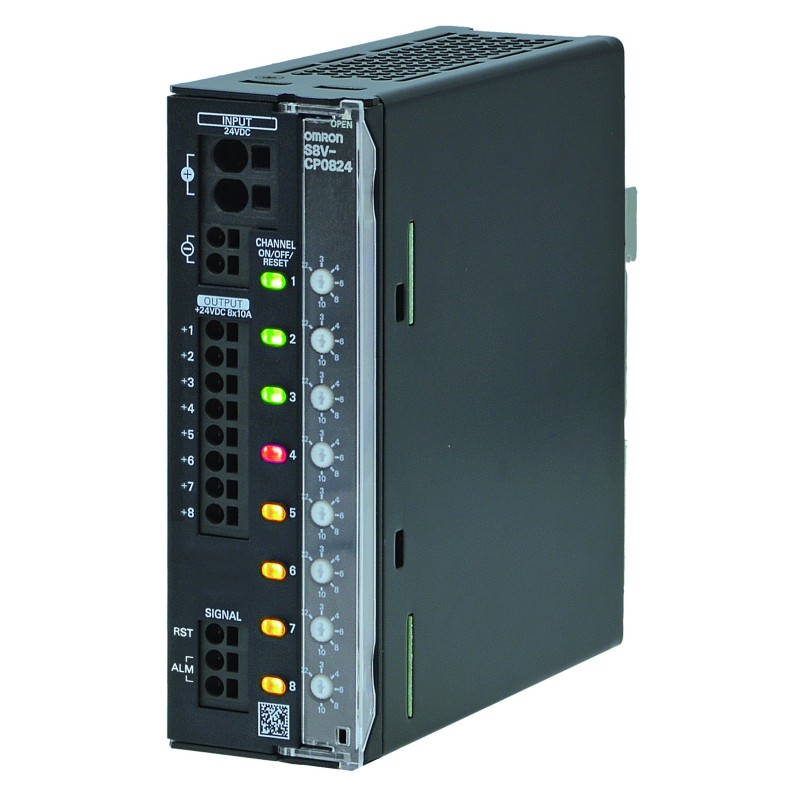

S8V-CP0824
S8V 1005E
S8VCP0824
OMRON
1
Elettronico, interruttore di circuito, 8 canali, max. 10 A per canale, 24 VDC,
Fusibile elettronico, 8 canali, max 10 A per canale, 24 V CC
Apparecchi elettrici a bassa tensione > Accessori per la tecnologia degli interruttori a bassa tensione
Alimentatori > Interruttori automatici S8V
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de OMRON
Grazie per il suo interesse nei nostri prodotti, speriamo che il tempo di consegna indicato sia conveniente per lei.
Durante l’elaborazione dell’ordine potrà selezionare il tipo di invio che meglio si adatti alle sue necessità: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Notall combinations are possible. Refer to List of Models in OrderingInformation, below.

| Code | Number of Outputs |
|---|---|
| 04 | 4 outputs |
| 08 | 8 outputs |
| Code | Rated input voltage |
|---|---|
| 24 | 24 VDC |
| Code | UL Class 2 output certified |
|---|---|
| S | Yes |
| No | No |
| Number of Outputs | UL Class 2 output | Order code |
|---|---|---|
| 4 outputs | No | S8V-CP0424 |
| Yes | S8V-CP0424S | |
| 8 outputs | No | S8V-CP0824 |
| Item | Model Number ofOutputs UL Class 2 output | S8V-CP0424 | S8V-CP0424S | S8V-CP0824 | |
|---|---|---|---|---|---|
| 4 | 4 | 8 | |||
| No | Yes | No | |||
| I/O characteristics | Rated inputvoltage (Input voltage allowable range) | 24 VDC (20 to 30 VDC) | 24 VDC (20 to 28.8 VDC) | 24 VDC (20 to 30 VDC) | |
| Allowableinput current 2 For power input terminals, use 35 A max. per pole. | 40 A | 15.2 A | 70 A | ||
| Max. ratedoutput current (per output) | 10 A | 3.8 A | 10 A | ||
| Internalvoltage drop 2 A voltage drop will occur in the S8V-CP. Considerthe voltage drop at the output. | 200 mV max. | 150 mV max. | 200 mV max. | ||
| Output leakagecurrent | 10 mA max. | ||||
| Power consumption 2 Whenselecting the power supply, be sure to include the internal powerconsumption of the S8V-CP and not just the power consumption ofthe load. | When all outputs are connected | 10 W max. (at 10 A) | 3.1 W max. (at 3.8 A) | 20 W max. (at 10 A) | |
| When all output branches are tripped | 0.84 W typ. | 0.82 W typ. | 1.32 W typ. | ||
| Start-uptime 2 Outputs start in order from +VO1 to +VO8. +VO1 starts afterthe initialization time. Start-up delay time of each output is automaticallydecided depending on the load. If the start-up delay time is over5 s, the next output is forcibly started. | Initialization time | 250 ms typical | |||
| Start-up delay time | 50 ms to 5 s | ||||
| Functions 2 Referto Cat. No. T226-E1 for details. | Currenttripping function 2 Refer to Cat. No. T226-E1for details. | Rated output current | 2 A, 3 A, 4 A, 6 A, 8 A, 10 A | 3.8 A | 2 A, 3 A, 4 A, 6 A, 8 A, 10 A |
| Cutoff current | 2.5 A, 3.5 A, 4.5 A, 6.5 A, 8.5 A, 10.5 A | 3.8 A | 2.5 A, 3.5 A, 4.5 A, 6.5 A, 8.5 A, 10.5 A | ||
| Over voltagetripping function 2 Refer to Cat. No. T226-E1for details. | No | Yes | No | ||
| Push button(ON/OFF/RESET) with indicator | Yes (LED colors: Red/Green/Yellow) | ||||
| Reset signalinput (RST) | Yes (High level: 15 to 30 VDC,Low level: 0 to 5 VDC) | ||||
| Alarm signaloutput (ALM1/ALM2) | Yes (MOS FET relay output 30 VDCmax., 50 mA max.) | ||||
| Insulation | Dielectricstrength | 1.0 kVAC for 1 min (between allterminals and DIN rail mounting parts), current cutoff 20 mA | |||
| Insulationresistance | 100 MΩ min. (between all terminalsand DIN rail mounting parts) at 500 VDC | ||||
| Environment | Ambient operatingtemperature | –25 to 70°C (Derating is requiredaccording to the temperature.) (with no condensation or icing) | |||
| Storage temperature | –40 to 85°C (with no condensationor icing) | ||||
| Ambient operatinghumidity | 5% to 96% (storage humidity: 5%to 96%) | ||||
| Vibrationresistance | 10 to 55 Hz, maximum 5 G, 0.42mm half amplitude for 2 h each in X, Y, and Z directions | ||||
| Shock resistance | 294 m/s2, 3 times each in ±X,±Y, ±Z directions | ||||
| Reliability | MTBF 2 MTBFis calculated according to JEITA RCR-9102. | 13,5000 hrs typ. | 60,000 hrs typ. | 13,5000 hrs typ. | |
| Life expectancy 2 Referto Cat. No. T226-E1 for details. | 10 years min. | ||||
| Construction | Weight | 160 g max. | 170 g max. | 420 g max. | |
| Cooling fan | No | ||||
| Degree ofprotection | IP20 by EN/IEC 60529 | ||||
| Standards | EMI | Conforms to EN 61000-6-3 | |||
| EMS | Conforms to EN 61000-6-2 | ||||
| Safety standards | UL 508 (CSA22.2 No.14-10) Listing Pol2 UL 2367 Recognition (Max. 100W per output, per Class 2 limitations) Pol2 2 UL Class 2 output applies for the S8V-CP0424S model only. CE (EN 61000-6-2, EN 61000-6-3) | ||||
| Caratteristica | Valore |
|---|---|
| tipo di accessori/pezzi di ricambio (EF000215) | altro |
| accessorio (EF013236) | Sì |
| pezzo di ricambio (EF013237) | No |
| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMAZIONE IT.pdf | 30 Mbytes |
|
| PDF CATALOGO OMRON IT.pdf | 69 Mbytes |
|
