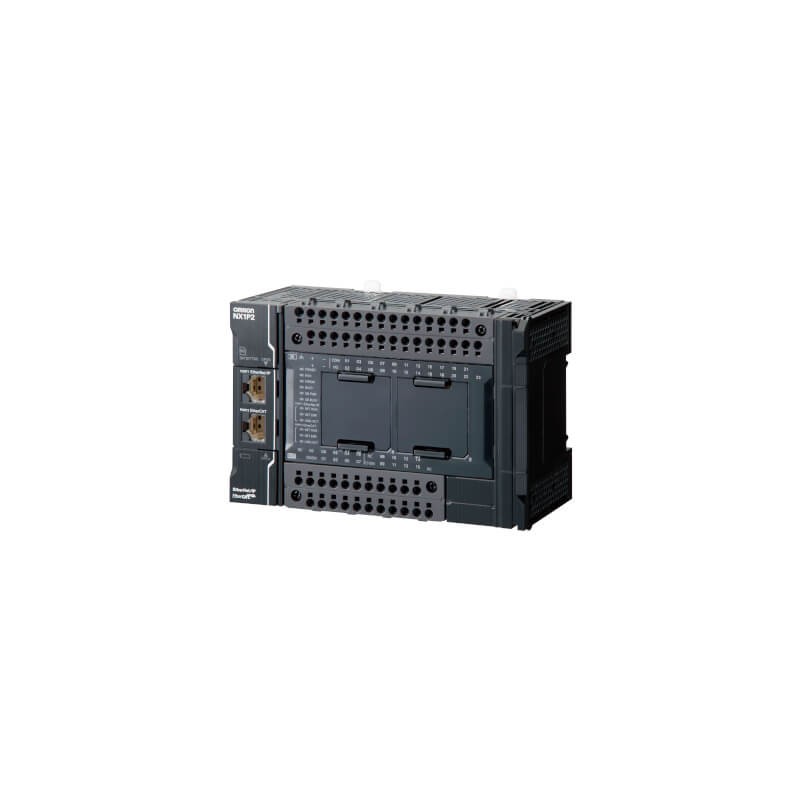

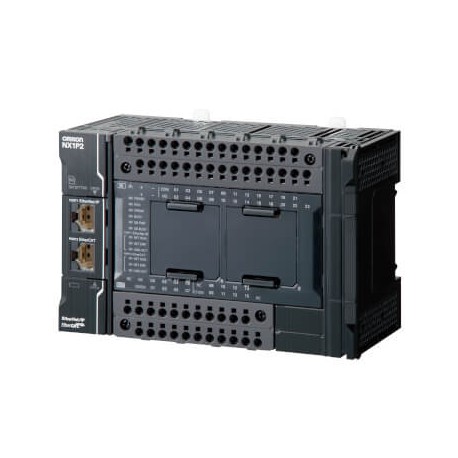

NX1P2-1140DT NX010067M 672510 OMRON NX1P Machine Controller, 24/16 I/O Transistor (NPN), 4-axis synchronized.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

NX1P2-1140DT NX010067M 672510 OMRON NX1P Machine Controller, 24/16 I/O Transistor (NPN), 4-axis synchronized..

NX1P2-1140DT

NX010067M

NX1P21140DT

OMRON

Available Ship on today

NX1P Machine Controller, 24/16 I/O Transistor (NPN), 4-axis synchronized + 4 axes PTP

Sysmac NX1P CPU with 40 Digital Transistor I/O (NPN), 1.5 MB memory, EtherCAT (4 servo axes, 4 PTP axes, 16 EtherCAT nodes), EtherNet/IP and 2 serial option ports

More details


Integrated Automation > Machine Controllers NX1P2

* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

Total price: $2,190.75
Unit price: $2,190.75

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

More info

▲


Specifications

Primary task cycle time2 ms
Program memory1.5 MB
Variables memory2 MB
Max. number of synchronous axes4
Max. number of PTP axes4
Number of digital inputs24
Input typePNP/NPN
Number of digital outputs16
Output typeNPN
Number of serial option boards2
Max. number of expansion units8
Max. number of remote I/O nodes16
Communication port(s)EtherCAT Master, EtherNet/IP, Ethernet TCP/IP
Number of Ethernet ports2
Number of USB ports0
Communication option(s)Serial RS-232C, Serial RS-422, Serial RS-485
Real-time clock
Supply voltage DC20.4-28.8 V
Height100 mm
Width154 mm
Depth71 mm

Accessories

HMC-SD4914 GB SD memory card
NX1W-ADB21Sysmac NX1P Analog I/O screwless option board, 2 x analog inputs 0 to 10 V, resolution 1/4000 or 0 to 20 mA, resolution 1:2000
NX1W-CIF01Sysmac NX1P RS-232C screwless (15 m max.) serial communication option board
NX1W-CIF11Sysmac NX1P RS422/485 screwless (50 m max.) serial communication option board
NX1W-CIF12Sysmac NX1P RS422/485 screwless (isolated 500 m max.) serial communication option board
NX1W-DAB21VSysmac NX1P Analog I/O screwless option board, 2 x analog outputs 0 to 10 V, resolution 1:4000
NX1W-MAB221Sysmac NX1P Analog I/O screwless option board, 2 x analog inputs 0 to 10 V, resolution 1:4000 or 0 to 20 mA, resolution 1:2000, 2 x analog outputs 0 to 10 V, resolution 1:4000
SYSMAC-SE201LSysmac Studio license only, single user (requires SYSMAC-SE200D download or installation DVD, available separately)
XS6W-6LSZH8SS100CM-YEthernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 1 m
XS6W-6LSZH8SS200CM-BEthernet patch cable, F/UTP, Cat.6A, LSZH (Blue), 2 m
XS6W-6LSZH8SS200CM-YEthernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 2 m
XS6W-6LSZH8SS20CM-YEthernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 0.2 m
XS6W-6LSZH8SS500CM-YEthernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 5 m
XS6W-6LSZH8SS50CM-YEthernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 0.5 m

Datasheet - PDF

▲
Title: Size: Type:
NX1P2-1140DT NX1P21140DT NX010067M ES_NX1P2-9024DT1.pdf 2 Mbytes NX1P2-1140DT NX1P21140DT NX010067M ES_NX1P2-9024DT1.pdf
NX1P2-1140DT NX1P21140DT NX010067M panel_building_brochure_en.pdf 3 Mbytes NX1P2-1140DT NX1P21140DT NX010067M ES_NX1P2-9024DT1.pdf
