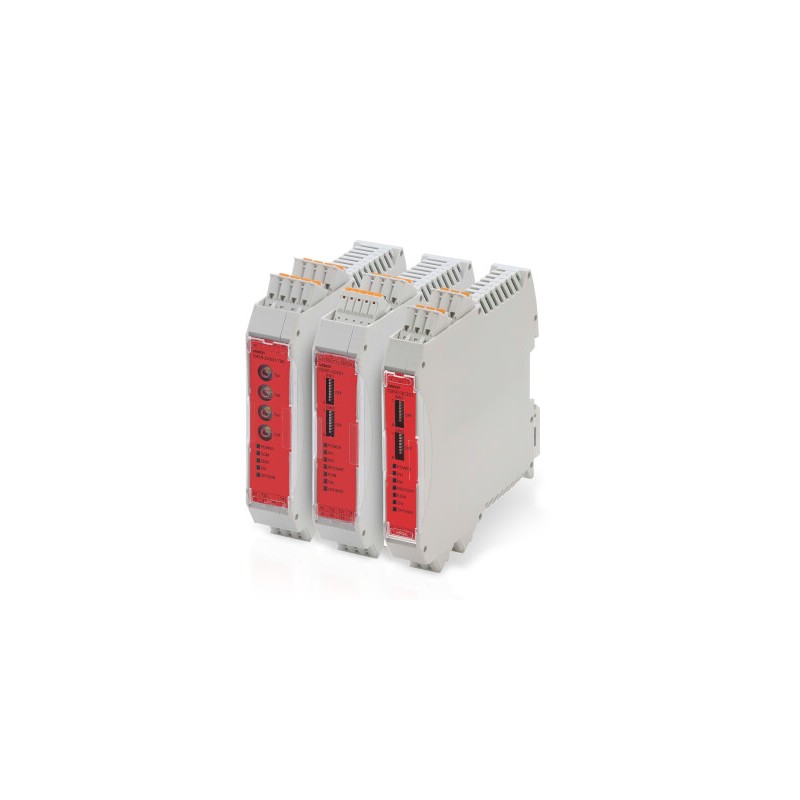

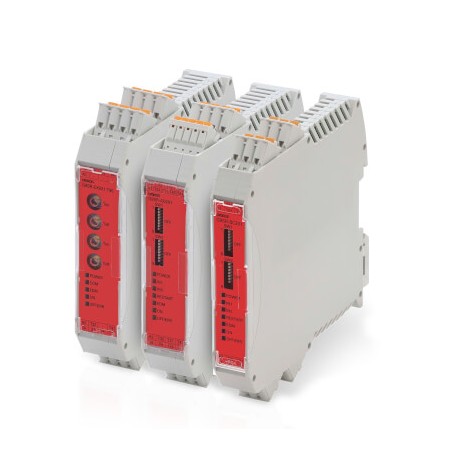

G9SR-AD201-RC AA041677F G9SRAD201RC OMRON Module Advanced Security 2PST-NA 5A 1Aux 22.5 mm 24vdc Reset M/To View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

G9SR-AD201-RC AA041677F G9SRAD201RC OMRON Module Advanced Security 2PST-NA 5A 1Aux 22.5 mm 24vdc Reset M/To

G9SR-AD201-RC

AA041677F

G9SRAD201RC

OMRON

Module Advanced Security 2PST-NA 5A 1Aux 22.5 mm 24vdc Reset M/To

Safety relay unit, 24VDC, 2 safety 5A, aux. output

More details


Relays > Device for monitoring of safety-related circuits

Security Controllers > G9SR

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

Total: $245.46
Unit price: $245.46
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Features

Compact safety relay unit family

G9SR family modules operate standalone and as a system with input and output extension. All modules are simple to set up using DIP-switches and provide clear diagnosis via LEDs on the front.

  • Three modules for all safety relay unit applications
  • Solid-state outputs for long life and high current safety relay outputs
  • Detailed LED indications enable easy diagnosis
  • Safe on- and off-delay function up to PLe
  • Up to PLe according to EN ISO 13949-1 and SIL 3 according to EN 61508

Ordering information

Advanced unit

Safety outputs

Auxiliary outputs

No. of input channels

Rated voltage

Terminal block type

Order code

Instantaneous

2 PST-NO (contact)

1 PNP transistor output

1 or 2 channels

24 VDC

removable cage clamp terminals

G9SR-AD201-RC

Basic unit

Safety outputs

Auxiliary outputs

No. of input channels

Rated voltage

Terminal block type

Order code

Instantaneous

2 P channel MOS FET transistor output

1 PNP transistor output

1 or 2 channels

24 VDC

removable cage clamp terminals

G9SR-BC201-RC

Expansion unit

Safety outputs

Auxiliary outputs

Rated voltage

Terminal block type

Order code

Instantaneous

ON/OFF-delayed

-

3 PST-NO (contact)1

1 (solid state) PNP transistor outputs

24 VDC

removable cage clamp terminals

G9SR-EX031-T90-RC

Specifications

Power input

Item

G9SR-AD_

G9SR-BC_

G9SR-EX_

Rated supply voltage

19.2 to 28.8 VDC (24 VDC ±20%)

Inputs

Item

G9SR-AD_

G9SR-BC_

G9SR-EX_

Safety input

Operating voltage: 17 VDC to 28.8 VDC,
internal impedance: Approx. 3 kΩ

Feedback/reset input

Outputs

Item

G9SR-BC_

G9SR-AD_

G9SR-EX_

Instantaneous safety output

P channel MOS FET transistor output

Load current (Using 2 outputs): 2 A DC max.

-

Auxiliary output

PNP transistor output
Load current: 500 mA max.

Rated load

-

250 VAC, 5 A AC15 (inductive load)

Rated carry current

-

5 A

Maximum switching voltage

-

250 VAC

Characteristics

Item

G9SR-BC_

G9SR-AD_

G9SR-EX_

Operating time (OFF to ON)

150 ms max.

Response time (ON to OFF)

50 ms max.

Durability

Electrical

-

100,000 cycles min.

Mechanical

-

10,000,000 cycles min.

Ambient temperature

-10 to 55°C (with no icing or condensation)

1.The ON/OFF delay time can be set in 16 steps as follows: 0/0.1/0.2/0.5/1/1.5/2/2.5/5/10/20/30/45/60/75/90 s


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG OMRON 2024 EN.pdf 25 Mbytes
G9SR-AD201-RC G9SRAD201RC AA041677F g9sr_brochure_en.pdf 7 Mbytes G9SR-AD201-RC G9SRAD201RC AA041677F g9sr_brochure_en.pdf
