OMRONSecurity ControllersG9SRG9SR-BC201-RC AA041676H G9SRBC201RC OMRON Security module Basic 2 OSSDs 2A 1Aux 17,6 mm 24vdc Reset M/To

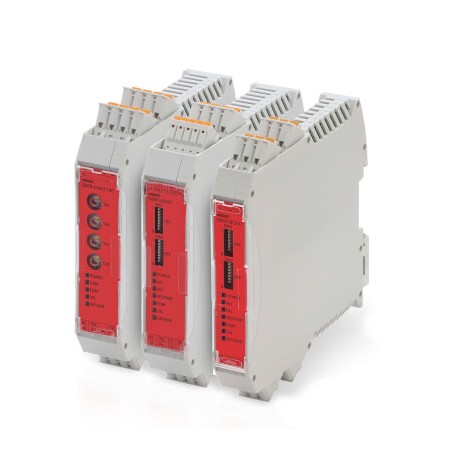

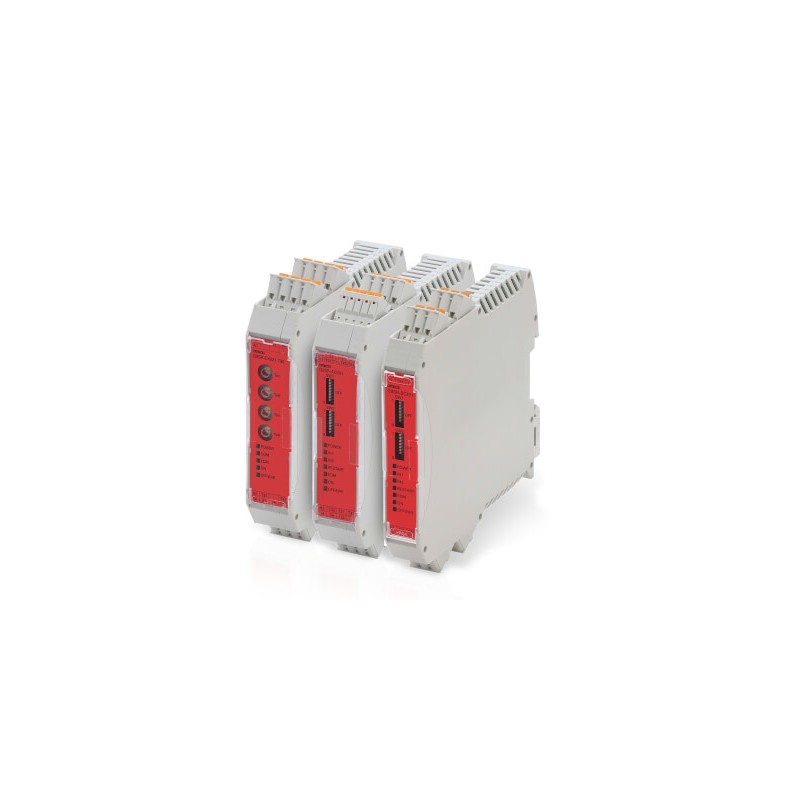

OMRON G9SR-BC201-RC AA041676H G9SRBC201RC - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

G9SR-BC201-RC AA041676H G9SRBC201RC OMRON Security module Basic 2 OSSDs 2A 1Aux 17,6 mm 24vdc Reset M/To

Reference: G9SR-BC201-RC

Code: AA041676H

Catalog Number: G9SRBC201RC

Manufacturer: OMRON

Description:

Security module Basic 2 OSSDs 2A 1Aux 17,6 mm 24vdc Reset M/To
Safety relay unit, 24VDC, 2 safety 2A max, aux. output

Categories:

  • Relays > Device for monitoring of safety-related circuits
  • OMRON > Security Controllers > G9SR

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 147,97 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

Compact safety relay unit family

G9SR family modules operate standalone and as a system with input and output extension. All modules are simple to set up using DIP-switches and provide clear diagnosis via LEDs on the front.

  • Three modules for all safety relay unit applications
  • Solid-state outputs for long life and high current safety relay outputs
  • Detailed LED indications enable easy diagnosis
  • Safe on- and off-delay function up to PLe
  • Up to PLe according to EN ISO 13949-1 and SIL 3 according to EN 61508

Ordering information

Advanced unit

Safety outputs

Auxiliary outputs

No. of input channels

Rated voltage

Terminal block type

Order code

Instantaneous

2 PST-NO (contact)

1 PNP transistor output

1 or 2 channels

24 VDC

removable cage clamp terminals

G9SR-AD201-RC

Basic unit

Safety outputs

Auxiliary outputs

No. of input channels

Rated voltage

Terminal block type

Order code

Instantaneous

2 P channel MOS FET transistor output

1 PNP transistor output

1 or 2 channels

24 VDC

removable cage clamp terminals

G9SR-BC201-RC

Expansion unit

Safety outputs

Auxiliary outputs

Rated voltage

Terminal block type

Order code

Instantaneous

ON/OFF-delayed

-

3 PST-NO (contact)1

1 (solid state) PNP transistor outputs

24 VDC

removable cage clamp terminals

G9SR-EX031-T90-RC

Specifications

Power input

Item

G9SR-AD_

G9SR-BC_

G9SR-EX_

Rated supply voltage

19.2 to 28.8 VDC (24 VDC ±20%)

Inputs

Item

G9SR-AD_

G9SR-BC_

G9SR-EX_

Safety input

Operating voltage: 17 VDC to 28.8 VDC,
internal impedance: Approx. 3 kΩ

Feedback/reset input

Outputs

Item

G9SR-BC_

G9SR-AD_

G9SR-EX_

Instantaneous safety output

P channel MOS FET transistor output

Load current (Using 2 outputs): 2 A DC max.

-

Auxiliary output

PNP transistor output
Load current: 500 mA max.

Rated load

-

250 VAC, 5 A AC15 (inductive load)

Rated carry current

-

5 A

Maximum switching voltage

-

250 VAC

Characteristics

Item

G9SR-BC_

G9SR-AD_

G9SR-EX_

Operating time (OFF to ON)

150 ms max.

Response time (ON to OFF)

50 ms max.

Durability

Electrical

-

100,000 cycles min.

Mechanical

-

10,000,000 cycles min.

Ambient temperature

-10 to 55°C (with no icing or condensation)

1.The ON/OFF delay time can be set in 16 steps as follows: 0/0.1/0.2/0.5/1/1.5/2/2.5/5/10/20/30/45/60/75/90 s

ETIM for 395791 Relays (EC001449)

Feature nameStop category according to IEC 60204 (EF007498)
Feature valueOther
Feature namePerformance level according to EN ISO 13849-1 (EF007399)
Feature valueLevel e
Feature nameType of safety according to IEC 61496-1 (EF004105)
Feature value4
Feature nameModel (EF000010)
Feature valueBasic device
Feature nameEvaluation inputs (EF008245)
Feature value1-channel or 1- and 2-channel
Feature nameType of electric connection (EF003961)
Feature valueSpring clamp connection
Feature nameSIL according to IEC 61508 (EF009889)
Feature value3
Feature nameVoltage type (supply voltage) (EF002991)
Feature valueDC
Feature nameWith approval for TÜV (EFDE0031)
Feature valueNo
Feature nameSuitable for monitoring of proximity switches (EF007267)
Feature valueYes
Feature nameSuitable for monitoring of emergency-stop circuits (EF007268)
Feature valueYes
Feature nameSuitable for monitoring of optoelectronic protection equipment (EF007269)
Feature valueYes
Feature nameWith detachable clamps (EF003340)
Feature valueYes
Feature nameWith start input (EF003342)
Feature valueNo
Feature nameWith muting function (EF004057)
Feature valueNo
Feature nameSuitable for monitoring of valves (EF007272)
Feature valueYes
Feature nameWith approval according to UL (EF001783)
Feature valueYes
Feature nameSuitable for monitoring of tactile sensors (EF007271)
Feature valueYes
Feature nameWith feedback circuit (EF003343)
Feature valueNo
Feature nameSuitable for monitoring of magnetic switches (EF007266)
Feature valueYes
Feature nameSuitable for monitoring of position switches (EF007270)
Feature valueYes
Feature nameSuitable for rail mounting (EF003972)
Feature valueYes
Feature nameWith approval for BG BIA (EF004145)
Feature valueNo
Feature nameNumber of outputs, signalling function, undelayed, with contact (EF003348)
Feature value0
Feature nameNumber of outputs, safety related, undelayed, semiconductors (EF003346)
Feature value2
Feature nameNumber of outputs, safety related, delayed, semiconductors (EF003347)
Feature value0
Feature nameNumber of outputs, safety related, delayed, with contact (EF003345)
Feature value0
Feature nameNumber of outputs, signalling function, delayed, with contact (EF003349)
Feature value0
Feature nameWidth (EF000008)
Feature value17.6 mm
Feature nameNumber of outputs, signalling function, delayed, semiconductors (EF003351)
Feature value0
Feature nameHeight (EF000040)
Feature value99 mm
Feature nameNumber of outputs, safety related, undelayed, with contact (EF003344)
Feature value0
Feature nameNumber of outputs, signalling function, undelayed, semiconductors (EF003350)
Feature value1
Feature nameDepth (EF000049)
Feature value114.5 mm
Feature nameSupply voltage DC (EF007534)
Feature value19.2 V

DATASHEET - PDF

Title
Size
Type
G9SR-BC201-RC G9SRBC201RC AA041676H g9sr_brochure_en.pdf
7 Mbytes
PDF CATALOG OMRON 2024 EN
25 Mbytes
