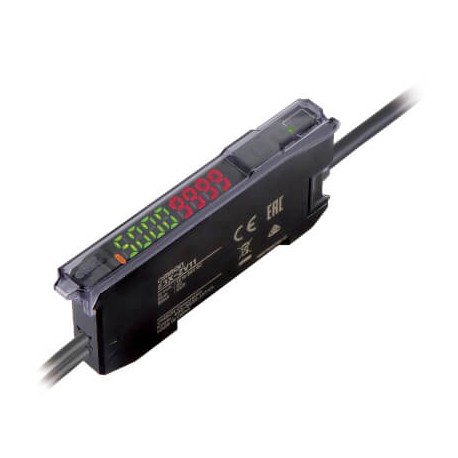

E3X-ZV51 2M E3X 2014H E3XZV512M OMRON Fiber amplifier, twin digital display, smart tuning, PNP, single outpu..
E3X-ZV51 2M
E3X 2014H
E3XZV512M
OMRON
Fiber amplifier, twin digital display, smart tuning, PNP, single output, external input, 2 m cable
Sensors > Optical fibre sensor / optical fibre amplifier
Photoelectric sensors > E3X
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Related products
▲Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP50 |
| Housing material (EF001596) | Plastic |
| Operation agent-safety class (EF003982) | Safety class 3 |
| Voltage type (EF000187) | DC |
| Construction type housing (EF004008) | Cuboid |
| Laser protection class (EF004027) | Other |
| Setting procedure (EF003994) | Teach-In |
| Indication (EF000350) | Digital |
| Type of switch function (EF003963) | Programmable/configurable |
| Type of electric connection (EF003961) | Cable |
| Material fibre optics core (EF004137) | Plastic |
| Type of light (EF004029) | Polarity free red light |
| Material of cable sheath (EF004136) | Polyvinyl chloride (PVC) |
| Type of switching output (EF003962) | PNP |
| Analogue output 0 mA ... 20 mA (EF006808) | No |
| Analogue output 4 mA ... 20 mA (EF006810) | No |
| Analogue output -10 V ... +10 V (EF006809) | No |
| Analogue output 0 V ... 10 V (EF006807) | No |
| With blanking function (EF003968) | No |
| With time function (EF003582) | Yes |
| No-load current (EF004028) | 0.1 mA |
| Number of semiconductor outputs with signalling function (EF003945) | 1 |
| Switching frequency (EF003587) | 10000 Hz |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Width amplifier (EF007095) | 10 mm |
| AWG-number (EF007010) | 26 |
| Height amplifier (EF007284) | 36.5 mm |
| Length amplifier (EF007335) | 75 mm |
| Max. output current (EF001315) | 100 mA |
| Rated control supply voltage DC (EF003980) | 12 V |
| Ambient temperature (EF002386) | -25 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 28 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| E3X-ZV51 2M E3XZV512M E3X 2014H EN_E3X-ZV51-2M.pdf | 7 Mbytes |
|
