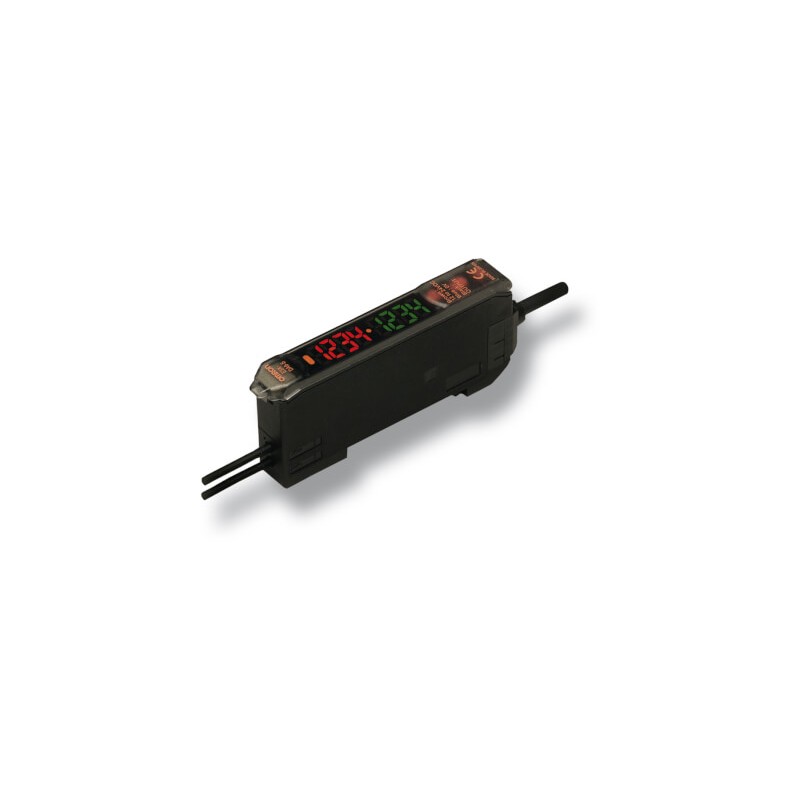

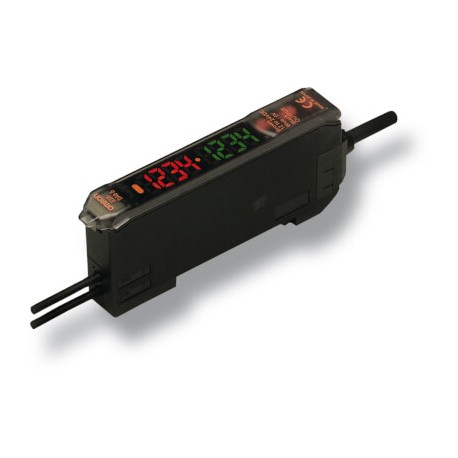

E3X-DAH41-S 2M 323830 OMRON Dual Display dc 3 PNP Teach-in LED Infrared

E3X-DAH41-S 2M

323830

OMRON

Available Ship on today

Dual Display dc 3 PNP Teach-in LED Infrared

More details


Photoelectric sensors > E3X

* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Features

Digital fiber amplifier with infrared LED

The digital fiber amplifiers with infrared LED are ideal for water detection applications or where visible light is not desired.

  • Infrared LED
  • LED power control and signal processing function

Ordering information

Pre-wired

Item

Order code (for pre-wired types with 2 m cable length)

NPN output

PNP output

Infrared light

E3X-DAH11-S 2M

E3X-DAH41-S 2M

Connector version

Item

Order code

NPN output

PNP output

Infrared light (fiber amplifier connector)1

E3X-DAH6-S

E3X-DAH8-S

Fiber amplifier connectors

Shape

Type

Comment

Order code


Fiber amplifier
connector

2 m PVC cable

E3X-CN21


30 cm PVC cable with M12 plug connector (4 pin)

E3X-CN21-M1J 0.3M

30 cm PVC cable with M8 plug connector (4 pin)

E3X-CN21-M3J-2 0.3M

Specifications

Amplifier units with cables

Item

NPN output

E3X-DAH11-S, E3X-DAH6-S

PNP output

E3X-DAH41-S, E3X-DAH8-S

Light source (wave length)

Infrared LED

Power supply voltage

12 to 24 VDC±10%, ripple (p-p) 10% max.

Protective circuits

Power supply reverse polarity protection, output short circuit protection, mutual interference prevention

Responce
time

Super-high-speed mode

NPN

48 µs for operation and 50 µs for reset

PNP

53 µs for operation and 55 µs for reset

Standard mode

1 ms for operation and reset respectively

High-resolution mode

4 ms for operation and reset respectively

Sensitivity setting

Teaching and digital up/down keys

Functions

Power tuning

Light emission power and reception gain, digital control method

Timer function

Select from OFF-delay, ON-delay, or one-shot timer. 1 ms to 5 s (1 to 20 ms set in 1-ms increments, 20 to 200 ms set in 10-ms increments,
200 ms to 1 s set in 100-ms increments, and 1 to 5 s set in 1 s-increments)

Digital displays

Incident level + threshold or user specific

Degree of protection

IEC 60529 IP50 (with protective cover attached)

1.Order connector separately
