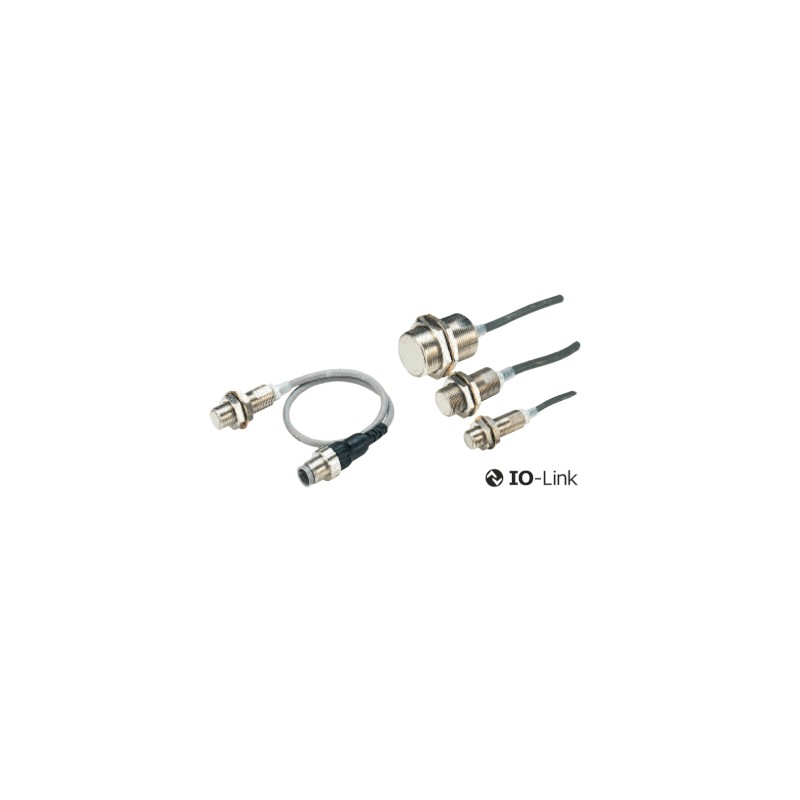

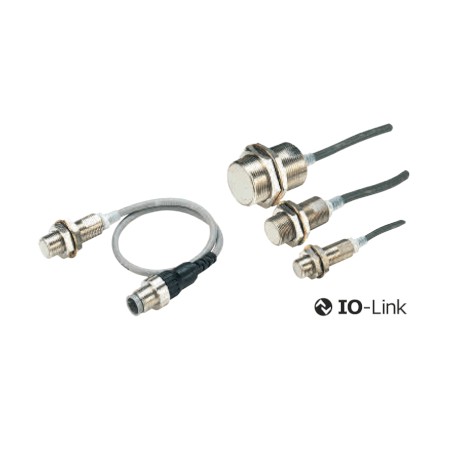

E2E-X10B4-IL2 2M E2E 8289M 671229 OMRON Inductive Short 3h Enr 10mm M30 PNP NA/NC Cable 2m IO LINK COM2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

E2E-X10B4-IL2 2M E2E 8289M 671229 OMRON Inductive Short 3h Enr 10mm M30 PNP NA/NC Cable 2m IO LINK COM2

E2E-X10B4-IL2 2M

E2E 8289M

E2EX10B4IL22MOMS

OMRON

Available Ship on today

Inductive Short-3h Enr 10mm M30 PNP no/NC Cable 2m IO LINK COM2

More details


Proximity Sensors > E2E

* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

Total price: $78.43
Unit price: $78.43

Quantity Price
1+$78.43
2+$74.18
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Features

IO-Link standard proximity sensors as the innovative solution to solve issues at industrial manufacturing sites

IO-Link standard proximity sensors as the innovative solution to solve issues at industrial manufacturing sites

  • Downtime can be reduced through internal diagnostic functions
  • The sudden failure can be decreased by notifying, if objects being too far or too close
  • Maintenance operations are more efficient by identification of each sensor through the IO link network
  • Programmable operation of the sensor reduces the number of models required

Ordering information

DC 3-wire IO-Link models

Appearance

Sensing distance

Connection method

Cable specifications

Operation mode

Pin arrangement

Baud rate

Order code

PNP


M12

3 mm

Pre-wired models (2 m)

PVC
(oil-resistant)

NO/NC
switching

−

COM2

E2E-X3B4-IL2 2M

COM3

E2E-X3B4-IL3 2M

M12 Pre-wired Smartclick connector models (0.3 m)

1: +V

3: 0 V

4: C/Q output

COM2

E2E-X3B4-M1TJ-IL2 0.3M

COM3

E2E-X3B4-M1TJ-IL3 0.3M

M18

7 mm

Pre-wired models (2 m)

−

COM2

E2E-X7B4-IL2 2M

COM3

E2E-X7B4-IL3 2M

M12 Pre-wired Smartclick connector models (0.3 m)

1: +V

3: 0 V

4: C/Q output

COM2

E2E-X7B4-M1TJ-IL2 0.3M

COM3

E2E-X7B4-M1TJ-IL3 0.3M

M30

10 mm

Pre-wired models (2 m)

−

COM2

E2E-X10B4-IL2 2M

COM3

E2E-X10B4-IL3 2M

M12 Pre-wired Smartclick connector models (0.3 m)

1: +V

3: 0 V

4: C/Q output

COM2

E2E-X10B4-M1TJ-IL2 0.3M

COM3

E2E-X10B4-M1TJ-IL3 0.3M

Specifications

DC 3-wire IO-Link models (E2E-X_B4-IL_)

Size

M12

M18

M30

Shielded

Shielded

Item

Model

E2E-X3B4-IL_

E2E-X7B4-IL_

E2E-X10B4-IL_

Sensing distance

3 mm ±10%

7 mm ±10%

10 mm ±10%

Set distance1

0 to 2.4 mm

0 to 5.6 mm

0 to 8 mm

Differential travel

10% max. of sensing distance

Response frequency2

1 kHz

0.5 kHz

0.4 kHz

Power supply voltage

10 to 30 VDC (including 10% ripple (p-p))

Current consumption

20 mA max.

Control output

Load current

100 mA max.

Residual voltage

2 V max. (Load current: 100 mA, Cable length: 2 m)

Indicators1

In the Standard I/O mode (SIO mode): Operation indicator (orange, lit) and stability indicator (green, lit)

In the IO-Link mode: Operation indicator (orange, lit) and communication indicator (green, blinking at 1 s intervals)

Operation mode

PNP NO/NC switching type (Factory setting: NO)

Degree of protection

IEC 60529 IP67, in-house standards: oil-resistant3

Connection method

Pre-wired Models (Standard cable length: 2 m), Pre-wired Connector Models (Standard cable length: 0.3 m)

Materials

Case

Nickel-plated brass

Sensing surface

PBT

Clamping nuts

Nickel-plated brass

Toothed washer

Zinc-plated iron

Main IO-Link functions

Operation mode switching between NO and NC, self diagnosis enabling, excessive proximity judgment distance selecting, timer function of the control output and timer time selecting, instability output (IO-Link mode) ON delay timer time selecting function, monitor output, operating hours read-out, and initial reset

Communication specifications

IO-Link specification

Ver 1.1

Baud rate

-IL3: COM3 (230.4 kbps), -IL2: COM2 (38.4 kbps)

Data length

PD size: 2 bytes, OD size: 1 byte (M-sequence type: TYPE_2_2)

Minimum cycle time

-IL3 (COM3): 1 ms, -IL2 (COM2): 2.3 ms

1.In the Standard I/O mode (SIO mode), use the product in a range that the green stability indication lamp is lit. (Although the lamp is turned off when the object detected has approached excessively, the detection performance is stable.)
In the IO-Link mode, use the product in a range that the Byte1_bit4 for instability detection is zero. (Although the Byte1_bit5 for excessive proximity detection is one if the object detected has approached excessively, the detection performance is stable.)
Please contact your OMRON sales representative regarding assignment of data.
2.The response frequency is an average value. Measurement conditions are as follows: standard sensing object, a distance of twice the standard sensing object, and a set distance of half the sensing distance.
3.Oil resistance in-house standard: Performance with respect to water insoluble oil. (Test at right)E2E-IL_rev01-3.png
