> OMRON>Proximity Sensors>E2A>E2A-S08LS02-WP-C2 2M E2A 7270R E2AS08LS02WPC22MOMC OMRON Stainless steel Long-3h Enr 2mm M8 NPN NC Cable 2m
ANUNCIAR
Previous Product Next Product

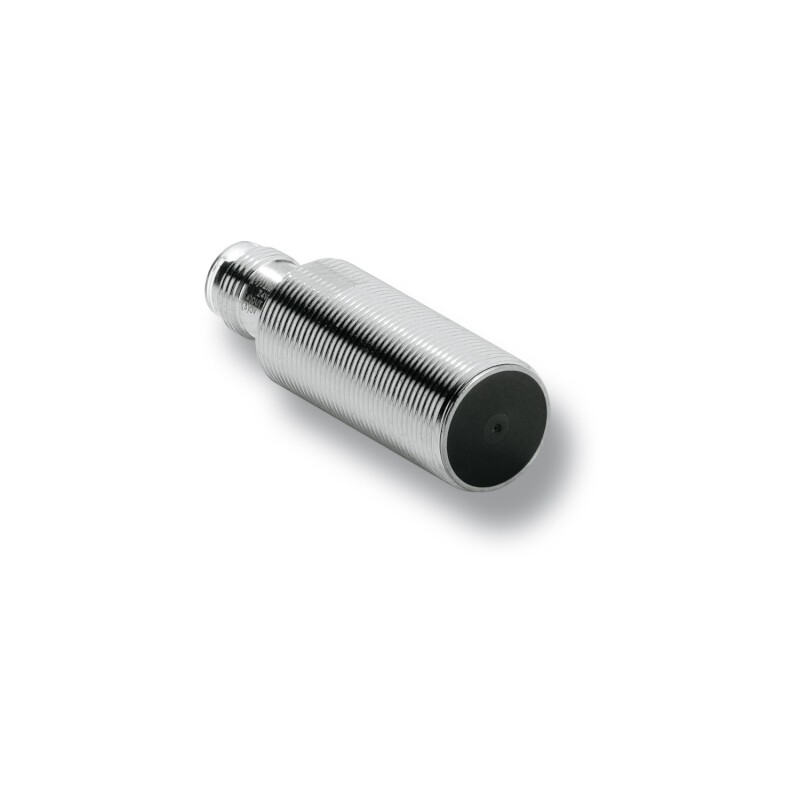

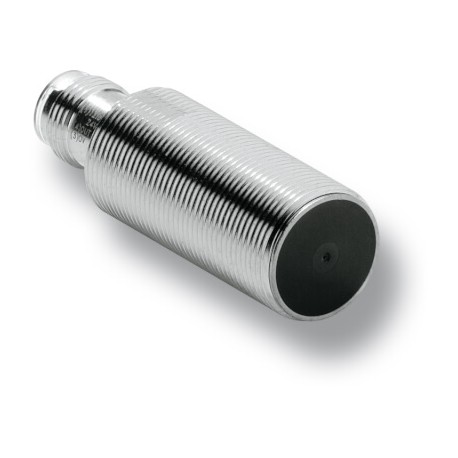

E2A-S08LS02-WP-C2 2M E2A 7270R E2AS08LS02WPC22MOMC OMRON Stainless steel Long-3h Enr 2mm M8 NPN NC Cable 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

E2A-S08LS02-WP-C2 2M E2A 7270R E2AS08LS02WPC22MOMC OMRON Stainless steel Long-3h Enr 2mm M8 NPN NC Cable 2m

E2A-S08LS02-WP-C2 2M

E2A 7270R

E2AS08LS02WPC22MOMC

OMRON

Stainless steel Long-3h Enr 2mm M8 NPN NC Cable 2m

Proximity sensor, inductive, stainless steel, long body, M8, shielded, 2mm, DC, 3-wire, NPN-NC, 2m cable

More details


Sensors > Inductive proximity switch

Proximity Sensors > E2A

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

Total: $90.72
Unit price: $90.72
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


Features

Extended sensing range inductive sensor in cylindrical stainless steel housing

The performance and operational reliability of the E2A family is also available in stainless steel housing.

  • Stainless steel housing (SUS 303)

Ordering information

Pre-wired

Size



Sensing distance

Thread length (overall length)

Output
configuration

Order code (for pre-wired types with 2 m PVC cable)

Operation mode NO

Operation mode NC

M8

¢

-

2.0 mm

27 (40) mm

PNP1

E2A-S08KS02-WP-B1 2M

E2A-S08KS02-WP-B2 2M

-

¢

4.0 mm

21 (40) mm

PNP1

E2A-S08KN04-WP-B1 2M

E2A-S08KN04-WP-B2 2M

M12

¢

-

4.0 mm

34 (50) mm

PNP1

E2A-S12KS04-WP-B1 2M

E2A-S12KS04-WP-B2 2M

-

¢

8.0 mm

27 (50) mm

PNP1

E2A-S12KN08-WP-B1 2M

E2A-S12KN08-WP-B2 2M

M18

¢

-

8.0 mm

39 (59) mm

PNP1

E2A-S18KS08-WP-B1 2M

E2A-S18KS08-WP-B2 2M

-

¢

16.0 mm

29 (59) mm

PNP1

E2A-S18KN16-WP-B1 2M

E2A-S18KN16-WP-B2 2M

M30

¢

-

15.0 mm

44 (64) mm

PNP1

E2A-S30KS15-WP-B1 2M

E2A-S30KS15-WP-B2 2M

-

¢

20.0 mm2

29 (64) mm

PNP1

E2A-S30KN20-WP-B1 2M

E2A-S30KN20-WP-B2 2M

Connector types (M12)E2A-S_rev01-4.png

Size



Sensing distance

Thread length (overall length)

Output
configuration

Order code (for M12 connector types)

Operation mode NO

Operation mode NC

M8

¢

-

2.0 mm

27 (43) mm

PNP1

E2A-S08KS02-M1-B1

E2A-S08KS02-M1-B2

-

¢

4.0 mm

21 (43) mm

PNP1

E2A-S08KN04-M1-B1

E2A-S08KN04-M1-B2

M12

¢

-

4.0 mm

24 (48) mm

PNP1

E2A-S12KS04-M1-B1

E2A-S12KS04-M1-B2

-

¢

8.0 mm

27 (48) mm

PNP1

E2A-S12KN08-M1-B1

E2A-S12KN08-M1-B2

M18

¢

-

8.0 mm

39 (53) mm

PNP1

E2A-S18KS08-M1-B1

E2A-S18KS08-M1-B2

-

¢

16.0 mm

29 (53) mm

PNP1

E2A-S18KN16-M1-B1

E2A-S18KN16-M1-B2

M30

¢

-

15.0 mm

44 (58) mm

PNP1

E2A-S30KS15-M1-B1

E2A-S30KS15-M1-B2

-

¢

20.0 mm2

29 (58) mm

PNP1

E2A-S30KN20-M1-B1

E2A-S30KN20-M1-B2

Specifications

(Exemplary for shielded versions)

Item

M8

M12

M18

M30

E2A-S08KS

E2A-S12KS

E2A-S18KS

E2A-S30KS

Sensing distance

2 mm±10%

4 mm±10%

8 mm±10%

15 mm±10%

Response frequency

1,500 Hz

1,000 Hz

500 Hz

250 Hz

Power supply voltage
(operating voltage)

12 to 24 VDC. Ripple (p-p): 10% max. (10 to 32 VDC)

Protective circuits

Power supply reverse polarity protection, surge suppressor, short-circuit protection

Output reverse polarity protection, power supply reverse polarity protection, surge suppressor,
short-circuit protection

Ambient temperature

Operating

-40 to 70°C

Storage

-40 to 85°C (with no icing or condensation)

Degree of protection

IP67 after IEC 60529; IP69K after DIN 40050 part 9

Material

Case

Stainless steel (SUS 303)

Sensing surface

PBT

1.NPN models are available. For ordering replace “-B1” or “-B2” by “-C1” or “-C2”.

2.Models with longer sensing distances of 30 mm and 35 mm are available.


ETIM for 406779 Sensors (EC002714)
Feature Name Feature Value
Explosion safety category for dust (EF003998) None
Degree of protection (NEMA) (EF011959) Other
Type of interface for safety communication (EF003956) None
Type of actuation (EF006949) Metallic Target
Type of electric connection (EF003961) Cable
Type of interface (EF006977) None
Explosion safety category for gas (EF003997) None
Suitable for safety functions (EF001597) No
Number of protected contact energized outputs (EF003952) 0
Number of protected semiconductor outputs (EF003951) 0
Switching distance (EF003647) 2 mm
Switching frequency (EF003587) 1500 Hz
Number of contact energized outputs with signalling function (EF003946) 0

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGO OMRON AUTOMATION EN.pdf 19 Mbytes
PDF CATALOG OMRON 2024 EN.pdf 25 Mbytes
E2A-S08LS02-WP-C2 2M E2AS08LS02WPC22MOMC E2A 7270R proximity_sensors_brochure_en.pdf 4 Mbytes E2A-S08LS02-WP-C2 2M E2AS08LS02WPC22MOMC E2A 7270R proximity_sensors_brochure_en.pdf
E2A-S08LS02-WP-C2 2M E2AS08LS02WPC22MOMC E2A 7270R d03e_e2a_cylindrical_proximity_sensor_datasheet_en.pdf 443 Kbytes E2A-S08LS02-WP-C2 2M E2AS08LS02WPC22MOMC E2A 7270R proximity_sensors_brochure_en.pdf
