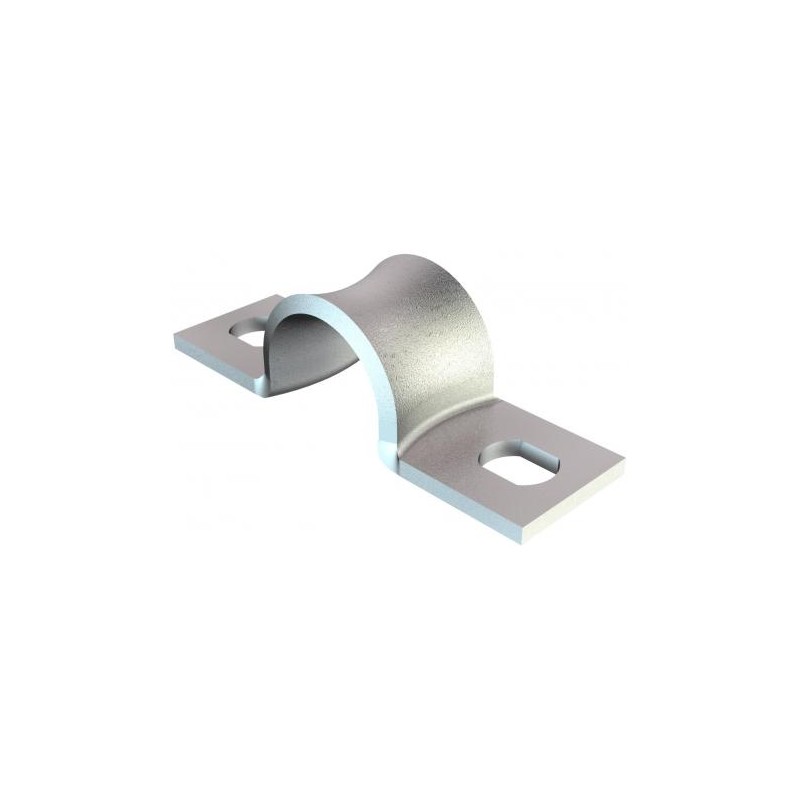

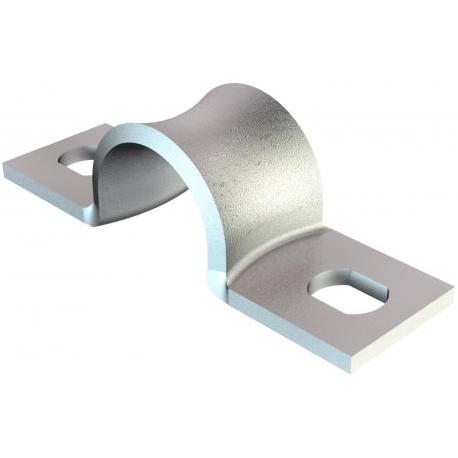

WN 7855 B 4.5 1044079 OBO BETTERMANN STAPLE 1 FOOT EDGES ROUNDED. WN 7855 B 4.5
WN 7855 B 4.5
1044079
OBO BETTERMANN
100
STAPLE 1 FOOT EDGES ROUNDED. WN 7855 B 4.5
WN 7855 B 4.5.2 ft 4.5mm Steel, St, Galvanized, Transparent Passivated Fixing Staple
Fastening clip, plant standard 7855, double-lobe. Dimensions to Siemens standard SN 78550, shape B, with strongly rounded edges, thus particularly suitable for sensitive cables.* Sizes 3 to 10 not suitable for nail device.
Installation material for cables and tubes > Pipe saddle clamp
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,003 kg CO2e / 1 Piece |
|---|---|
| Dimension | 4,5mm |
| Dimension A | 24 mm |
| Dimension b | 6 mm |
| Dimension B | 16 mm |
| Dimension d | 3,2 mm |
| Dimension D | 4,5 mm |
| Dimension e | 4 mm |
| Dimension H | 4 mm |
| Dimension L | 24 mm |
| Dimension t | 1 mm |
| Distance to the wall | no |
| Fastening type | Screw hole |
| For diameter | 4,5 |
| Halogen-free | yes |
|---|---|
| Height | 4 mm |
| Hole size | 3,2 x 4 mm |
| Length | 24 mm |
| Material | Steel |
| Material thickness | 1 mm |
| Nominal diameter | 4,5 mm |
| Number of cables/pipes | 1 |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| Surface | Electrogalvanized, transparently passivated |
| UV-resistant | yes |
| Version for | Two-lobe |
| Width | 6 mm |
| Feature Name | Feature Value |
|---|---|
| Nominal diameter (EF005114) | 4.5 mm |
| Number of cables/conduits (EF004421) | 1 |
| With distance to the wall (EF007571) | No |
| Model (EF000010) | Double clamp |
| Type of fastening (EF002442) | Screw hole |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Galvanic/electrolytic zinc plated |
| Halogen free (EF000025) | Yes |
| Suitable in fire resistance areas (EF007821) | No |
| Plastic sheathed (EF006600) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
