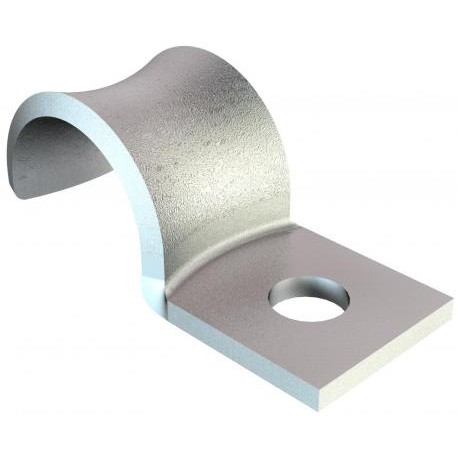

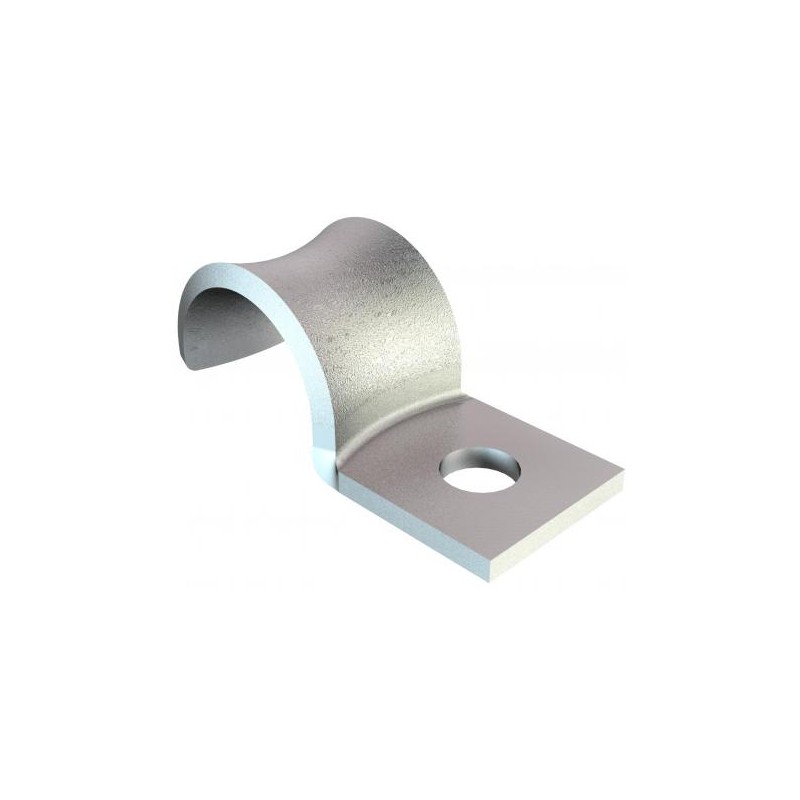

WN 7855 A 12 1043226 OBO BETTERMANN STAPLE 1 FOOT EDGES ROUNDED. WN 7855 12
WN 7855 A 12
1043226
OBO BETTERMANN
100
STAPLE 1 FOOT EDGES ROUNDED. WN 7855 12
Fastening clip, plant standard 7855, single-lobe. Dimensions to Siemens standard SN 78550, shape A, with strongly rounded edges, thus particularly suitable for sensitive cables.* Sizes 2 to 10 not suitable for bolt-firing tool and nail device.
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,014 kg CO2e / 1 Piece |
|---|---|
| Dimension | 12mm |
| Dimension A | 4,5 mm |
| Dimension b | 12 mm |
| Dimension D | 12 mm |
| Dimension d | 4,3 mm |
| Dimension H | 10 mm |
| Dimension L | 13,5 mm |
| Dimension t | 1,5 mm |
| Distance to the wall | no |
| Fastening type | Screw hole |
| For diameter | 12 |
| Halogen-free | yes |
| Height | 10 mm |
|---|---|
| Hole size | 4,3 mm |
| Length | 13,5 mm |
| Material | Steel |
| Material thickness | 1,5 mm |
| Nominal diameter | 12 mm |
| Number of cables/pipes | 1 |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| Surface | Electrogalvanized, transparently passivated |
| UV-resistant | yes |
| Version for | Single-lobe |
| Width | 12 mm |
