WDKH-60110LGR 6175472 OBO BETTERMANN CHANNEL FOR WALL AND CEILING WDKH-60110LGR
WDKH-60110LGR
6175472
OBO BETTERMANN
16 m.

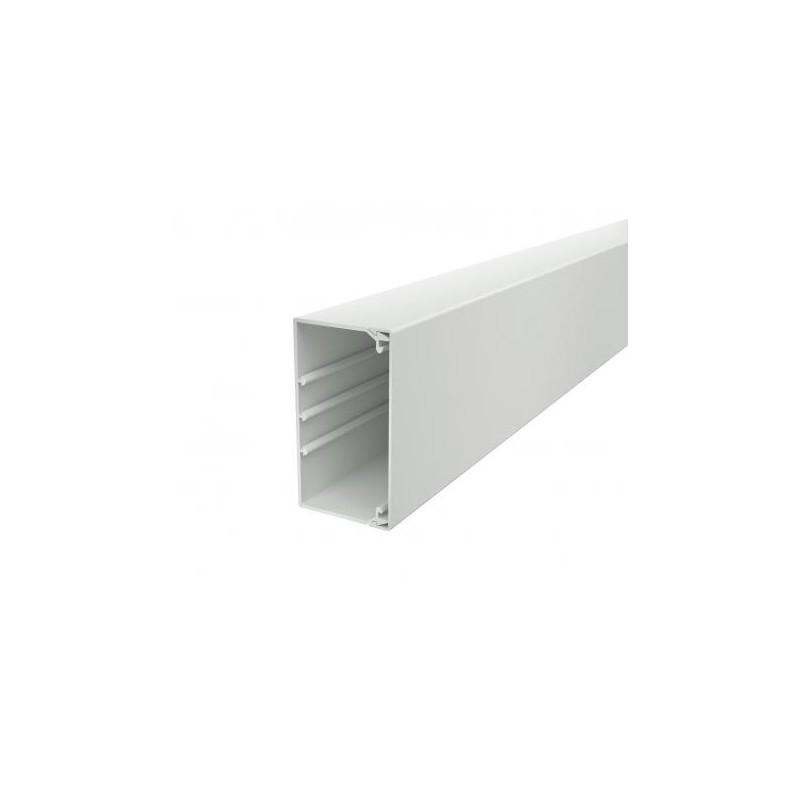

CHANNEL FOR WALL AND CEILING WDKH-60110LGR
Halogen-free wall and ceiling channel 60x110x2000 Light grey, RAL 7035 Polycarbonate/Acrylonitrile-butadiene-styrole, PC/ABS
Trunking, type WDKH 60110. Trunking cover and base with base perforation made of halogen-free plastic including cover fixing devices.
Installation ducts for wall and ceiling > Mini/Maxi trunking
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Antibacterial treatment | no |
|---|---|
| Base perforation | with base perforation |
| Cable retaining clip | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 5,7368 kg CO2e / 1 Meter |
| Colour | Light grey; RAL 7035 |
| Delivery on a roll | no |
| Dimension | 60x110x2000 |
| Duct connector | no |
| Fastening type | Base perforation |
| Halogen-free | yes |
| Height | 60 mm |
| Length | 2000 mm |
| Maintain electrical functions | no |
|---|---|
| Material | Polycarbonate/Acrylnitrile-butadiene-styrene |
| Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket) | 23 |
| Permitted temperature range, max. | 90 °C |
| Permitted temperature range, min. | -5 °C |
| Protection rating | IP30 |
| Protection rating IK code | IK07. |
| Protective film | no |
| Usable cross-section | 5660 mm² |
| Version, cable trunking cover | Loose |
| Width | 108,5 mm |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 60 mm |
| Width (EF000008) | 108.5 mm |
| Length (EF001438) | 2000 mm |
| Useful cross section (EF005140) | 5660 mm² |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Other |
| Halogen free (EF000025) | Yes |
| Anti-bacterial treatment (EF023790) | No |
| Suitable for circuit integrity (EF007806) | No |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| Number of permanent partitions (EF004408) | 0 |
| Number of plug-in partitions (EF004438) | 0 |
| Type of fastening (EF002442) | Bottom perforation |
| Cover model (EF009212) | Loose |
| With cable fixing clip (EF004815) | Yes |
| With protective foil (EF005266) | No |
| With duct connector (EF004826) | No |
| Delivery on roll (EF005957) | No |
| Degree of protection (IP) (EF005474) | IP30 |
| Impact strength (EF004293) | IK07 |
| Operating temperature (EF001742) | -5 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CABLE ROUTING SYSTEMS OBO EN.pdf | 15 Mbytes |
|
| PDF CATALOGUE INSTALLATION SYSTEMS OBO EN.pdf | 23 Mbytes |
|
