WDKH-60090LGR 6175469 OBO BETTERMANN CHANNEL FOR WALL AND CEILING WDKH-60090LGR
WDKH-60090LGR
6175469
OBO BETTERMANN
24 m.
CHANNEL FOR WALL AND CEILING WDKH-60090LGR

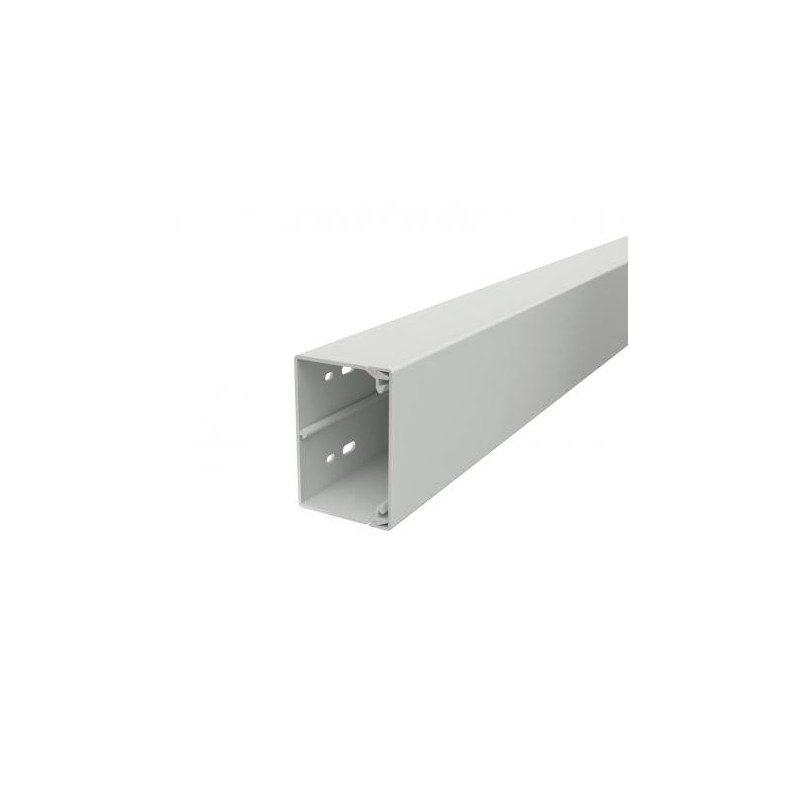

Halogen-free wall and ceiling channel 60x90x2000 Light grey, RAL 7035 Polycarbonate/Acrylonitrile-butadiene-styrol, PC/ABS
Trunking, type WDKH 60090. Trunking cover and base with base perforation made of halogen-free plastic including cover fixing devices.
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Antibacterial treatment | no |
|---|---|
| Base perforation | with base perforation |
| Cable retaining clip | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 4,7356 kg CO2e / 1 Meter |
| Colour | Light grey; RAL 7035 |
| Delivery on a roll | no |
| Dimension | 60x90x2000 |
| Duct connector | no |
| Fastening type | Base perforation |
| Halogen-free | yes |
| Height | 60 mm |
| Length | 2000 mm |
| Maintain electrical functions | no |
|---|---|
| Material | Polycarbonate/Acrylnitrile-butadiene-styrene |
| Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket) | 19 |
| Permitted temperature range, max. | 90 °C |
| Permitted temperature range, min. | -5 °C |
| Protection rating | IP30 |
| Protection rating IK code | IK07. |
| Protective film | no |
| Usable cross-section | 4360 mm² |
| Version, cable trunking cover | Loose |
| Width | 90 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CABLE ROUTING SYSTEMS OBO EN.pdf | 15 Mbytes |
|
| PDF CATALOGUE INSTALLATION SYSTEMS OBO EN.pdf | 23 Mbytes |
|
