WDK60210LGR 6027172 OBO BETTERMANN CHANNEL FOR WALL AND CEILING WDK60210LGR
WDK60210LGR
6027172
OBO BETTERMANN
8 m.
CHANNEL FOR WALL AND CEILING WDK60210LGR

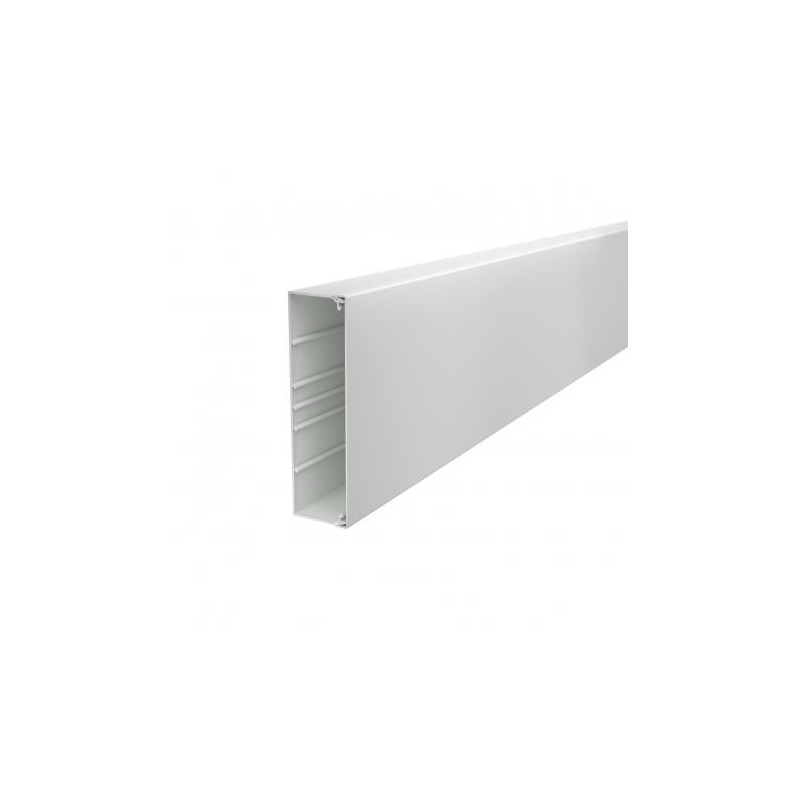

Channel for wall and ceiling WDK60210LGR, with perforations in the base 60x210x2000 Polyvinyl chloride, PVC,
Trunking, type WDK 60210. Trunking cover and base with base perforation.Four cover fixing devices included.Lid clamp can be moved along the entire length of the trunking.Device installation is possible with the accessory mounting box, type 2390.
Installation ducts for wall and ceiling > Mini/Maxi trunking
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Antibacterial treatment | no |
|---|---|
| Cable retaining clip | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 4,6159 kg CO2e / 1 Meter |
| Colour | Light grey; RAL 7035 |
| Delivery on a roll | no |
| Dimension | 60x210x2000 |
| Duct connector | no |
| Fastening type | Base perforation |
| Halogen-free | no |
| Height | 60 mm |
| Length | 2000 mm |
| Maintain electrical functions | no |
| Material | Polyvinylchloride |
| Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket) | 58 |
|---|---|
| Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket) | 48 |
| Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket) | 44 |
| Number of insertable partitions | 3 |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -5 °C |
| Protection rating | IP30 |
| Protection rating IK code | IK04 |
| Protective film | no |
| Usable cross-section | 10030 mm² |
| Version, cable trunking cover | Loose |
| Width | 210 mm |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 60 mm |
| Width (EF000008) | 210 mm |
| Length (EF001438) | 2000 mm |
| Useful cross section (EF005140) | 10030 mm² |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Polyvinyl chloride (PVC) |
| Halogen free (EF000025) | No |
| Anti-bacterial treatment (EF023790) | No |
| Suitable for circuit integrity (EF007806) | No |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| Number of permanent partitions (EF004408) | 0 |
| Number of plug-in partitions (EF004438) | 3 |
| Type of fastening (EF002442) | Bottom perforation |
| Cover model (EF009212) | Loose |
| With cable fixing clip (EF004815) | Yes |
| With protective foil (EF005266) | No |
| With duct connector (EF004826) | No |
| Delivery on roll (EF005957) | No |
| Degree of protection (IP) (EF005474) | IP30 |
| Impact strength (EF004293) | IK04 |
| Operating temperature (EF001742) | -5 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CABLE ROUTING SYSTEMS OBO EN.pdf | 15 Mbytes |
|
| PDF CATALOGUE INSTALLATION SYSTEMS OBO EN.pdf | 23 Mbytes |
|
