WDK40110LGR 6027040 OBO BETTERMANN CHANNEL FOR WALL AND CEILING WDK40110LGR
WDK40110LGR
6027040
OBO BETTERMANN
24 m.

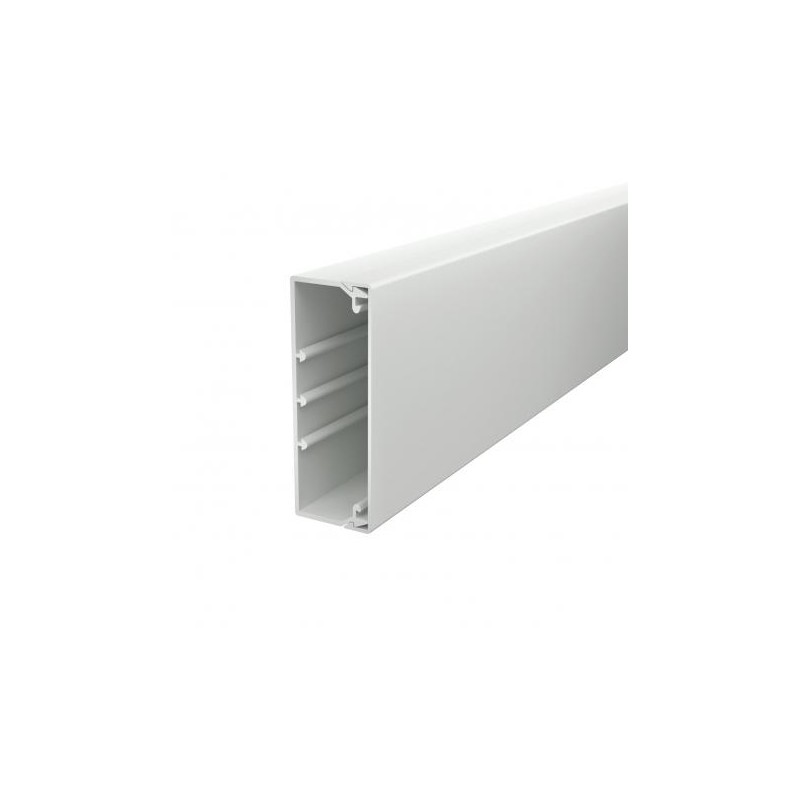

CHANNEL FOR WALL AND CEILING WDK40110LGR
Wall and ceiling channel with perforations at the base 40x110x2000 Light grey, RAL 7035 Polyvinyl chloride, PVC
Trunking, type WDK 40110. Trunking cover and base with base perforation.Four cover clips includedLid clamp can be moved along the entire length of the trunking.
Installation ducts for wall and ceiling > Mini/Maxi trunking
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Antibacterial treatment | no |
|---|---|
| Cable retaining clip | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,0462 kg CO2e / 1 Meter |
| Colour | Light grey; RAL 7035 |
| Delivery on a roll | no |
| Dimension | 40x110x2000 |
| Duct connector | no |
| Fastening type | Base perforation |
| Halogen-free | no |
| Height | 40 mm |
| Length | 2000 mm |
| Maintain electrical functions | no |
| Material | Polyvinylchloride |
| Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket) | 18 |
|---|---|
| Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket) | 15 |
| Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket) | 14 |
| Number of insertable partitions | 1 |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -5 °C |
| Protection rating | IP30 |
| Protection rating IK code | IK04 |
| Protective film | no |
| Usable cross-section | 3236 mm² |
| Version, cable trunking cover | Loose |
| Width | 110 mm |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 40 mm |
| Width (EF000008) | 110 mm |
| Length (EF001438) | 2000 mm |
| Useful cross section (EF005140) | 3236 mm² |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Polyvinyl chloride (PVC) |
| Halogen free (EF000025) | No |
| Anti-bacterial treatment (EF023790) | No |
| Suitable for circuit integrity (EF007806) | No |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| Number of permanent partitions (EF004408) | 0 |
| Number of plug-in partitions (EF004438) | 1 |
| Type of fastening (EF002442) | Bottom perforation |
| Cover model (EF009212) | Loose |
| With cable fixing clip (EF004815) | Yes |
| With protective foil (EF005266) | No |
| With duct connector (EF004826) | No |
| Delivery on roll (EF005957) | No |
| Degree of protection (IP) (EF005474) | IP30 |
| Impact strength (EF004293) | IK04 |
| Operating temperature (EF001742) | -5 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CABLE ROUTING SYSTEMS OBO EN.pdf | 15 Mbytes |
|
| PDF CATALOGUE INSTALLATION SYSTEMS OBO EN.pdf | 23 Mbytes |
|
