WDK40040CW 6025412 OBO BETTERMANN CHANNEL FOR WALL AND CEILING WDK40040CW
WDK40040CW
6025412
OBO BETTERMANN
36 m.

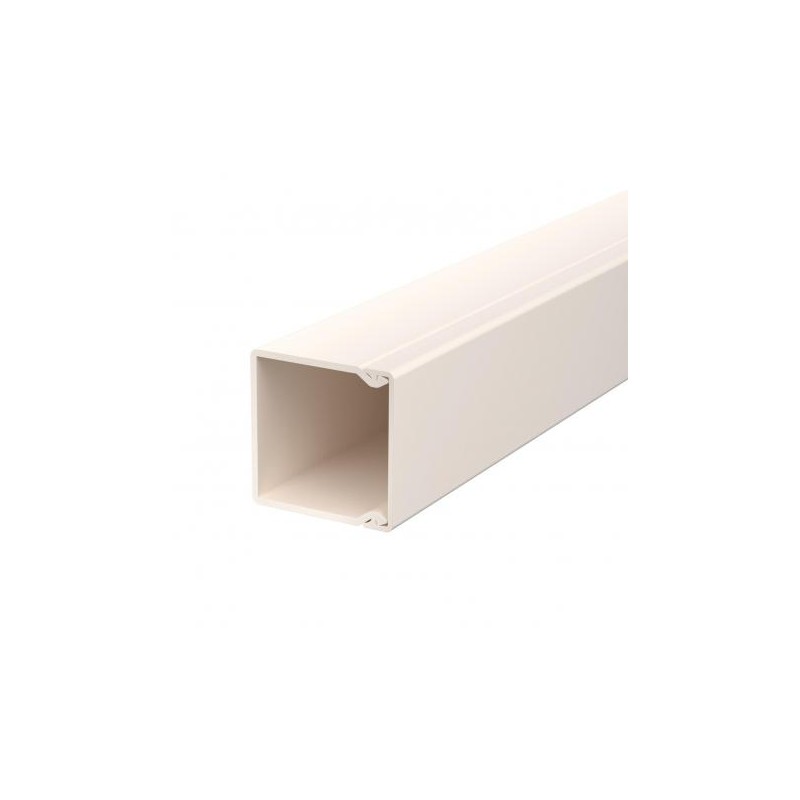

CHANNEL FOR WALL AND CEILING WDK40040CW
Channel for wall and ceiling with perforations in the base 40x40x2000 white 9001 Polyvinyl chloride, PVC
Trunking, type WDK 40040. Trunking cover and base with base perforation.
Installation ducts for wall and ceiling > Mini/Maxi trunking
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Antibacterial treatment | no |
|---|---|
| Cable retaining clip | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,8114 kg CO2e / 1 Meter |
| Colour | Cream; RAL 9001 |
| Delivery on a roll | no |
| Dimension | 40x40x2000 |
| Duct connector | no |
| Fastening type | Base perforation |
| Halogen-free | no |
| Height | 40 mm |
| Length | 2000 mm |
| Maintain electrical functions | no |
| Material | Polyvinylchloride |
|---|---|
| Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket) | 7 |
| Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket) | 6 |
| Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket) | 5 |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -5 °C |
| Protection rating | IP30 |
| Protection rating IK code | IK04 |
| Protective film | no |
| Usable cross-section | 1314 mm² |
| Version, cable trunking cover | Loose |
| Width | 40 mm |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 40 mm |
| Width (EF000008) | 40 mm |
| Length (EF001438) | 2000 mm |
| Useful cross section (EF005140) | 1314 mm² |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Polyvinyl chloride (PVC) |
| Halogen free (EF000025) | No |
| Anti-bacterial treatment (EF023790) | No |
| Suitable for circuit integrity (EF007806) | No |
| Colour (EF000007) | White |
| RAL-number (EF000116) | 9001 |
| Number of permanent partitions (EF004408) | 0 |
| Number of plug-in partitions (EF004438) | 0 |
| Type of fastening (EF002442) | Bottom perforation |
| Cover model (EF009212) | Loose |
| With cable fixing clip (EF004815) | No |
| With protective foil (EF005266) | No |
| With duct connector (EF004826) | No |
| Delivery on roll (EF005957) | No |
| Degree of protection (IP) (EF005474) | IP30 |
| Impact strength (EF004293) | IK04 |
| Operating temperature (EF001742) | -5 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CABLE ROUTING SYSTEMS OBO EN.pdf | 15 Mbytes |
|
| PDF CATALOGUE INSTALLATION SYSTEMS OBO EN.pdf | 23 Mbytes |
|
