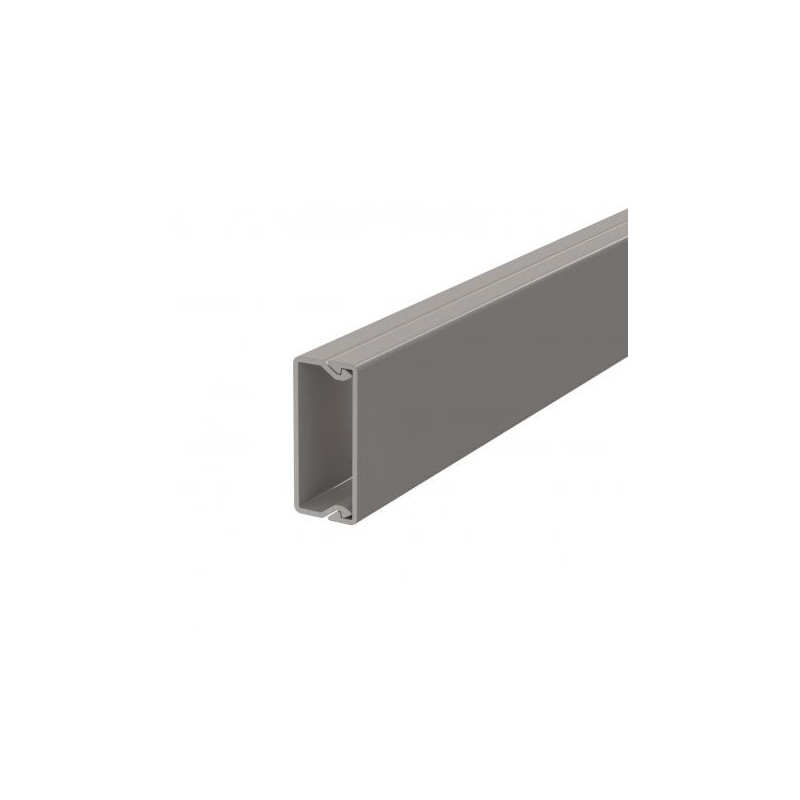

WDK15040GR 6025137 OBO BETTERMANN CHANNEL FOR WALL AND CEILING WDK15040GR
WDK15040GR
6025137
OBO BETTERMANN
36 m.
CHANNEL FOR WALL AND CEILING WDK15040GR
Channel for wall and ceiling with perforations in the base 15x40x2000 gray stone 7030 Polyvinyl chloride, PVC
Trunking, type WDK 15040. Trunking cover and base with base perforation.
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Antibacterial treatment | no |
|---|---|
| Cable retaining clip | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5242 kg CO2e / 1 Meter |
| Colour | Stone grey; RAL 7030 |
| Delivery on a roll | no |
| Dimension | 15x40x2000 |
| Duct connector | no |
| Fastening type | Base perforation |
| Halogen-free | no |
| Height | 17,5 mm |
| Length | 2000 mm |
| Maintain electrical functions | no |
| Material | Polyvinylchloride |
|---|---|
| Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket) | 3 |
| Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket) | 2 |
| Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket) | 2 |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -5 °C |
| Protection rating | IP30 |
| Protection rating IK code | IK04 |
| Protective film | no |
| Usable cross-section | 523 mm² |
| Version, cable trunking cover | Loose |
| Width | 40 mm |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 17.5 mm |
| Width (EF000008) | 40 mm |
| Length (EF001438) | 2000 mm |
| Useful cross section (EF005140) | 523 mm² |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Polyvinyl chloride (PVC) |
| Halogen free (EF000025) | No |
| Anti-bacterial treatment (EF023790) | No |
| Suitable for circuit integrity (EF007806) | No |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7030 |
| Number of permanent partitions (EF004408) | 0 |
| Number of plug-in partitions (EF004438) | 0 |
| Type of fastening (EF002442) | Bottom perforation |
| Cover model (EF009212) | Loose |
| With cable fixing clip (EF004815) | No |
| With protective foil (EF005266) | No |
| With duct connector (EF004826) | No |
| Delivery on roll (EF005957) | No |
| Degree of protection (IP) (EF005474) | IP30 |
| Impact strength (EF004293) | IK04 |
| Operating temperature (EF001742) | -5 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CABLE ROUTING SYSTEMS OBO EN.pdf | 15 Mbytes |
|
| PDF CATALOGUE INSTALLATION SYSTEMS OBO EN.pdf | 23 Mbytes |
|
