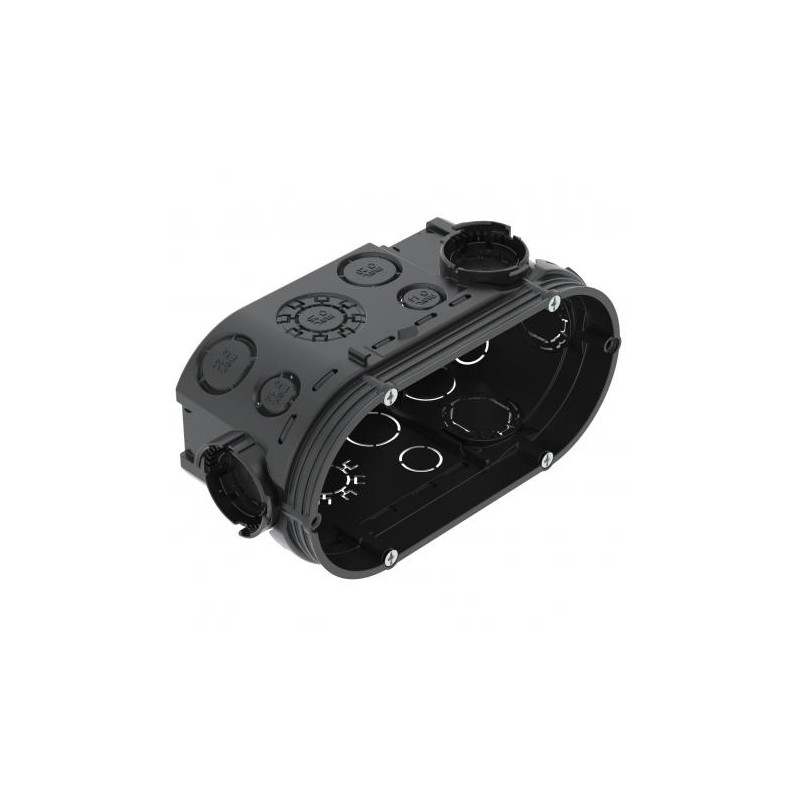

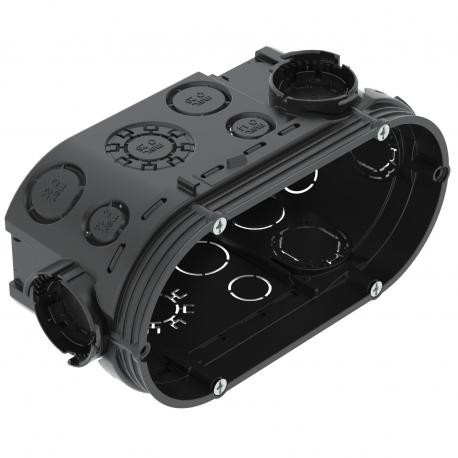

UG 66-DV 2003720 OBO BETTERMANN UP Meccan box. Surface UG 66-DV, double combination 2x Ø60xH66mm Polypropyle..
UG 66-DV
2003720
OBO BETTERMANN
10
UP Meccan box. Surface UG 66-DV, double combination 2x Ø60xH66mm Polypropylene, PP
UP Box of mecan. Double combination surface UG 66-DV
UP Flush-mounted device connection box 66, double version. Double flush-mounted device box, for use in masonry with an installation depth of at least 66 mm. • With 4 connectors with bayonet lock, couplable on both sides• 6 combination pipe entries of Ø 20 and 25 mm• 8 entries up to Ø 20 mm• 6 entries up to Ø 14 mm• 2 entries up to Ø 20 mm in the baseTested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Airtight | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1449 kg CO2e / 1 Piece |
| Colour | Jet black |
| Combination entries Ø 20 / 25 mm | 6 |
| Cover | Without |
| Cover fastening | Screws , |
| Device fixing | Screws or spreading claws |
| Dimension | 2x Ø60xH66mm |
| Entry from rear | yes |
| Flame-resistant | acc. to VDE 0471/IEC 60695-2-11, test temperature 650°C |
| for pipe diameter | 20/25 mm |
| Halogen-free | yes |
| Height | 66 mm |
| Impact-resistant | no |
|---|---|
| Length | 148 mm |
| Material | Polypropylene |
| No. of entries | 22 |
| Nominal cross-section, max. | 2,5 mm² |
| Nominal cross-section, min. | 1,5 mm² |
| Pipe entries Ø 20 mm | 10 |
| Protection rating | IP30 |
| Rated voltage | 400 V |
| Shape | Oval |
| Type of entry | NYM cables, data cables and corrugated pipes |
| Type of housing penetration | Break-out opening |
| Width | 60 mm |
| Feature Name | Feature Value |
|---|---|
| Shape (EF000051) | Oval |
| Construction type (EF000767) | Device connection box (round/square) |
| Model (EF000010) | Double |
| Length (EF001438) | 148 mm |
| Width (EF000008) | 60 mm |
| Depth (EF005457) | 66 mm |
| Mounting switching equipment (EF004508) | Screw or spread out |
| Housing feed-through by break-out opening (EF009763) | Yes |
| Housing feed-through by seal membrane (EF009206) | No |
| Housing feed-through by nozzle (EF009207) | No |
| Housing feed-through by step membrane (EF009208) | No |
| For tube diameter (EF005496) | 20/25 mm |
| Inlet from the rear (EF005604) | Yes |
| Number of inlets (EF003593) | 22 |
| Material (EF002169) | Plastic |
| Halogen free (EF000025) | Yes |
| Colour (EF000007) | Black |
| Degree of protection (IP) (EF005474) | IP30 |
| Cover attachment (EF004586) | Screwed |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
