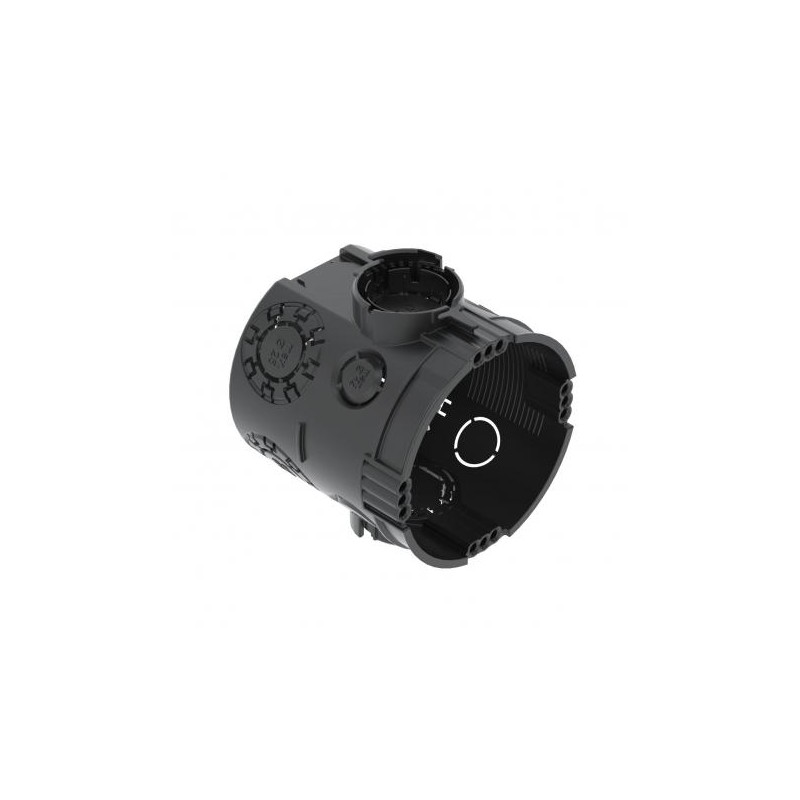

UG 66 2003702 OBO BETTERMANN UP Box for UG 66 mechanisms, with connector for Ø60mm group, H66mm Polypropylen..
UG 66
2003702
OBO BETTERMANN
25
UP Box for UG 66 mechanisms, with connector for Ø60mm group, H66mm Polypropylene, PP
UP Box for mechanisms UG 66
UP Flush-mounted device connection box 66. Flush-mounted device box, for use in masonry with an installation depth of at least 66 mm.• 4 x 3 screw domes• Connection nozzle with bayonet lock, couplable on both sides• 6 combination pipe entries up to Ø 20 and 25 mm• 4 entries up to Ø 20 mm• 2 entries up to Ø 14 mm• 1 entry up to Ø 20 mm in the baseTested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Airtight | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,058 kg CO2e / 1 Piece |
| Colour | Jet black |
| Combination entries Ø 20 / 25 mm | 6 |
| Cover | Without |
| Cover fastening | Screws , |
| Device fixing | Screws or spreading claws |
| Diameter | 60 mm |
| Dimension | Ø60mm, H66mm |
| Entry from rear | yes |
| Flame-resistant | acc. to VDE 0471/IEC 60695-2-11, test temperature 650°C |
| for pipe diameter | 20/25 mm |
| Halogen-free | yes |
| Height | 66 mm |
| Impact-resistant | yes |
|---|---|
| Material | Polypropylene |
| No. of entries | 13 |
| Nominal cross-section, max. | 2,5 mm² |
| Nominal cross-section, min. | 1,5 mm² |
| Pipe entries Ø 20 mm | 3 |
| Protection rating | IP30 |
| Rated voltage | 400 V |
| Shape | Round |
| Type of entry | NYM cables, data cables and corrugated pipes |
| Type of housing penetration | Break-out opening |
| With bolts | no |
| With nail strap | no |
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Flush mounted |
| Shape (EF000051) | Round |
| Construction type (EF000767) | Device connection box (round/square) |
| Model (EF000010) | Single |
| Diameter (EF000551) | 60 mm |
| Depth (EF005457) | 66 mm |
| Mounting switching equipment (EF004508) | Screw or spread out |
| With screws (EF005066) | No |
| Housing feed-through by break-out opening (EF009763) | Yes |
| Housing feed-through by seal membrane (EF009206) | No |
| Housing feed-through by nozzle (EF009207) | No |
| Housing feed-through by step membrane (EF009208) | No |
| For tube diameter (EF005496) | 20/25 mm |
| Inlet from the rear (EF005604) | Yes |
| Number of inlets (EF003593) | 13 |
| Material (EF002169) | Plastic |
| Halogen free (EF000025) | Yes |
| Colour (EF000007) | Black |
| Degree of protection (IP) (EF005474) | IP30 |
| Cover attachment (EF004586) | Screwed |
