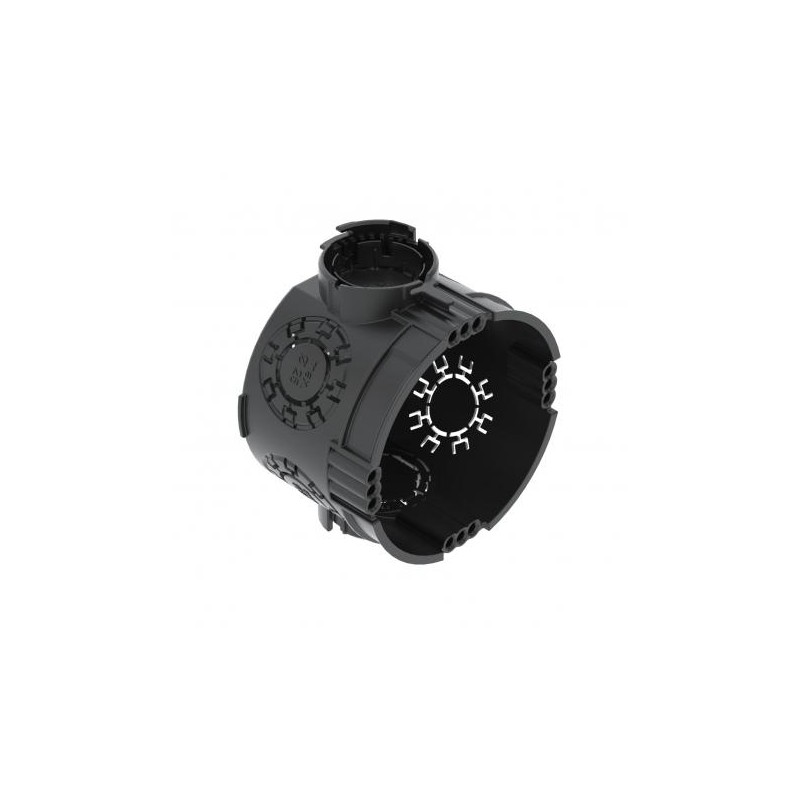

UG 46 2003700 OBO BETTERMANN UP Box for UG 46 mechanisms, for mechanisms Ø60mm, H46mm Polypropylene, PP
UG 46
2003700
OBO BETTERMANN
25
UP Box for UG 46 mechanisms, for mechanisms Ø60mm, H46mm Polypropylene, PP
UP Box for mechanisms UG 46
UP Flush-mounted device box 46. Flush-mounted device box, for use in masonry with an installation depth of at least 46 mm. • 4 x 3 screw domes• Connector with bayonet lock, couplable on both sides• 6 combination pipe insertions of Ø 20 and 25 mm• 1 entry up to Ø 20 mm in the baseTested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Airtight | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0456 kg CO2e / 1 Piece |
| Colour | Jet black |
| Combination entries Ø 20 / 25 mm | 6 |
| Cover | Without |
| Device fixing | Screws or spreading claws |
| Diameter | 60 mm |
| Dimension | Ø60mm, H46mm |
| Entry from rear | yes |
| Equipment | Without |
| Flame-resistant | acc. to VDE 0471/IEC 60695-2-11, test temperature 650°C |
| for pipe diameter | 20/25 mm |
| Halogen-free | yes |
| Height | 46 mm |
| Impact-resistant | no |
|---|---|
| Material | Polypropylene |
| No. of entries | 7 |
| Nominal cross-section, max. | 2,5 mm² |
| Nominal cross-section, min. | 1,5 mm² |
| Pipe entries Ø 20 mm | 1 |
| Protection rating | IP30 |
| Rated voltage | 400 V |
| Shape | Round |
| Type of entry | NYM cables, data cables and corrugated pipes |
| Type of housing penetration | Break-out opening |
| With bolts | no |
| With nail strap | no |
| Feature Name | Feature Value |
|---|---|
| Shape (EF000051) | Round |
| Construction type (EF000767) | Flush mounted box |
| Model (EF000010) | Single |
| Equipped with (EF000557) | None |
| Diameter (EF000551) | 60 mm |
| Depth (EF005457) | 46 mm |
| Mounting switching equipment (EF004508) | Screw or spread out |
| With screws (EF005066) | No |
| Housing feed-through by break-out opening (EF009763) | Yes |
| Housing feed-through by seal membrane (EF009206) | No |
| Housing feed-through by nozzle (EF009207) | No |
| Housing feed-through by step membrane (EF009208) | No |
| For tube diameter (EF005496) | 20/25 mm |
| Inlet from the rear (EF005604) | Yes |
| Number of inlets (EF003593) | 7 |
| Material (EF002169) | Plastic |
| Halogen free (EF000025) | Yes |
| Colour (EF000007) | Black |
| Degree of protection (IP) (EF005474) | IP30 |
