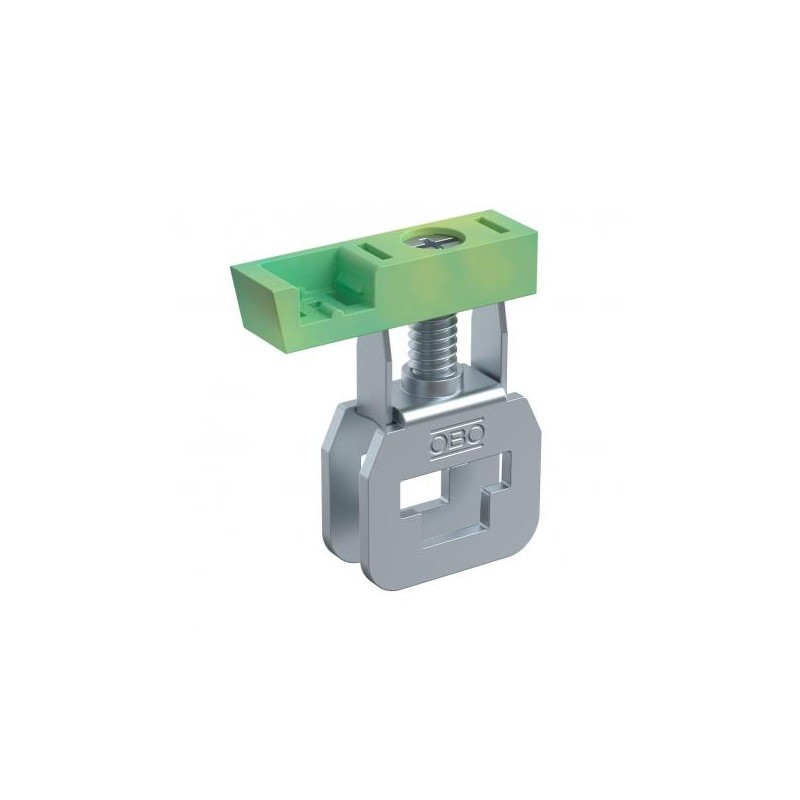

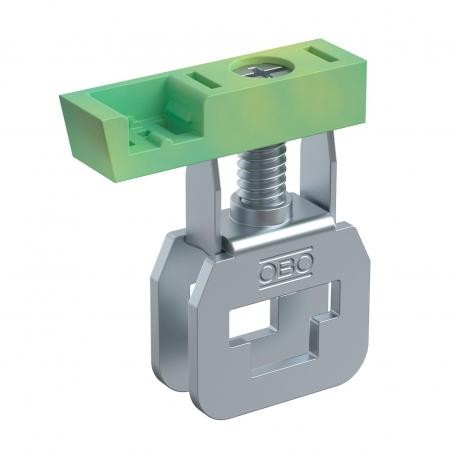

TPE 04 7205709 OBO BETTERMANN TPE 04 terminal blocks, for FireBox T 24x7x26
TPE 04
7205709
OBO BETTERMANN
5
TPE 04 terminal blocks, for FireBox T 24x7x26
TPE 04 protective conductor terminals for FireBox T 24x7x26 yellowish green
Protective conductor terminal. Protective conductor terminal for refitting of the FireBox T series with green-yellow identification.
BSS fire protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Bus bar thickness | 2,5 mm |
|---|---|
| Bus bar width | 6 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0288 kg CO2e / 1 Piece |
| Colour | Yellow green |
| Dimension | 24x7x26 |
| Dimension B | 24 mm |
| Dimension H | 26 mm |
| Dimension L | 7 mm |
| Material | Steel |
|---|---|
| Max. Conductor cross-section | 4 mm² |
| Max. Measuring operating current Ie | 140 A |
| Suitable for busbar | Flat rail |
| Suitable for ribbon conductor connection | no |
| Suitable for round cable connection | yes |
| Suitable for sector conductor connection | no |
| Width | 7 mm |
| Feature Name | Feature Value |
|---|---|
| Busbar thickness (EF007220) | 2.5 mm |
| Busbar width (EF007219) | 6 mm |
| Suitable for (EF000073) | Flat rail |
| Width clamp (EF007092) | 7 mm |
| Max. conductor cross section (EF004969) | 4 mm² |
| Max. rated operation current Ie (EF007356) | 140 A |
| Suitable for round conductor connection (EF007258) | Yes |
| Suitable for sector conductor connection (EF007260) | No |
| Suitable for strip conductor connection (EF007242) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FIRE TESTED SUPPORT AND ROUTING SYSTEMS OBO EN.pdf | 18 Mbytes |
|
| PDF CATALOGUE INSULATION AND CABLE BANDAGES OBO EN.pdf | 12 Mbytes |
|
