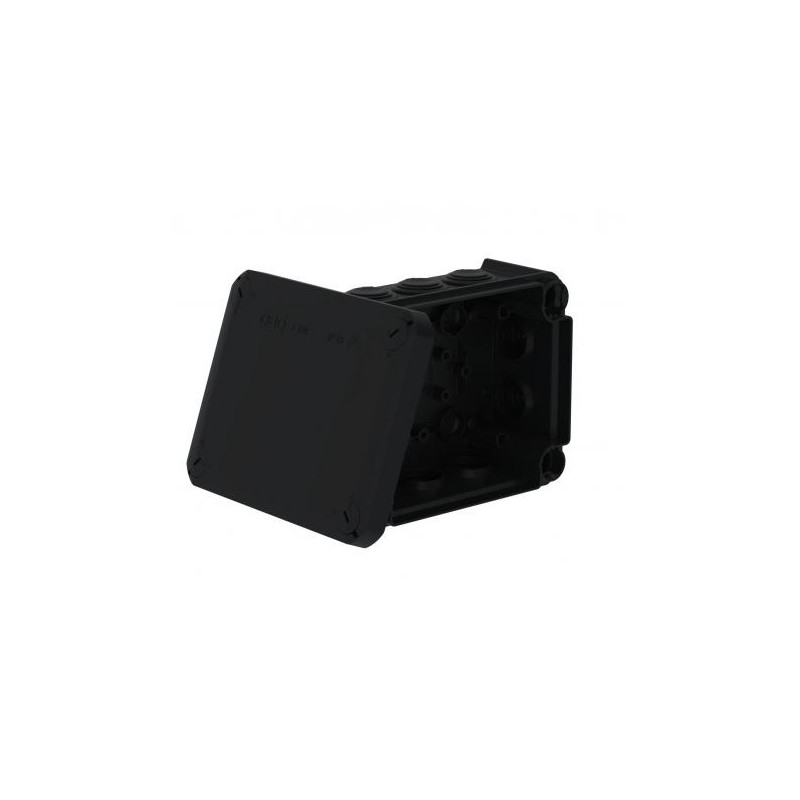

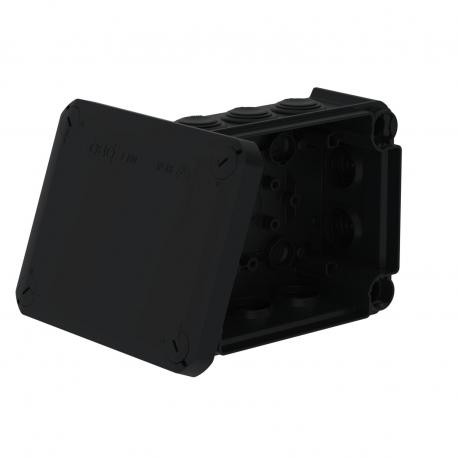

T 100 SW 2007468 OBO BETTERMANN Junction box T 100 SW, with cones 150x116x67 Polypropylene, PP
T 100 SW
2007468
OBO BETTERMANN
Junction box T 100 SW, with cones 150x116x67 Polypropylene, PP
T 100 SW junction box, with cones 150x116x67 Polypropylene, PP,
Junction box T 100, plug-in seal. Junction box for the connection of cables and lines indoors and in protected outdoor areas. Rectangular design with plug-in seals to the sides and knock-out entries in the bottom. Suitable for wall and ceiling mounting and on mounting panels. With the option to fasten inside and to mount via the corner domes. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials. Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 according to DIN EN 50102.
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲
Junction box according to DIN EN 60670. Anti-flammable according to DIN EN 60695-2-11, test temperature 650 °C. IK07 impact resistance according to DIN EN 50102.
| Feature Name | Feature Value |
|---|---|
| Shape (EF000051) | Rectangular |
| Mounting method (EF000003) | Wall-/ceiling mounting |
| Inlet from the rear (EF005604) | Yes |
| Length (EF001438) | 150 mm |
| Width (EF000008) | 116 mm |
| Depth (EF000049) | 67 mm |
| Connectable (EF006169) | Yes |
| Number of inlets (EF003593) | 10 |
| Type of housing feed-through (EF007661) | Trimmable step membrane |
| Material (EF002169) | Plastic |
| Halogen free (EF000025) | Yes |
| Colour (EF000007) | Black |
| Degree of protection (IP) (EF005474) | IP66 |
| Cover attachment (EF004586) | Screwed |
| Rated insulation voltage Ui (EF001366) | 500 V |
| Circuit integrity (EF001613) | None |
| With screening (EF005032) | No |
| Weatherproof (EF005436) | No |
| Operating temperature (EF001742) | -5 °C |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
