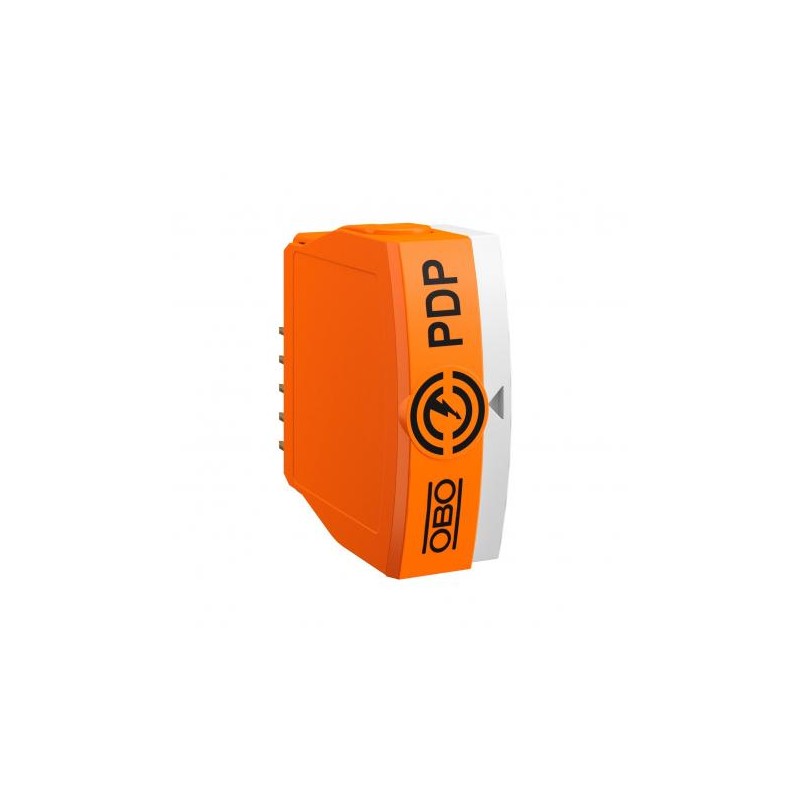

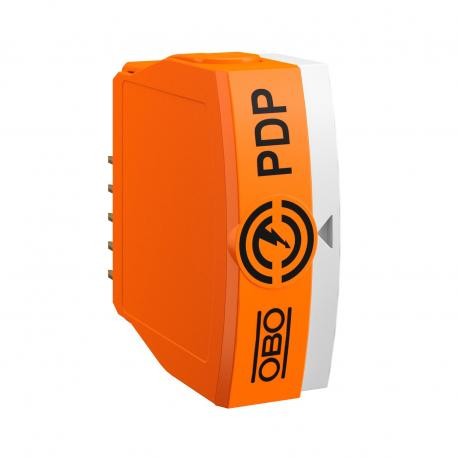

PDP-P-2-5-OS 5080422 OBO BETTERMANN Protection Data Line ench PDP-P-2-5-OS, Top 2-pole 5V
PDP-P-2-5-OS
5080422
OBO BETTERMANN
Protection Data Line ench PDP-P-2-5-OS, Top 2-pole 5V
PDP cover, 2-pin, with OS, 5 V. Upper part, plug-in data cable protection, type 1+2/D1+C2, for use in measurement, control and regulation technology• Protection device for multi-wire systems• Frequency range up to 100 MHz• Low construction width of 17.5 mm• With visual signalling and option of remote signallingApplication: Universal lightning and surge voltage protection for data transmission devices in MCR technology.
TBS Transient and lightning protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Capacity (wire-earth) | ≤30 pF |
|---|---|
| Capacity (wire-wire) | ≤30 pF |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4093 kg CO2e / 1 Piece |
| Connection cross-section, flexible, max. | 1,5 mm² |
| Connection cross-section, flexible, min. | 0,14 mm² |
| Connection cross-section, multi-wire, max. | 2,5 mm² |
| Connection cross-section, multi-wire, min. | 0,14 mm² |
| Connection cross-section, rigid, max. | 2,5 mm² |
| Connection cross-section, rigid, min. | 0,14 mm² |
| Cut-off frequency | 100 MHz |
| Dimension | 5V |
| Earthing via: | Connection cable / DIN rail |
| Height | 46 mm |
| Impulse durability wire-earth | 10 kV / 5 kA |
| Impulse durability wire-wire | 10 kV / 5 kA |
| Insertion loss | ≤3 dB |
| Kategorie | Type 1+2 / D1+C2 |
| Length | 51 mm |
| Lengthwise resistance | 1.2 ± 5% |
| Lightning impulse current | 2,5 kA |
| Lightning protection zone LPZ | 0→2 |
| Maximum continuous voltage AC | 4,2 V |
| Maximum continuous voltage DC | 6 V |
|---|---|
| Mounting of input / output | Screw terminals |
| Nominal discharge current (8/20 µs) | 10 kA |
| Nominal load current AC | 0,425 A |
| Nominal load current DC | 0,6 A |
| Permitted temperature range, max. | 80 °C |
| Permitted temperature range, min. | -40 °C |
| Plug-in system | Terminal |
| Protection rating | IP20 |
| Screening | Direct |
| Series resistance per wire | 1,2 Ω ± 5% |
| Shielding connection available | yes |
| Signalling on device | None |
| SPD to EN 61643-11 | Type 1+2 |
| SPD to IEC 61643-1 | Class I+II |
| SPD to IEC 61643-21 | Class I+II / D1+C2 |
| Testing standard | IEC 61643-21 |
| Total discharge current (10/350) | 2,5 kA |
| Total discharge current (8/20) | 20 kA |
| Total impulse durability into C2 (8/20) | 20 kA |
| Width | 17,5 mm |
| Feature Name | Feature Value |
|---|---|
| Max. continuous voltage AC (EF004198) | 4.2 V |
| Max. continuous voltage DC (EF004777) | 6 V |
| Nominal discharge surge current (8/20) (EF004214) | 10 kA |
| Signalling at the device (EF004241) | None |
