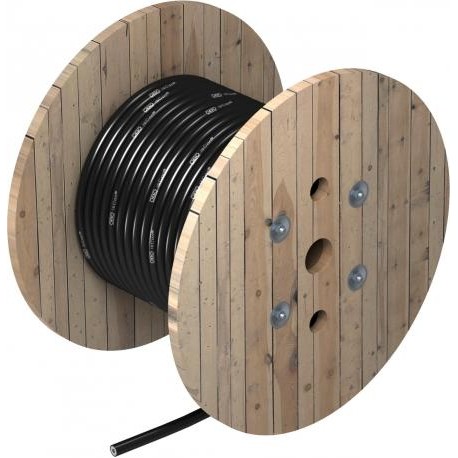

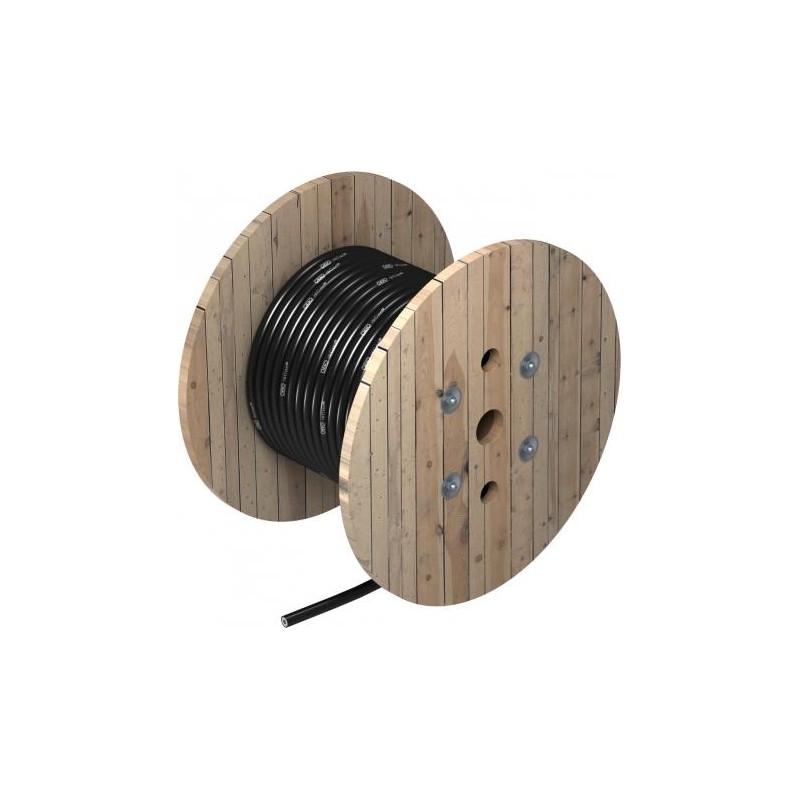

isCon PR 90 SW 5408018 OBO BETTERMANN Shunt Coil 100 meters ø 23mm black
isCon PR 90 SW
5408018
OBO BETTERMANN
100 m.
Shunt Coil 100 meters ø 23mm black
isCon® conductor, Premium black. Please refer to the mounting instructions for information on routing the OBO isCon® Premium conductor.• Highly voltage-resistant, insulated conductor• Floating discharge-free • Tested according to IEC/EN 62561-1 (VDE 0185-561-1) with H2/200 kA• Equivalent separation distance se ≤ 0.90 m (air) and se ≤ 1.8 m (solid material)• Tested according to IEC TS 62561-8 (VDE V 0185-561-8)• Halogen-free• Fire load 4.2 kWh/m
TBS Transient and lightning protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Colour | Black |
|---|---|
| Cross-section | 35 mm² |
| Diameter | 23 mm |
| Dimension | Ø23mm |
| Equivalent separating distance s(e)/m (in air) | 0,9 |
| High voltage-resistant, insulated version | yes |
| Length tolerance ± | 5 % |
|---|---|
| Material jacket | EVA |
| Material property | Miscellaneous |
| Nomal ring (approx. m) | 100 |
| Number of individual wires | 7 |
| Feature Name | Feature Value |
|---|---|
| Conductor cross section (EF000085) | 35 mm² |
| Outer diameter incl. sheat/cover (EF015613) | 23 mm |
| Colour (EF000007) | Black |
| Weight (EF000167) | 66.6 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SURGE PROTECTION OBO EN.pdf | 24 Mbytes |
|
