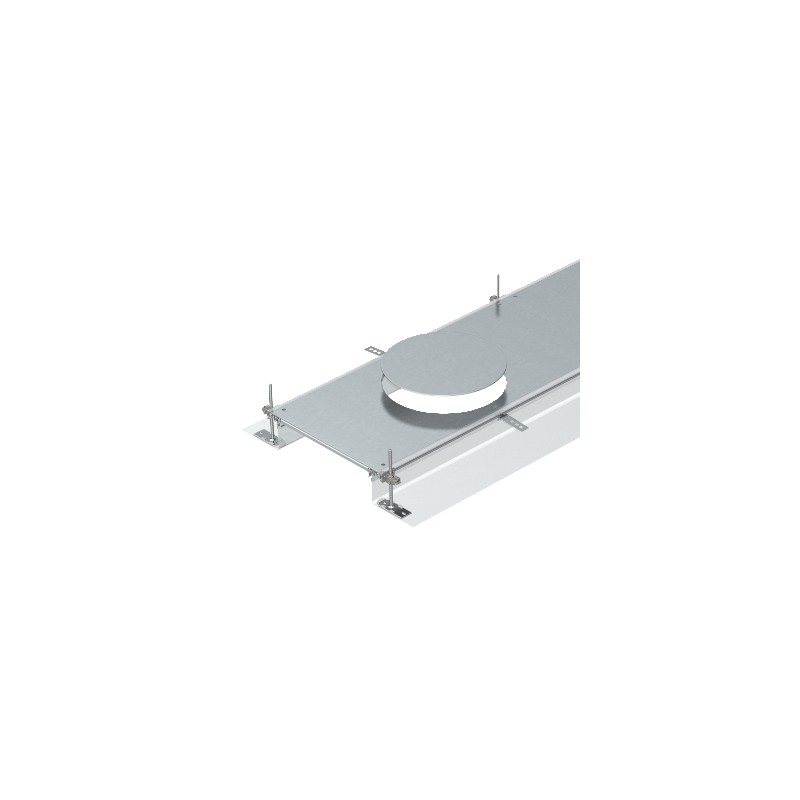

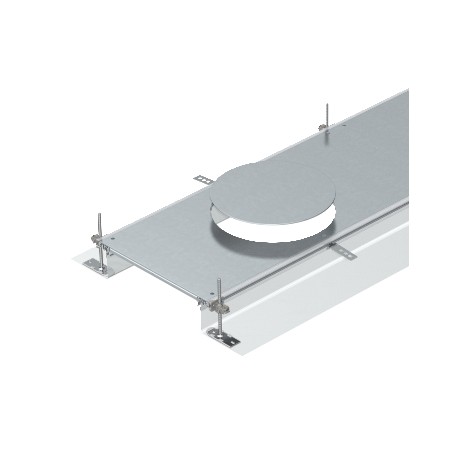

OKA-G60040140DR9 7424246 OBO BETTERMANN Trunking unit for GESR9, height 40−140 mm
OKA-G60040140DR9
7424246
OBO BETTERMANN
Trunking unit for GESR9, height 40−140 mm
Trunking unit for GESR9, height 40−140 mm. Ready-to-mount trunking unit with six device installation lids for cable laying and the installation of installation units of nominal size R9, consisting of two side profiles with attached flexible metal mesh side wall, floor covering guide profiles and trunking lid with blank mounting opening. The scope of supply contains six height-adjustable wall fixing brackets, six screed anchors and three height-adjustable cover joint supports for nominal trunking width 400 and six cover joint supports for nominal trunking widths 500 and 600. Trunking lid screwed down when delivered.
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 91,1666 kg CO2e / 1 Meter |
|---|---|
| Cover fastening, locking | no |
| Cover material thickness | 4 |
| Covers | 6 |
| Decouplable | yes |
| Dimension | 2400x600x140 |
| Duct height, min. | 40 mm |
| Floor plate | no |
| Height-adjustment range, max. | 140 mm |
| Height-adjustment range, min. | 40 mm |
| Installation opening for on-floor tank | no |
| Length | 2400 mm |
| Material | Steel |
| Minimum screed height | 40 |
| Mounting opening | For service outlet |
| Mounting opening | Round |
|---|---|
| Mounting opening cover | yes |
| Nominal size for device installation units | R9 |
| Number of planned flush-mount units | 6 |
| Removable cover | yes |
| Seal installation option | yes |
| Suitable for expansion joint | no |
| Surface | Strip galvanized |
| Trunking height, max. | 140 mm |
| Width | 600 mm |
| With connection opening | yes |
| With equipotential bonding | no |
| With overhang | yes |
| With separating retainer | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
