OBO BETTERMANN AIKA U 15040 7404874 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

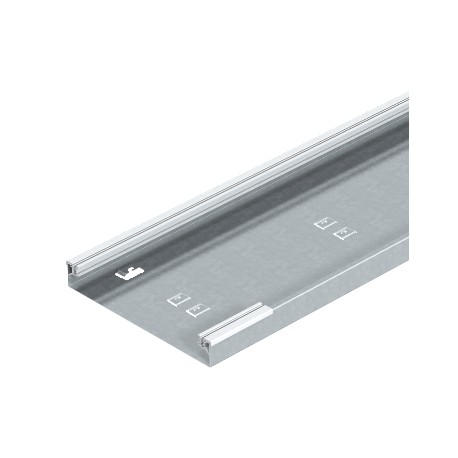

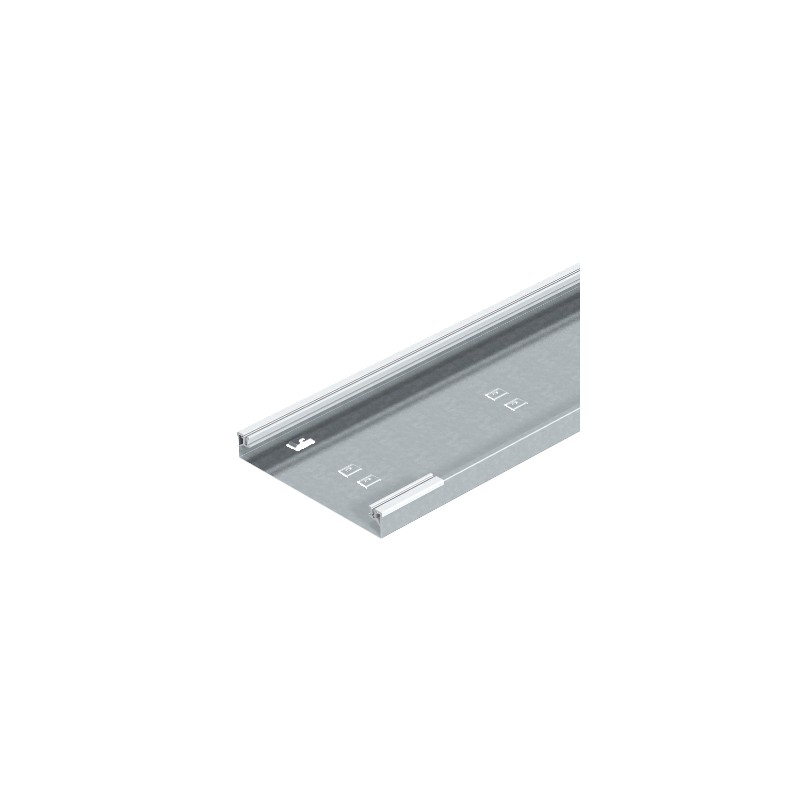

AIKA U 15040 7404874 OBO BETTERMANN On-floor branch trunking

Reference: AIKA U 15040

Code: 7404874

Manufacturer: OBO BETTERMANN

Description:

On-floor branch trunking
On-floor branch trunking. On-floor junction trunking base for blank/mounting lid with slope on both sides, free on floor for mounting, with plug-fit aluminium side profiles for layering and fixing the trunking lid. Trunking height suitable for installation of Telitanks.

Categories:

  • OBO BETTERMANN > UFS Underfloor piping systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

CO2 Footprint (GWP) Cradle-to-Gate10,9303 kg CO2e / 1 Meter
Cross-section, draw 31171 mm²
Cross-section, draw a1630 mm²
Cross-section, draw b1120 mm²
Dimension2400x150x40
Dimension B150 mm
Dimension b150 mm
Dimension h40 mm
Height40 mm
Length2400 mm
MaterialSteel
Number of compartments3 St.
Number of insertable partitions2
Plate thickness, base1 mm
Separating retainer fasteningPlug
Suitable forCover sloping on both sides
SurfaceStrip galvanized
Usable cross-section45 cm²
Width150 mm
With separating retainerno
