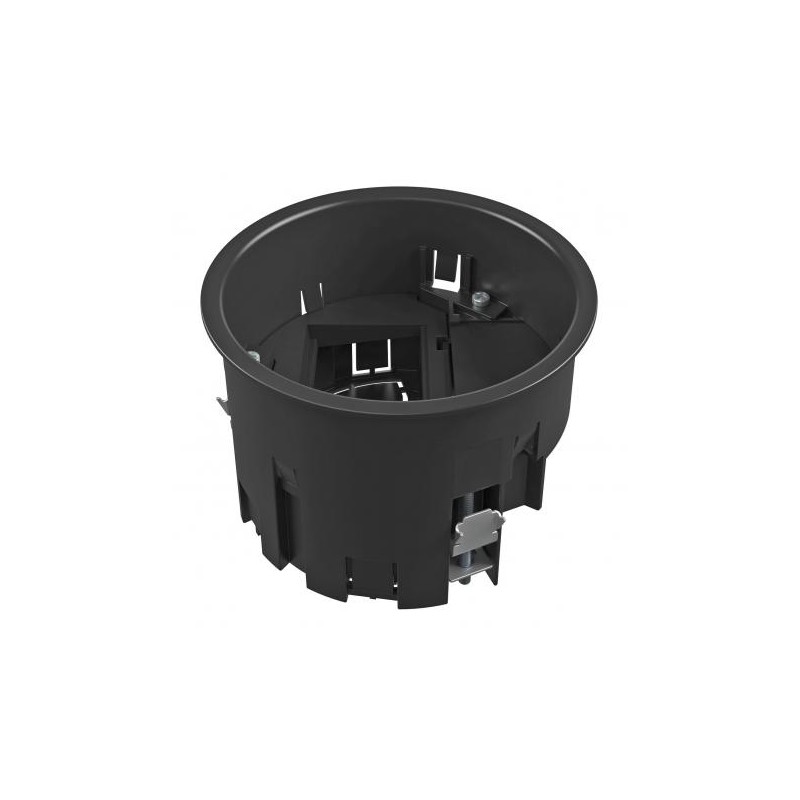

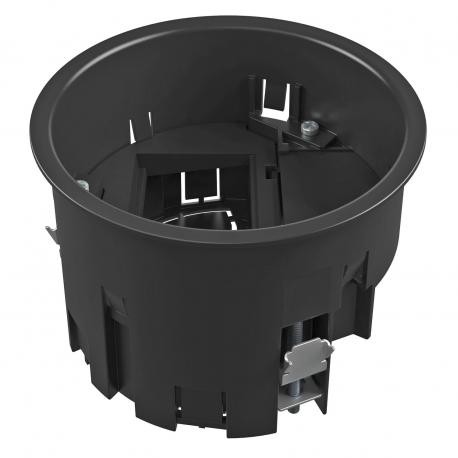

MT R2 1.5 7408836 OBO BETTERMANN MOUNTING BRACKET P/GES R2 P/1.5 X MODUL45, MT R2 1.5
MT R2 1.5
7408836
OBO BETTERMANN
MOUNTING BRACKET P/GES R2 P/1.5 X MODUL45, MT R2 1.5
Mounting bracket for GES R2 for 1.5 x Modul45 graphite black 9011 Polyamide, PA
Installation socket, 1.5 empty. Installation socket for GES R2 floor socket for mounting in UD GES R2 screed socket and in raised floor plates with an installation opening diameter of 122 mm.
Sub-floor systems > Installation box for underfloor-installation
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 2,8322 kg CO2e / 1 Piece |
|---|---|
| Colour | Graphite black; RAL 9011 |
| Cover version | Round |
| Device support to accept mounting boxes | no |
| Device type | Grid M45 |
| Equipment | Empty housing |
| External diameter | 131 mm |
| Floor covering protection frame | no |
| Installation depth | 85 mm |
| Installation diameter | 122 |
| Installation technology | Grid M45 |
| Material | Polyamide |
|---|---|
| Number of installable devices | 2 |
| Number of strain reliefs | 1 |
| Seal installation option | yes |
| Strain relief option | yes |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Suitable for underfloor ducts | no |
| Suitable for wet care | no |
| With floor covering recess | no |
| Feature Name | Feature Value |
|---|---|
| Material cover (EF005414) | Plastic |
| With opening carpeting (EF004541) | No |
| Protective frame carpeting (EF004543) | No |
| Colour (EF000007) | Black |
| RAL-number (EF000116) | 9011 |
| Suitable for subfloor duct (EF006409) | No |
| Suitable for hollow floor (EF006410) | Yes |
| Suitable for double floor built-in (EF006411) | Yes |
| Suitable for wet cleaning (EF005109) | No |
| Outer diameter (EF000015) | 131 mm |
| Built-in diameter (EF000943) | 122 mm |
| Min. built-in depth (EF005027) | 85 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
