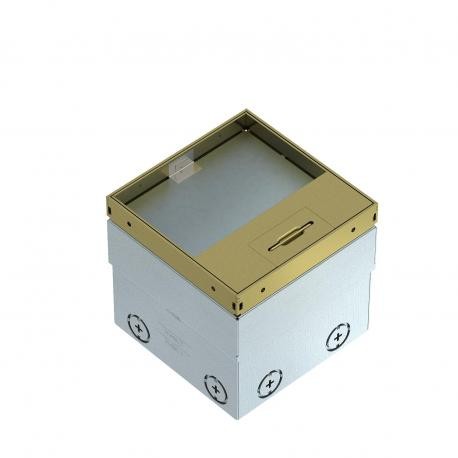

UDHOME2 GM15 7368346 OBO BETTERMANN Empty full unit 140x140x110 Brass, CuZn
UDHOME2 GM15
7368346
OBO BETTERMANN
Empty full unit 140x140x110 Brass, CuZn

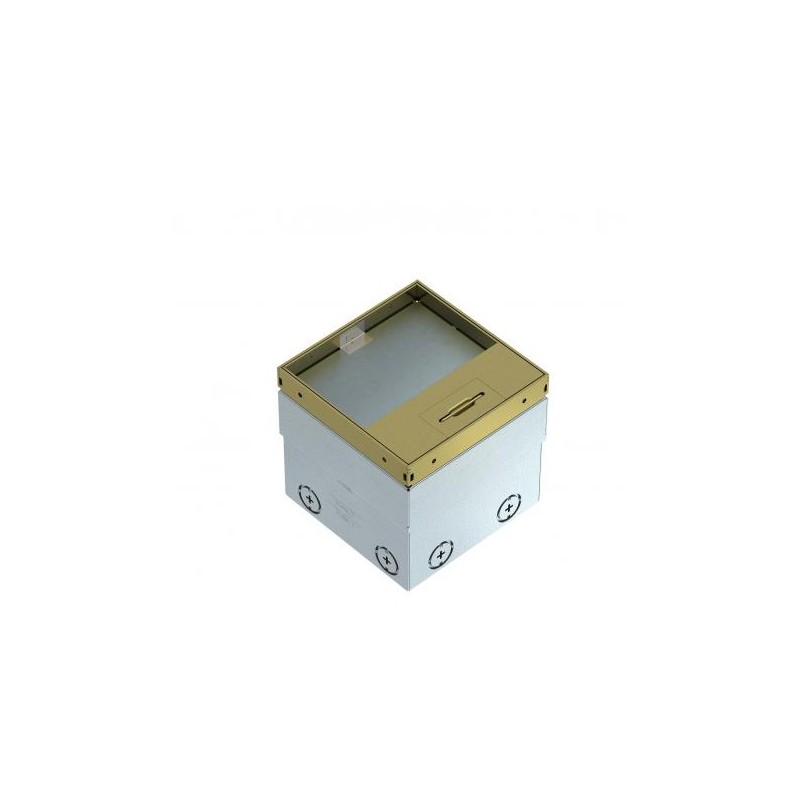

UDHOME2 floor socket, with cord outlet, with floor covering recess, unequipped, brass. Square floor socket for use in dry-care cavity and screed floors in indoor areas. Installation housing with pre-marked insertion openings for pipes (M20/M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 110 mm, the height-adjustment range 25 mm.Frame and cover made of brass and visible in the floor covering. Empty housing for up to 2 Modul 45® devices in the mounting support and 2 data sockets in the optional data technology support.
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Application when unused | 6.101.1 Dry floor care |
|---|---|
| Application when used | 6.101.1 Dry floor care |
| Approvals | VDE |
| Cable outlet version | Swivellable cord outlet |
| CO2 Footprint (GWP) Cradle-to-Gate | 11,3082 kg CO2e / 1 Piece |
| Cover version | Floor covering recess |
| Device support to accept mounting boxes | no |
| Dimension | 140x140x110 |
| Equipment | Empty housing |
| Floor care | Dry |
| Floor covering protection frame | no |
| Floor covering thickness | 15 mm |
| Floor height, max. | 135 mm |
| Floor height, min. | 110 mm |
| Frame version | Floor covering contact edge |
| Heavy-duty version | no |
| Height | 110 mm |
| Length | 140 mm |
| Material | Brass |
| Nominal size for device installation units | 2 |
|---|---|
| Number of installable devices | 2 |
| Opening mechanism | Handle |
| Protection rating (IP) when unused | IP40 |
| Protection rating (IP) when used | IP20 |
| Protection rating IK code | IK10 |
| Seal installation option | no |
| Standard | EN 50085-2-2 |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Suitable for screed-covered underfloor ducts | no |
| Suitable for screed-flush closed underfloor ducts | no |
| Suitable for underfloor ducts | no |
| Suitable for wet care | no |
| Version for | Square |
| Vertical load, large area | to 15,000 N |
| Vertical load, small area | to 3,000 N |
| Width | 140 mm |
| With floor covering recess | yes |
| Feature Name | Feature Value |
|---|---|
| Cover model (EF009212) | Square |
| With cable outlet in cover (EF015333) | Yes |
| Material cover (EF005414) | Brass |
| With opening carpeting (EF004541) | Yes |
| Protective frame carpeting (EF004543) | No |
| Suitable for subfloor duct (EF006409) | No |
| Suitable for hollow floor (EF006410) | Yes |
| Suitable for double floor built-in (EF006411) | Yes |
| Suitable for wet cleaning (EF005109) | No |
