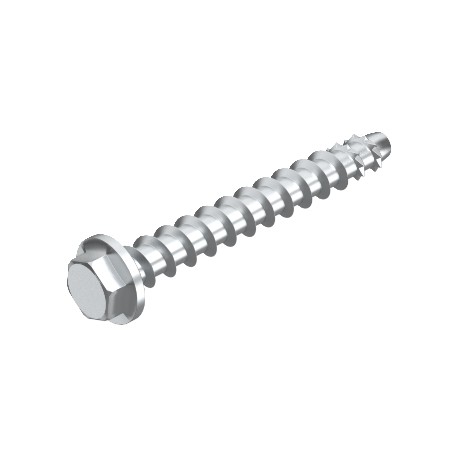

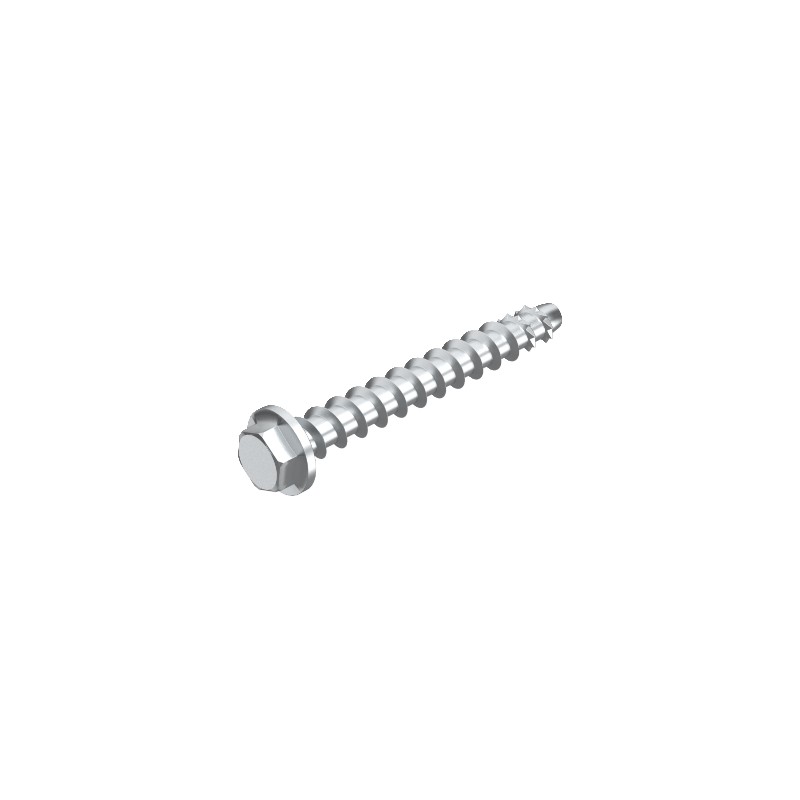

MMS+ SS 10x80 3498124 OBO BETTERMANN Fire protection screw, hexagonal head SW 13, 10x80mm, electro-galvanize..
MMS+ SS 10x80
3498124
OBO BETTERMANN
25
Fire protection screw, hexagonal head SW 13, 10x80mm, electro-galvanized steel, DIN EN 12329
MMS+ SS 10x80 hexagonal head SW 13 10x80mm zinc protection screw MMS+ SS 10x80mm zinc plated Steel, St electrozinc-plated, EN ISO 19598 / EN ISO 4042
MMS-plus SS 10x80 hexagonal tie, with pressed washer. Bolt tie for direct mounting without additional anchors in cracked and uncracked concrete and masonry. With hex head drive and pressed washer to accept large loads. Suitable for fastening suspended loads from suspended supports and wall brackets.Construction product tested according to EAD and CE mark, with European Technical Assessment (ETA) and proof of suitability. Load-bearing capacities under fire loads proven up to fire resistance class R120.
BSS fire protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Anchor length | 80 mm |
|---|---|
| Anchor/nail/bolt version | Spiral anchor |
| Clamping strength | 30 mm |
| Colour | zinc |
| Dimension | 10x80mm |
| Dimension | 10 x 80 |
| Dimension L | 80 mm |
| Drill hole depth | 60 mm |
| Drill hole diameter, min. | 8 mm |
| ETA earthquake rating | C1 |
| Fire resistance class EN 13501-1 | R30, R60, R90, R120 |
| Hardened | yes |
|---|---|
| Head diameter | 19 mm |
| Head shape | Hexagonal |
| Length | 80 mm |
| Material | Steel |
| Screw system | Hexagonal |
| Surface | Electrogalvanized |
| Thread | 10 |
| Thread diameter ST | 10 |
| WAF | 13 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FIRE TESTED SUPPORT AND ROUTING SYSTEMS OBO EN.pdf | 18 Mbytes |
|
| PDF CATALOGUE INSULATION AND CABLE BANDAGES OBO EN.pdf | 12 Mbytes |
|
