BSKH09-VF0521 7215664 OBO BETTERMANN BSKH09-VF0521 Vertical Downward Curve, for BSKH09-K0521 50x210 Lightwei..
BSKH09-VF0521
7215664
OBO BETTERMANN

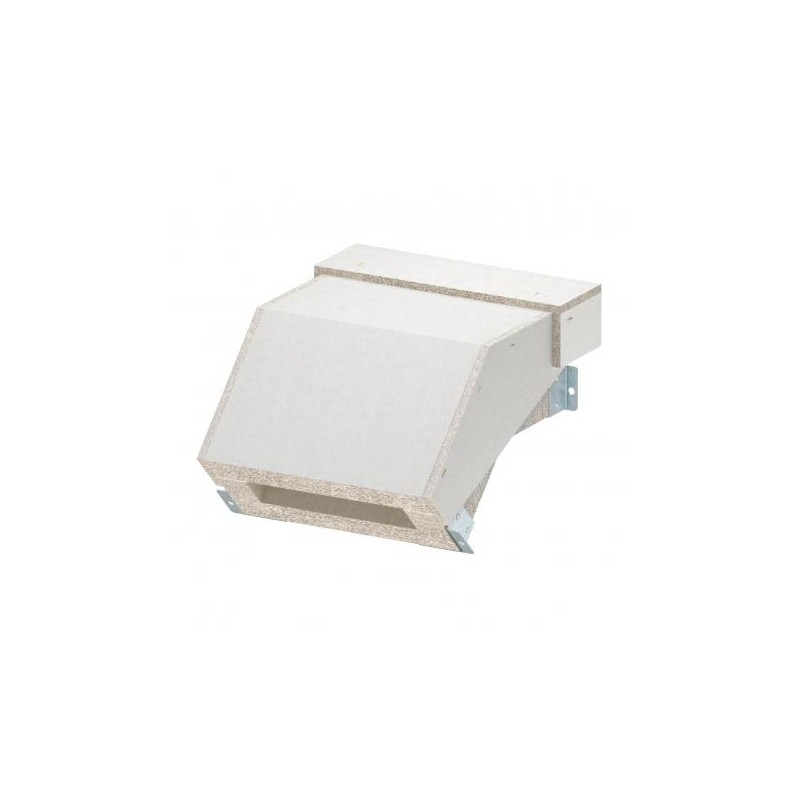

BSKH09-VF0521 Vertical Downward Curve, for BSKH09-K0521 50x210 Lightweight Concrete with Fiberglass
Vertical descending curve BSKH09-VF0521 for BSKH09-K0521 50x210 grey
Falling vertical bend for PYROLINE® Con S BSKH09-K0521 fire protection duct. Falling vertical bend for PYROLINE® Con S fire protection duct, type BSKH09-K0521, consisting of fibreglass lightweight concrete which is resistant to water and frost for the creation of vertical changes of direction (45°) of the duct. Mounted connectors ensure quick mounting in situ, whilst loosely placed covers ensure quick inspection and reassignment.Including connection screws and sealing strips.
BSS fire protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Angle of the bend | 45 ° |
|---|---|
| Colour | Grey |
| Cover fastening | Loose |
| Dimension | 50x210 |
| Dimension b | 210 mm |
| Dimension B | 338 mm |
| Dimension h | 50 mm |
| Dimension H | 140 mm |
| Dimension L | 202 mm |
| Fire resistance class E − function maintenance | 30 |
|---|---|
| Fire resistance class I − installation duct | 90 |
| Jacketing | Without |
| Material | Fibreglass lightweight concrete |
| Material of the insulation | Glass-fibre lightweight concrete |
| Number of flammable sides | 4 |
| Partitions possible | yes |
| Width | 338 mm |
| With perforation | no |
| Feature Name | Feature Value |
|---|---|
| Angle (EF008153) | 45 ° |
| Fire resistance class I - installation duct (EF007765) | 90 |
| Fire resistance class E - circuit integrity (EF007764) | 30 |
| Inner height (EF006588) | 140 mm |
| Inner width (EF006466) | 338 mm |
| Number of flame resistant sides (EF007591) | 4 |
| Insulating material (EF002520) | Glass fibre enforced light concrete |
| Sheathing (EF008096) | None |
| Colour (EF000007) | Grey |
| Partitions possible (EF008089) | Yes |
| With bottom perforation (EF007944) | No |
