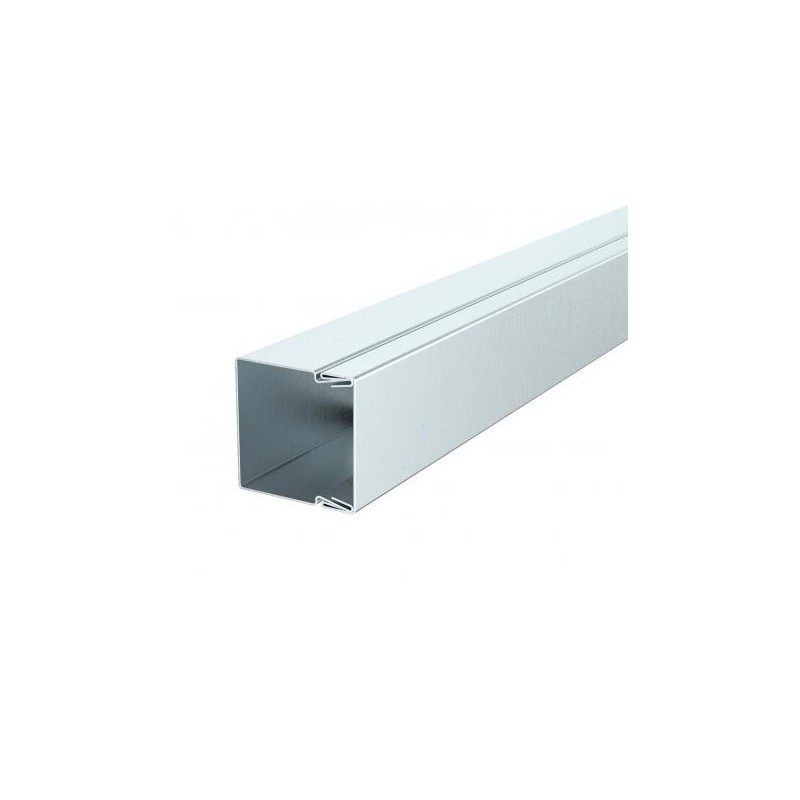

LKM30030FS 6246985 OBO BETTERMANN Channel, with perforations at the base, 30x30x2000, galvanized steel in ba..
LKM30030FS
6246985
OBO BETTERMANN
16 m.
Channel, with perforations at the base, 30x30x2000, galvanized steel in band, DIN EN 10346
Cable duct, type LKM 30030. Duct cover and base with base perforation.Equipotential bonding is guaranteed between the cover and the base without any additional aids.
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Antibacterial treatment | no |
|---|---|
| Base perforation | with base perforation |
| Cable retaining clip | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,4261 kg CO2e / 1 Meter |
| Colour | zinc |
| Delivery on a roll | no |
| Dimension | 30x30x2000 |
| Duct connector | no |
| Fastening type | Base perforation |
| Halogen-free | yes |
| Height | 30 mm |
| Length | 2000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket) | 4 |
|---|---|
| Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket) | 4 |
| Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket) | 4 |
| Permitted temperature range, max. | 90 °C |
| Permitted temperature range, min. | -5 °C |
| Protection rating | IP30 |
| Protection rating IK code | IK10 |
| Protective film | no |
| Surface | Strip galvanized |
| Transparent | no |
| Usable cross-section | 805 mm² |
| Version, cable trunking cover | Loose |
| Width | 30 mm |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 30 mm |
| Width (EF000008) | 30 mm |
| Length (EF001438) | 2000 mm |
| Useful cross section (EF005140) | 773 mm² |
| Material (EF002169) | Steel |
| Halogen free (EF000025) | Yes |
| Anti-bacterial treatment (EF023790) | No |
| Surface protection (EF000139) | Pre-galvanised |
| Suitable for circuit integrity (EF007806) | No |
| Number of permanent partitions (EF004408) | 0 |
| Number of plug-in partitions (EF004438) | 0 |
| Type of fastening (EF002442) | Bottom perforation |
| Cover model (EF009212) | Loose |
| With cable fixing clip (EF004815) | No |
| With protective foil (EF005266) | No |
| With duct connector (EF004826) | No |
| Degree of protection (IP) (EF005474) | IP30 |
| Impact strength (EF004293) | IK10 |
| Operating temperature (EF001742) | -5 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CABLE ROUTING SYSTEMS OBO EN.pdf | 15 Mbytes |
|
| PDF CATALOGUE INSTALLATION SYSTEMS OBO EN.pdf | 23 Mbytes |
|
