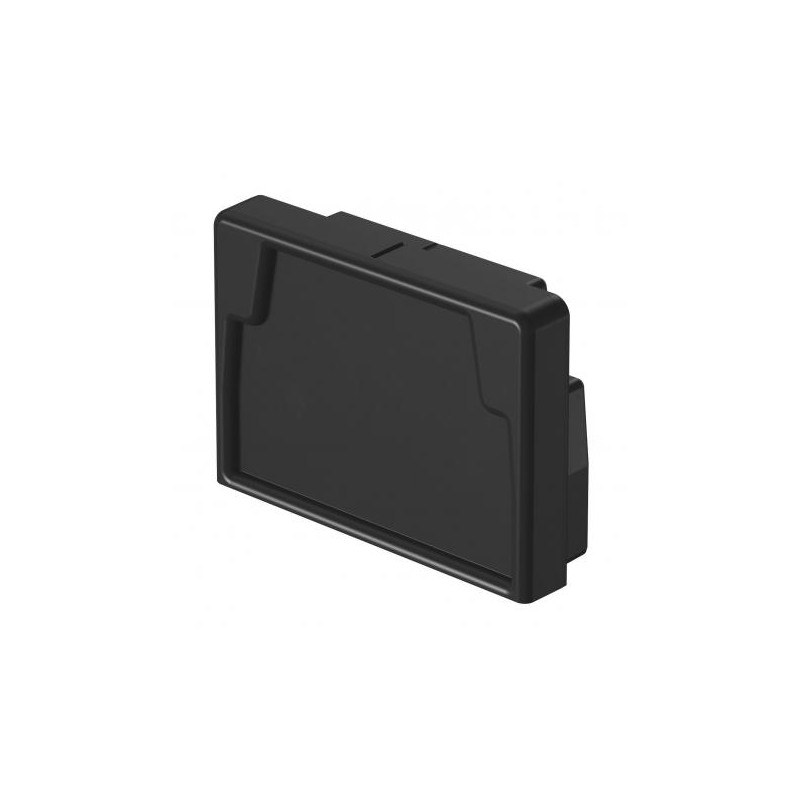

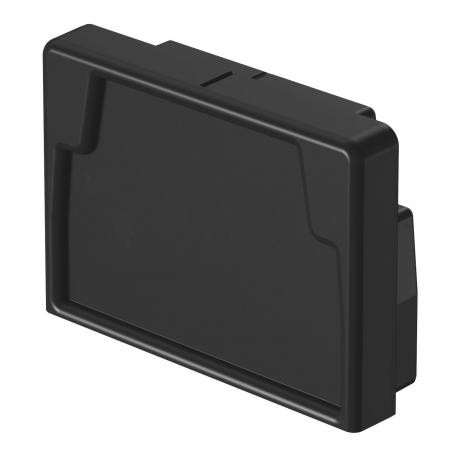

LKM EK40060 6249780 OBO BETTERMANN LKM EK40060 end cap 40x60mm Thermoplastic elastomer, TPE
LKM EK40060
6249780
OBO BETTERMANN
5
LKM EK40060 end cap 40x60mm Thermoplastic elastomer, TPE
End piece, for cable trunking type LKM 60100. End piece for closing the LKM ducts.
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,0336 kg CO2e / 1 Piece |
|---|---|
| Colour | Graphite black; RAL 9011 |
| Connector version | Integrated connector |
| Dimension | 40x60mm |
| Fastening type | Lockable |
| Halogen-free | yes |
| Height | 45 mm |
| Length | 18 mm |
| Maintain electrical functions | no |
|---|---|
| Material | Thermoplastic elastomer |
| Protection rating | IP30 |
| Protection rating IK code | IK10 |
| Protective film | no |
| Version for | Left/right |
| Width | 63 mm |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 63 mm |
| Height (EF000040) | 45 mm |
| Connector (EF005309) | Integrated coupler |
| Material (EF002169) | Other |
| Material quality (EF001257) | Other |
| Suitable for use in an IP30 system (EF014717) | Yes |
| Suitable for use in an IPXXD system (EF014719) | No |
| Suitable for use in an IP4X system (EF014720) | No |
| Suitable for use in an IP54 system (EF015256) | No |
| Suitable for use in an IP55 system (EF015257) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CABLE ROUTING SYSTEMS OBO EN.pdf | 15 Mbytes |
|
| PDF CATALOGUE INSTALLATION SYSTEMS OBO EN.pdf | 23 Mbytes |
|
