LK4H N 80025 6132560 OBO BETTERMANN LK4H N 80025 Frame Channel, halogen-free Polycarbonate/Acrylonitrile-but..
LK4H N 80025
6132560
OBO BETTERMANN
56 m.

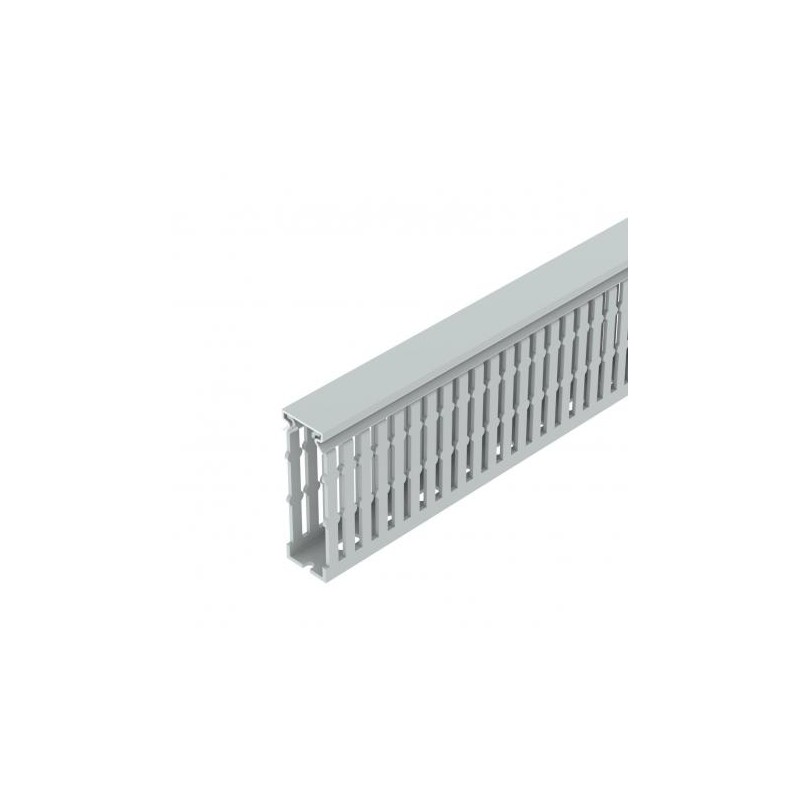

LK4H N 80025 Frame Channel, halogen-free Polycarbonate/Acrylonitrile-butadiene-styren, PC/ABS Polycarbonate/Acrylonitrile-butadiene-styren, PC/ABS. Unit price and packaging units in meters.
Light Grey LK4H N 80025 Frame Channel, RAL 7035
Wiring trunking, type LK4H N 80025. Halogen-free wiring duct, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. With double-sided adhesive tape on the duct base as a mounting aid. Designed as a metric duct. Retainers are broken out without tools. Special lengths on request.
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Colour | Light grey; RAL 7035 |
|---|---|
| Creepage current-resistant | yes |
| Fastening type | Base perforation |
| Flexible | no |
| Halogen-free | yes |
| Height | 80 mm |
| Length | 2000 mm |
| Material | Polycarbonate/Acrylnitrile-butadiene-styrene |
| Permitted temperature range, max. | 90 °C |
| Permitted temperature range, min. | -25 °C |
|---|---|
| Self-extinguishing | yes |
| Side wall version | Slotted |
| Slot spacing | 5,5 mm |
| Slot width | 4,5 mm |
| Usable cross-section | 14,64 cm² |
| Width | 25 mm |
| With cover | yes |
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Other |
| Height (EF000040) | 80 mm |
| Width (EF000008) | 25 mm |
| Length (EF001438) | 2000 mm |
| Distance of slots (EF005246) | 5.5 mm |
| Slit width (EF005247) | 4.5 mm |
| Type of side wall (EF000098) | Slotted |
| Halogen free (EF000025) | Yes |
| Self-extinguishing (EF000681) | Yes |
| Flexible (EF000083) | No |
| Useful cross section (EF005140) | 1464 mm² |
| Type of fastening (EF002442) | Bottom perforation |
| With cover (EF007965) | Yes |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CABLE ROUTING SYSTEMS OBO EN.pdf | 15 Mbytes |
|
| PDF CATALOGUE INSTALLATION SYSTEMS OBO EN.pdf | 23 Mbytes |
|
