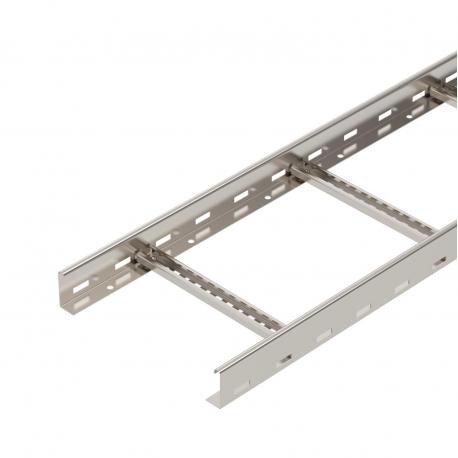

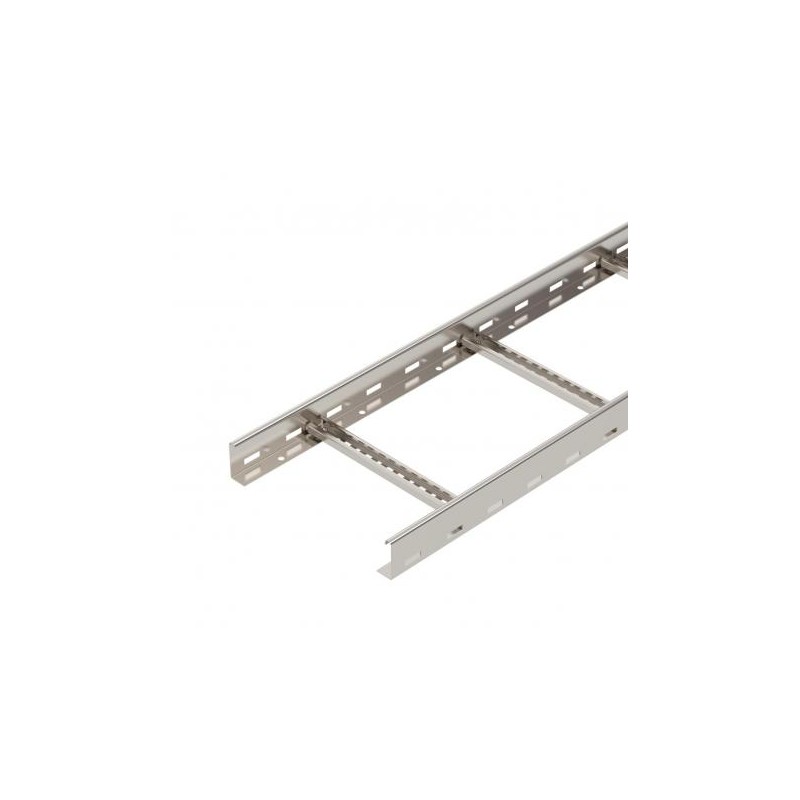

LCIS 630 6 A2 6207254 OBO BETTERMANN TRAY LADDER TREAD PERFORATED, WELDED, LCIS 630 6 A2
LCIS 630 6 A2
6207254
OBO BETTERMANN
6 m.
TRAY LADDER TREAD PERFORATED, WELDED, LCIS 630 6 A2
Ladder tray drilled rung, welded 60x300x6000, stainless steel 1.4301, A2, 1.4301
Cable ladder LCIS 60, 6 m C30 A2. Cable ladder with 60 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using clamps, type LKS 40. The slot dimension of the frame is 16.5 mm and the appropriate clamp clip is type 2056. Magnetic shield insulation without cover 10 dB, with cover 15 dB.
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 14,7094 kg CO2e / 1 Meter |
|---|---|
| Colour | stainless steel |
| Dimension | 60x300x6000 |
| Dimension B | 300 mm |
| Fastening of rung | Welded |
| Height | 60 mm |
| Length | 6000 mm |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4301 |
| Rail thickness | 1,5 mm |
| Rung distance | 300 mm |
| Rung slot dimension | 16,50 |
| Rustproof steel, pickled | yes |
| Side perforation | yes |
| Side rail version | Flat profile |
| Support spacing 1.5 m | 3,3 kN/m |
|---|---|
| Support spacing 2.0 m | 2 kN/m |
| Support spacing 2.5 m | 1,3 kN/m |
| Support spacing 3.0 m | 1 kN/m |
| Support spacing 3.5 m | 0,78 kN/m |
| Support spacing 4.0 m | 0,4 kN/m |
| Support spacing 4.5 m | 0,3 kN/m |
| Support spacing 5.0 m | 0,2 kN/m |
| Surface | Bright, treated |
| Usable cross-section | 120 cm² |
| Usable cross-section | 12000 mm² |
| Version of the rungs | Profile perforated |
| Wide-span version | no |
| Width | 300 mm |
| Feature Name | Feature Value |
|---|---|
| Type of side joist (EF007666) | Flat profile |
| Side perforation (EF001122) | Yes |
| Type of rung (EF001060) | Slotted channel |
| Fixation rung (EF008307) | Welded |
| Height (EF000040) | 60 mm |
| Width (EF000008) | 300 mm |
| Length (EF001438) | 6000 mm |
| Useful cross section (EF005140) | 12000 mm² |
| Suitable for circuit integrity (EF007806) | No |
| Rung centre spacing (EF008185) | 300 mm |
| Vertical cable ladder (EF017249) | No |
| Material (EF002169) | Stainless steel |
| Material quality (EF001257) | Stainless steel 304 (1.4301) |
| Surface protection (EF000139) | Untreated |
| Weight (EF000167) | 2.89 kg/m |
| Possible support spacing (EF017261) | 1.5 m |
| Safe working load according to IEC 61537 with support spacing 1.5 m (EF017264) | 3300 |
| Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) | 2000 |
| Safe working load according to IEC 61537 with support spacing 2.5 m (EF017266) | 1300 |
| Safe working load according to IEC 61537 with support spacing 3.0 m (EF017267) | 1000 |
| Safe working load according to IEC 61537 with support spacing 4.0 m (EF017268) | 400 |
