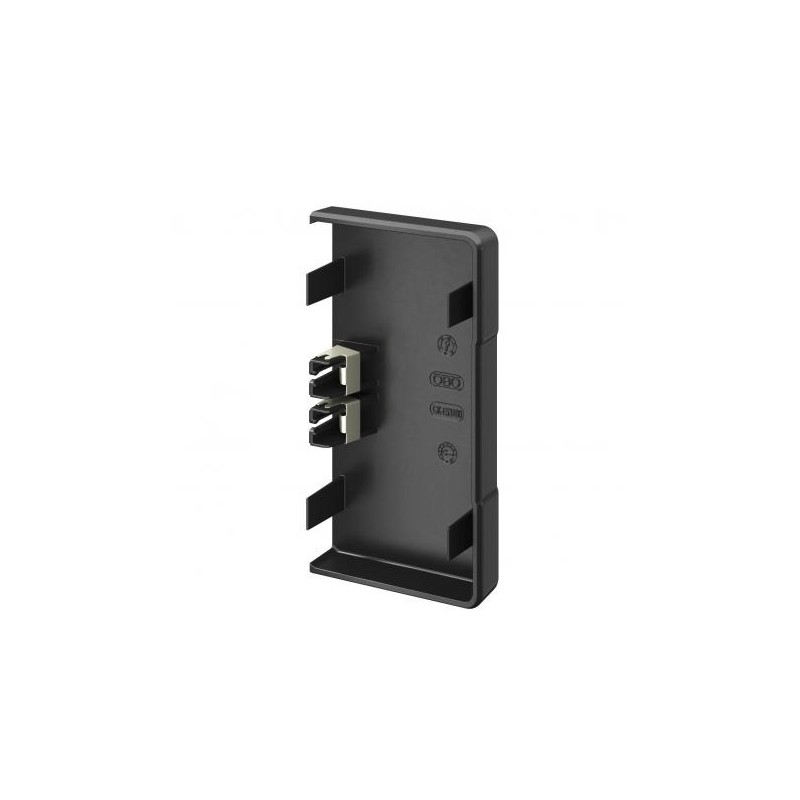

GK-E53100SW 6113113 OBO BETTERMANN GK-E53100SW end cap, for Rapid 45-2 100 106x56x22 Polycarbonate/Acrylonit..
GK-E53100SW
6113113
OBO BETTERMANN
6
GK-E53100SW end cap, for Rapid 45-2 100 106x56x22 Polycarbonate/Acrylonitrile-butadiene-styrole, PC/ABS
End piece, for device installation trunking Rapid 45-2 type GK-53100. End piece for side closing of the Rapid 45-2 GK and GA 53100 device installation trunking.
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,1966 kg CO2e / 1 Piece |
|---|---|
| Colour | Jet black; RAL 9005 |
| Cut lamination | yes |
| Dimension | 106x56x22 |
| Fastening type | Lockable |
| for duct width | 100 mm |
| for trunking height | 53 mm |
| Halogen-free | yes |
| Height | 56 mm |
| Length | 22 mm |
|---|---|
| Material | Polycarbonate/Acrylnitrile-butadiene-styrene |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -5 °C |
| Protective film | no |
| Suitable for | Left/right |
| Version for | Symmetrical |
| Width | 106 mm |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 106 mm |
| Depth (EF000049) | 56 mm |
| Model (EF000010) | Symmetric |
| Suitable for (EF000073) | Left/right |
| Joint cover (EF005253) | Yes |
| Type of fastening (EF002442) | Snap on |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | PC/ABS |
| Halogen free (EF000025) | Yes |
| Colour (EF000007) | Black |
| RAL-number (EF000116) | 9005 |
| With protective foil (EF005266) | No |
| Operating temperature (EF001742) | -5 °C |
