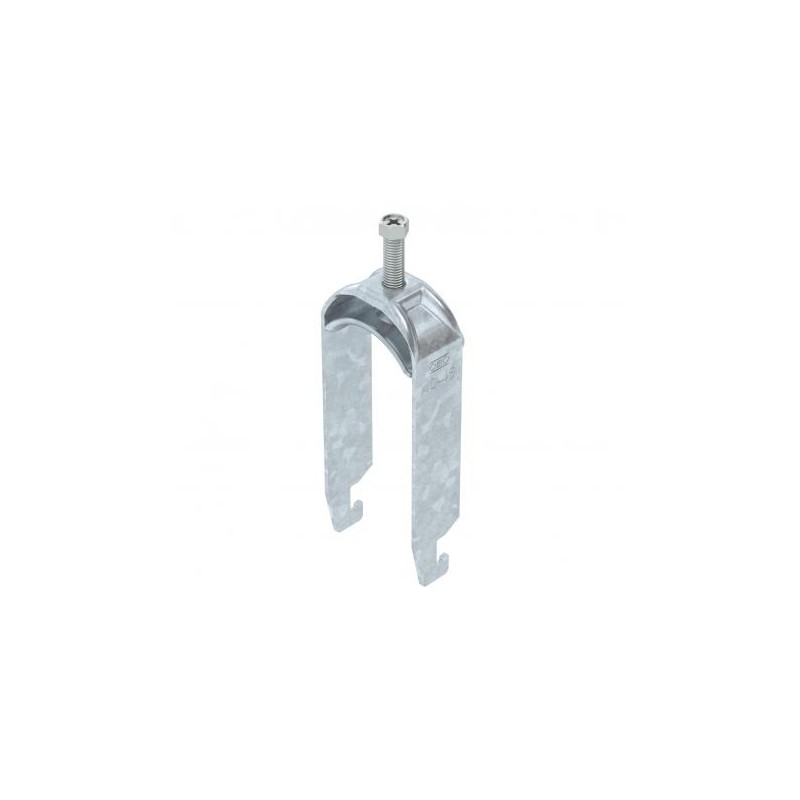

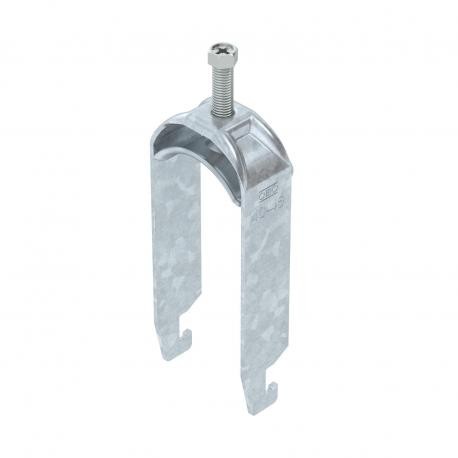

BS-U2-M-46 FT 1186543 OBO BETTERMANN Clamp on profile 2056 BS-U2-M-46 FT, double Polyvinyl chloride, PVC Ste..
BS-U2-M-46 FT
1186543
OBO BETTERMANN
50
Clamp on profile 2056 BS-U2-M-46 FT, double Polyvinyl chloride, PVC Steel, St Hot-dip galvanized, DIN EN ISO 1461
Clamp on profile 2056 BS-U2-M-46 FT, double 40-46mm Steel, St, Hot dipped galvanized, DIN EN ISO 1461
Clamp clip 2056 U-foot, 2-fold, metal pressure sleeve, FT. Clamp clip with U-foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 2 single cables on a C-profile rail. For slot width 18–22 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. Multiple cables should be separated by double sleeves. We recommend the use of a counter-sleeve.
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Clamping range D, max. | 46 mm |
|---|---|
| Clamping range D, min. | 40 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3205 kg CO2e / 1 Piece |
| Dimension | 40-46mm |
| Dimension A | 25 mm |
| Dimension B | 51 mm |
| Dimension C | 33 mm |
| Dimension G (mm) | M8 |
| Dimension H | 128 mm |
| Dimension L | 43 mm |
| Dimension t | 2 mm |
| For pipe diameter, max. | 46 mm |
| For pipe diameter, min. | 40 mm |
| for rail with slot width (with interval), max. | 22 mm |
| for rail with slot width (with interval), min. | 18 mm |
| Halogen-free | yes |
| Height | 128 mm |
| Length | 25 mm |
| Length of external dimensions | 33 mm |
|---|---|
| Maintain electrical functions | yes |
| Material | Steel |
| Material addition | Steel |
| Material of trough | Steel |
| Max. Tightening torque | 5 Nm |
| Mounting type | Profile rail |
| Number of cables/pipes | 2 |
| Plate thickness | 2 mm |
| Slot width | 10 mm |
| Surface | Hot-dip galvanised |
| Surface addition | hot galvanised |
| Thread | M8 |
| Width | 51 mm |
| With counter-trough | no |
| With metal trough | yes |
| With plastic trough | no |
| Feature Name | Feature Value |
|---|---|
| Chucking range (EF002391) | 40 mm |
| For pipe size metric (M..) (EF004713) | 46 |
| Max. number of cables (EF001052) | 2 |
| Material clamp (EF006530) | Steel |
| Surface protection clamp (EF005142) | Hot dip galvanized |
| Material shell (EF014679) | Steel |
| Surface protection shell (EF014680) | Hot dip galvanized |
| Material screw (EF006529) | Steel |
| Surface protection screw (EF005143) | Hot dip galvanized |
| With counter shell (EF014681) | No |
| Mounting method (EF000003) | Profile rail |
| Halogen free (EF000025) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
