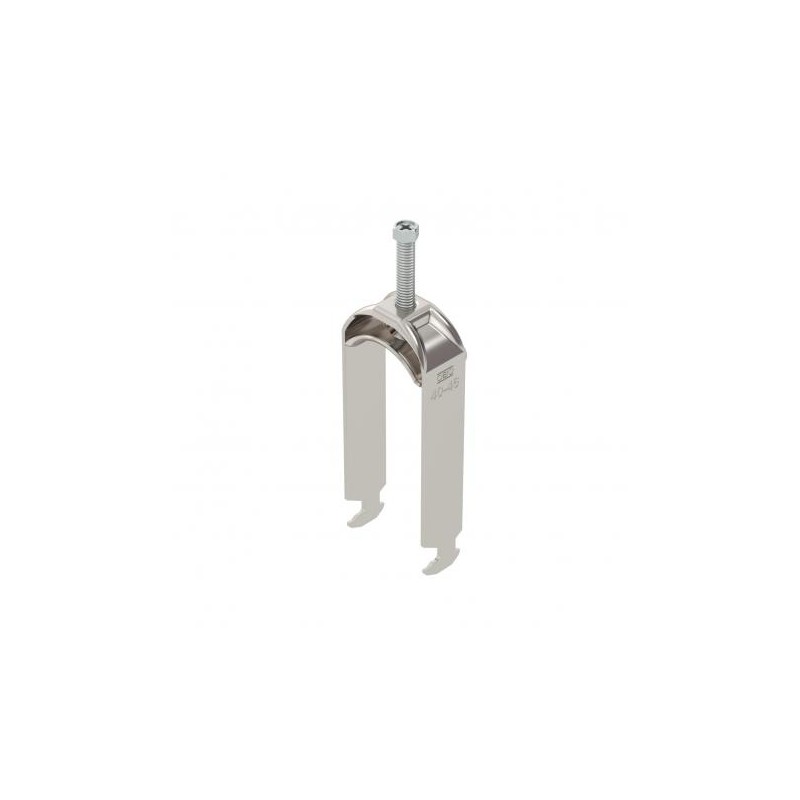

BS-H2-M-46 A2 1186143 OBO BETTERMANN Clamp on profile 2056 BS-H2-M-46 A2, double Polyamide, PA Stainless ste..
BS-H2-M-46 A2
1186143
OBO BETTERMANN
25
Clamp on profile 2056 BS-H2-M-46 A2, double Polyamide, PA Stainless steel 1.4301, A2, 1.4301 Polished, with subsequent treatment
Clamp clip 2056 H-foot, 2-fold, metal pressure sleeve, A2. Clamp clip with hammerhead foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 2 single cables on a C-profile rail. For a slot width 16–17 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. Multiple cables should be separated by double sleeves. We recommend the use of a counter-sleeve.
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Clamping range D, max. | 46 mm |
|---|---|
| Clamping range D, min. | 40 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,0558 kg CO2e / 1 Piece |
| Dimension | 40-46mm |
| Dimension A | 25 mm |
| Dimension B | 51 mm |
| Dimension C | 33 mm |
| Dimension G (mm) | M8 |
| Dimension H | 132 mm |
| Dimension L | 55 mm |
| Dimension t | 2 mm |
| For pipe diameter, max. | 46 mm |
| For pipe diameter, min. | 40 mm |
| for rail with slot width (with interval), max. | 17 mm |
| for rail with slot width (with interval), min. | 16 mm |
| Halogen-free | yes |
| Height | 132 mm |
| Length | 25 mm |
| Length of external dimensions | 33 mm |
|---|---|
| Material | Stainless steel 1.4301 |
| Material addition | Rustproof steel |
| Material of trough | Rustproof steel |
| Material quality of trough | Stainless steel 304 (1.4301) |
| Max. Tightening torque | 5 Nm |
| Mounting type | Profile rail |
| Number of cables/pipes | 2 |
| Plate thickness | 2 mm |
| Slot width | 10 mm |
| Surface | Bright, treated |
| Surface addition | Untreated |
| Thread | M8 |
| Width | 51 mm |
| With counter-trough | no |
| With metal trough | yes |
| With plastic trough | no |
| Feature Name | Feature Value |
|---|---|
| Chucking range (EF002391) | 40 mm |
| For pipe size metric (M..) (EF004713) | 46 |
| Max. number of cables (EF001052) | 2 |
| Material clamp (EF006530) | Stainless steel |
| Material quality clamp (EF014684) | Stainless steel 304 (1.4301) |
| Surface protection clamp (EF005142) | Untreated |
| Material shell (EF014679) | Stainless steel |
| Material quality shell (EF014685) | Stainless steel 304 (1.4301) |
| Surface protection shell (EF014680) | Untreated |
| Material screw (EF006529) | Stainless steel |
| Material quality screw (EF014686) | Stainless steel 304 (1.4301) |
| Surface protection screw (EF005143) | Untreated |
| With counter shell (EF014681) | No |
| Mounting method (EF000003) | Profile rail |
| Halogen free (EF000025) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
