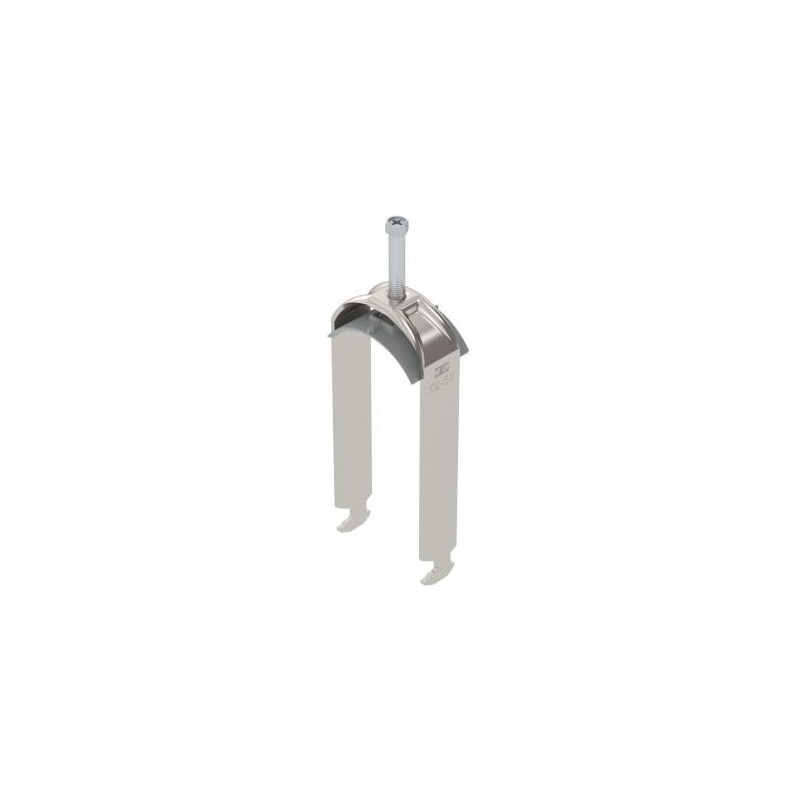

BS-H2-K-58 A2 1186357 OBO BETTERMANN Clamp on profile 2056 BS-H2-K-58 A2, double Stainless steel 1.4301, A2,..
BS-H2-K-58 A2
1186357
OBO BETTERMANN
25
Clamp on profile 2056 BS-H2-K-58 A2, double Stainless steel 1.4301, A2, 1.4301 Stainless steel 1.4301, A2, 1.4301 Polished, with post-treatment
Clamp on profile 2056 BS-H2-K-58 A2, double 52-58mm Stainless steel 1.4301, A2, 1.4301, Polished, with subsequent treatment
Clamp clip 2056 H-foot, 2-fold, plastic pressure sleeve, A2. Clamp clip with hammerhead foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 2 single cables on a C-profile rail. For a slot width 16–17 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. Multiple cables should be separated by double sleeves. We recommend the use of a counter-sleeve.
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Clamping range D, max. | 58 mm |
|---|---|
| Clamping range D, min. | 52 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,0011 kg CO2e / 1 Piece |
| Dimension | 52-58mm |
| Dimension A | 25 mm |
| Dimension B | 64 mm |
| Dimension C | 40 mm |
| Dimension G (mm) | M8 |
| Dimension H | 159 mm |
| Dimension L | 58 mm |
| Dimension t | 2,5 mm |
| For pipe diameter, max. | 58 mm |
| For pipe diameter, min. | 52 mm |
| for rail with slot width (with interval), max. | 17 mm |
| for rail with slot width (with interval), min. | 16 mm |
| Halogen-free | yes |
| Height | 159 mm |
| Length | 25 mm |
|---|---|
| Length of external dimensions | 40 mm |
| Material | Stainless steel 1.4301 |
| Material addition | Rustproof steel |
| Material of trough | Plastic |
| Material quality of trough | Polypropylene |
| Max. Tightening torque | 5 Nm |
| Mounting type | Profile rail |
| Number of cables/pipes | 2 |
| Plate thickness | 2,5 mm |
| Slot width | 10 mm |
| Surface | Bright, treated |
| Surface addition | Untreated |
| Thread | M8 |
| Width | 64 mm |
| With counter-trough | no |
| With plastic trough | yes |
| Feature Name | Feature Value |
|---|---|
| Chucking range (EF002391) | 52 mm |
| For pipe size metric (M..) (EF004713) | 58 |
| Max. number of cables (EF001052) | 2 |
| Material clamp (EF006530) | Stainless steel |
| Material quality clamp (EF014684) | Stainless steel 304 (1.4301) |
| Surface protection clamp (EF005142) | Untreated |
| Material shell (EF014679) | Plastic |
| Material quality shell (EF014685) | Polypropylene (PP) |
| Surface protection shell (EF014680) | Untreated |
| Material screw (EF006529) | Stainless steel |
| Material quality screw (EF014686) | Stainless steel 304 (1.4301) |
| Surface protection screw (EF005143) | Untreated |
| With counter shell (EF014681) | No |
| Mounting method (EF000003) | Profile rail |
| Halogen free (EF000025) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
